Fuel Pump and Sender Unit: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install, reverse the removal procedure.
  2. NOTE: Take extra care not to damage the fuel tank level sensor and float arm.
    NOTE: Use new O-Ring Seal.
    NOTE: Make sure that the seal is correctly located.

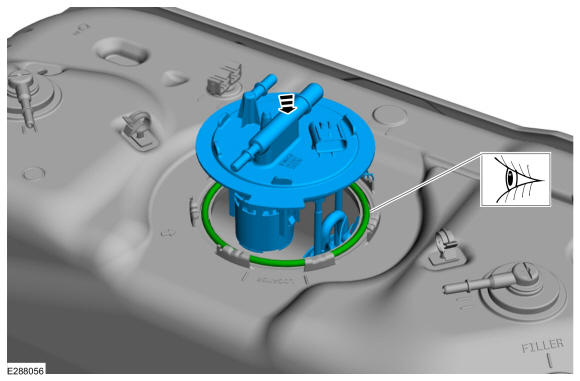

    GFD627144Courtesy of FORD MOTOR COMPANY

    3-Door

  3. NOTE: Make sure that the location marks are aligned.

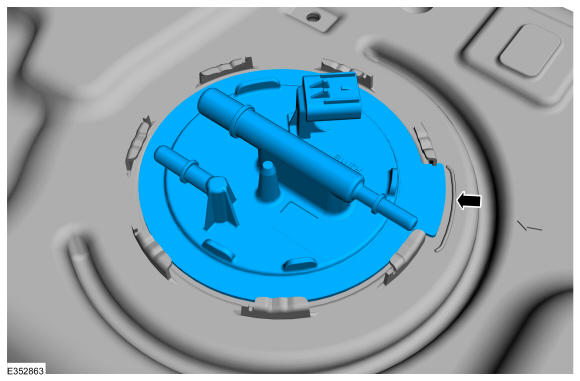

    GFD627145Courtesy of FORD MOTOR COMPANY

    5-Door

  4. NOTE: Make sure that the location marks are aligned.

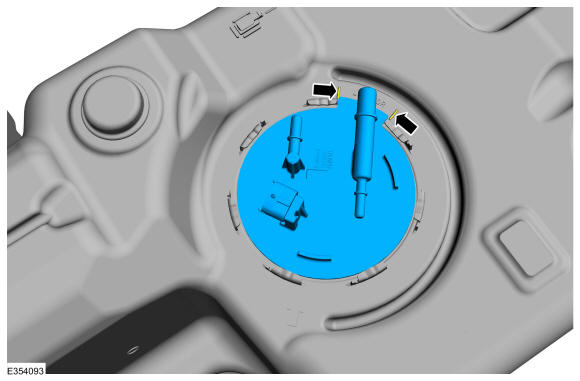

GFD627146Courtesy of FORD MOTOR COMPANY
