Fuel Level Sender: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .

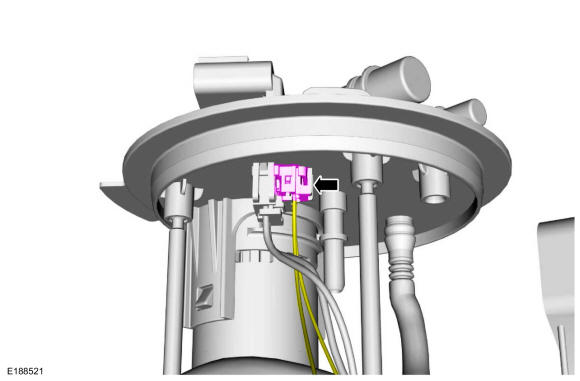

  2. Disconnect the electrical connector.
    GFD627127Courtesy of FORD MOTOR COMPANY

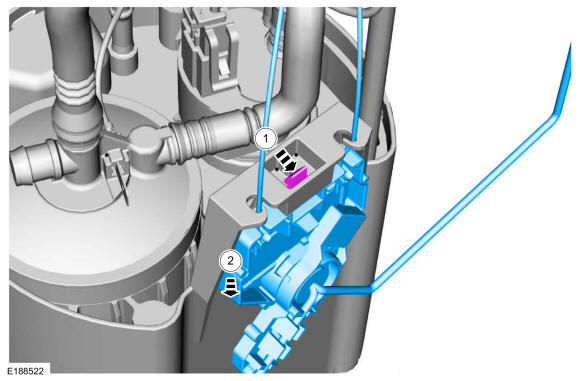

    1. Release the retainer tab.
    2. Remove the Fuel Level Sender.
GFD627128Courtesy of FORD MOTOR COMPANY
