Removal And Installation: Muffler: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
NOTE: Install new clamp if necessary.

NOTE: Make sure the location of the clamp and the tab during assembly is same as before disassembly.

Loosen the clamp.

Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: During assembly, make sure the tab is fully seated in the notch on the pipe.

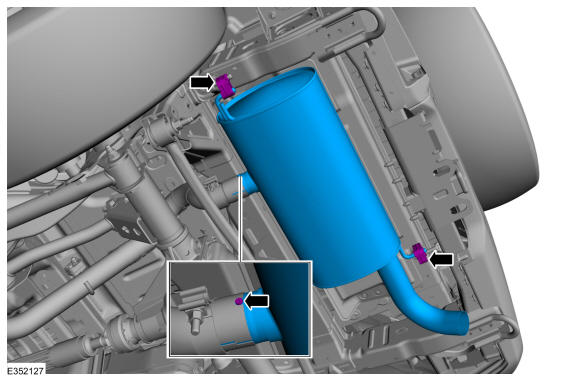

Disconnect the isolators and remove the muffler assembly.

Courtesy of FORD MOTOR COMPANY

Isolator hanger bracket

NOTE: The below following steps are only necessary, if you are replacing the isolator hanger bracket.
NOTE: This step is only required if replacing the RH muffler hanger bracket.

Remove the rear bumper. Refer to: Rear Bumper .

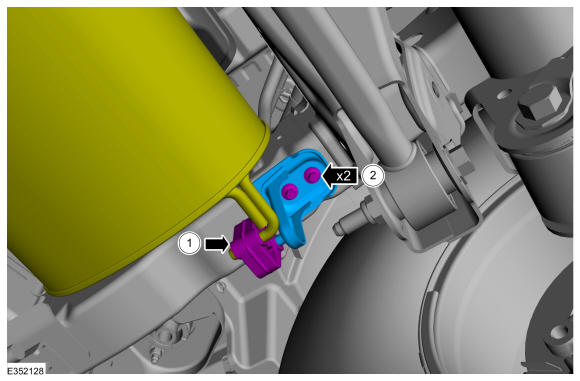

1. Disconnect the isolator.
2. Remove the bolts and the RH hanger bracket.
  Torque

  : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

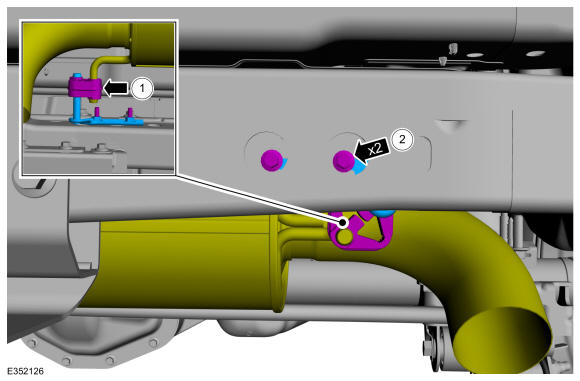

1. Disconnect the isolator.
2. Remove the bolts and the hanger bracket.
  Torque

  : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
