Catalytic Converter - 7-Speed Manual Transmission - MT88: Installation

WARNING: This page is about a different variant/trim than selected.

Clean all the exhaust connections before reassembly.
NOTE: The following step is only required if the components are being replaced with new items:

Install the heated exhaust gas oxygen sensors. Install Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Install the new studs if required.

Clean and inspect the studs.

Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new gasket is installed.

Install a new gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new catalytic converter to turbocharger nuts are installed.

NOTE: The nuts are only finger tight at this step.

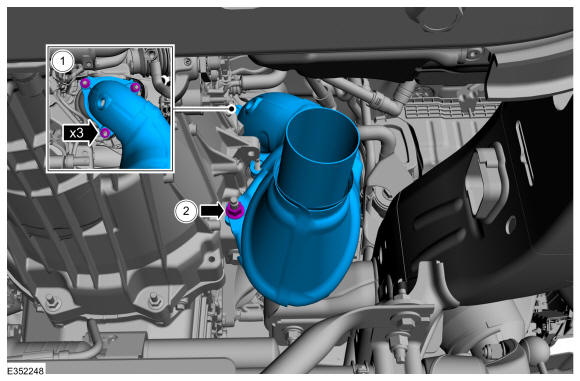

Position the catalytic converter back in the vehicle and install the nuts.

Courtesy of FORD MOTOR COMPANY
Tighten the catalytic converter to turbocharger nuts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

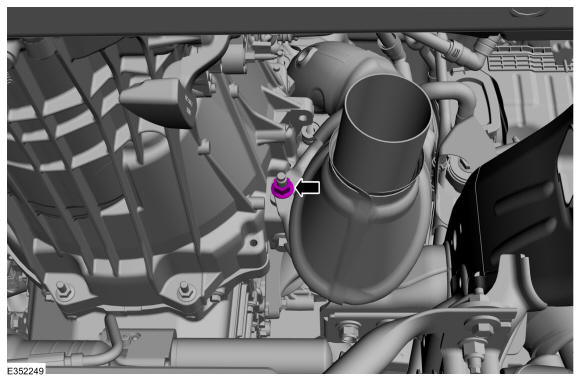

Tighten the catalytic converter hanger bracket nut.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
Check the exhaust system for leaks.
