Catalytic Converter - 10-Speed Automatic Transmission - 10R60: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: When the engine and exhaust system are hot, they can cause severe burns or injury. Turn off the engine and wait until they are cool before removing the exhaust system.

NOTE: Removal steps in this procedure may contain installation details.

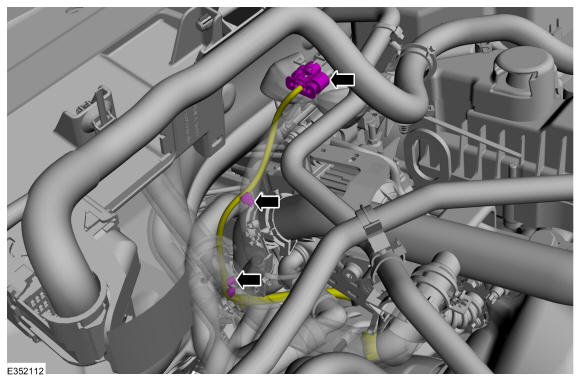

Disconnect the harness retainers and the electrical connector.

Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
Remove the exhaust flexible pipe. Refer to: Exhaust Flexible Pipe .
Remove RH side fender splash shield. Refer to: Fender Splash Shield .

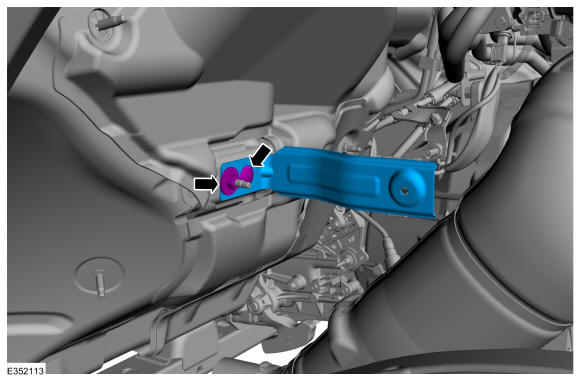

Remove the nut, push pin and the bracket.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

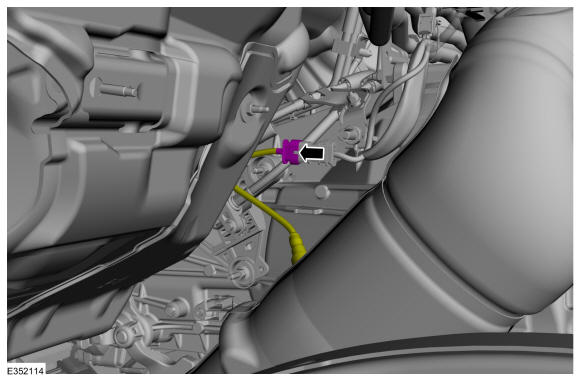

Disconnect and position aside the electrical connector.

Courtesy of FORD MOTOR COMPANY

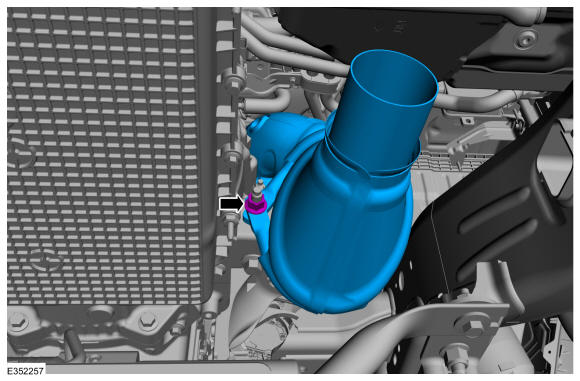

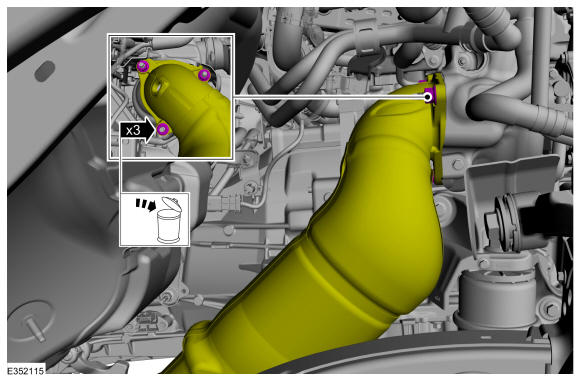

Remove and discard the catalytic converter to turbocharger nuts.

Courtesy of FORD MOTOR COMPANY

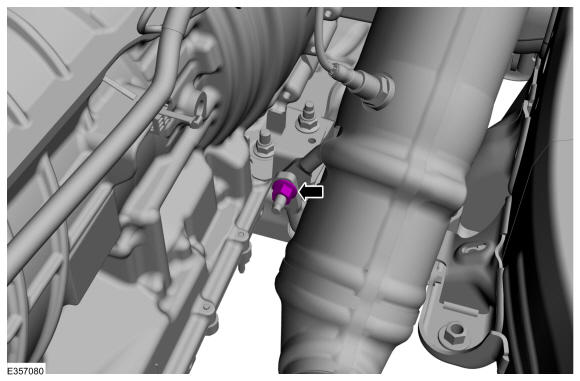

Remove the catalytic converter hanger bracket nut, and then carefully remove the catalytic converter.

Courtesy of FORD MOTOR COMPANY

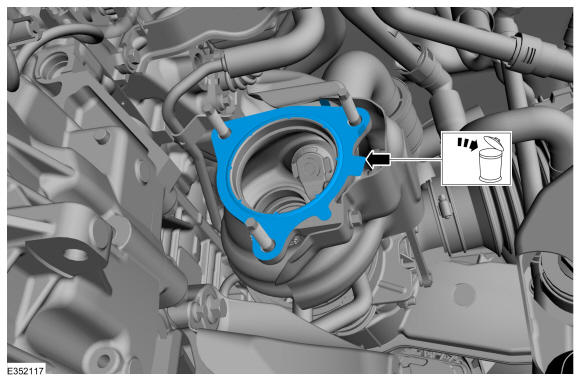

Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The following step is only required if the components are being replaced with new items:

Remove the heated exhaust gas oxygen sensors. Install Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Courtesy of FORD MOTOR COMPANY

Brace Bracket

NOTE: The below following steps are only necessary, if you are replacing the exhaust hot end brace bracket.

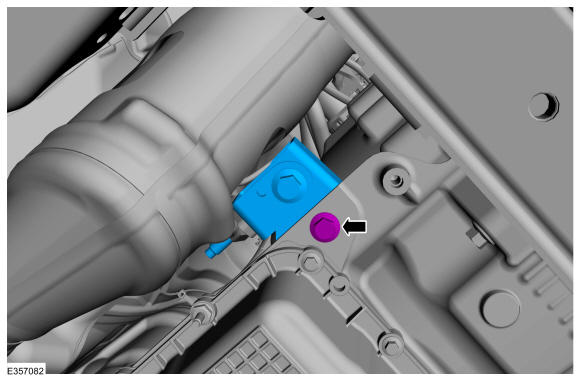

Remove the nut.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Loosen the bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

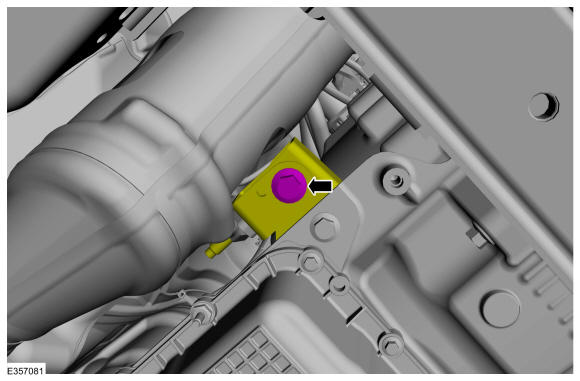

Remove the bolt and the brace bracket.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
