Exhaust assembly-3 Door
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

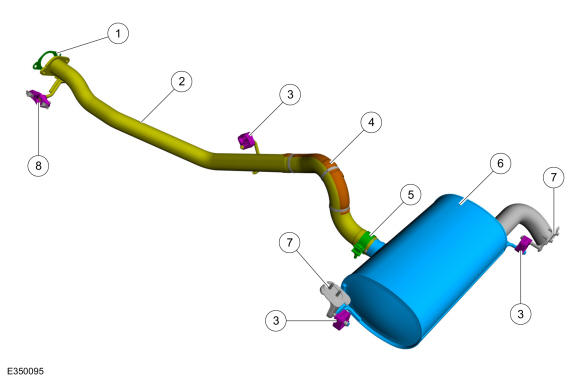

Exhaust assembly-3 Door
| Item |
Description |
| 1 |
Gasket |
| 2 |
Muffler inlet pipe |
| 3 |
Isolators |
| 4 |
Heat shield |
| 5 |
Clamp |
| 6 |
Muffler |
| 7 |
Bracket |
| 8 |
Hanger bracket |
