Starter Motor: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery. Refer to: Battery Disconnect and Connect .
Remove the LH fender splash shield. Refer to: Fender Splash Shield .
Remove the steering column lower shaft. Refer to: Steering Column Lower Shaft .

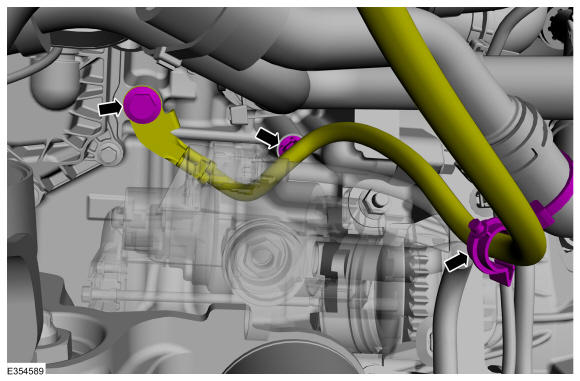

Remove the ground wire bolt from the LH side of block and position aside the wiring harness.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

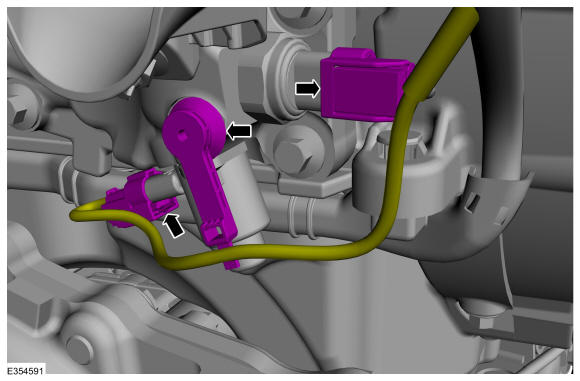

Disconnect the block heater electrical connector and wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

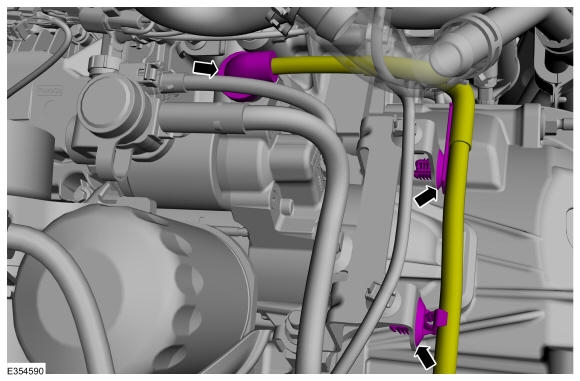

- Disconnect the electrical connectors.
- Detach the wiring harness retainers.
- Position aside the wiring harness.
Courtesy of FORD MOTOR COMPANY

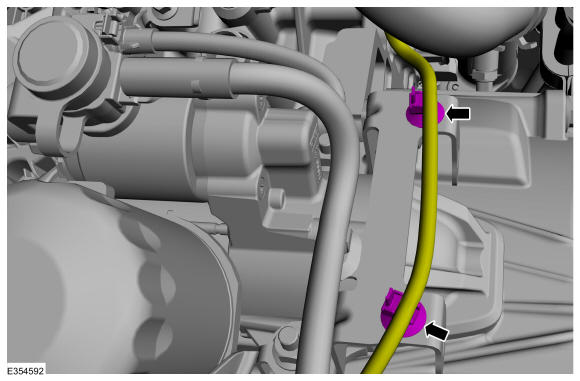

- Detach the wiring harness retainers.
- Position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY

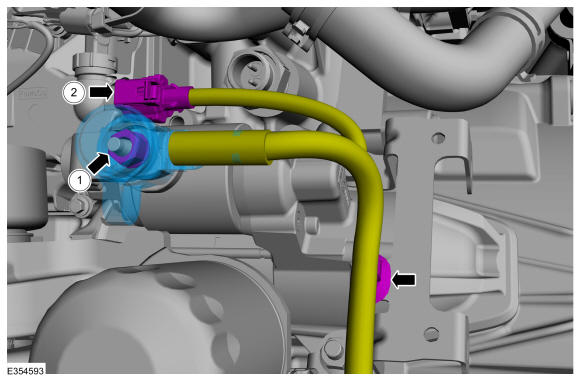

1. Remove the cover, then remove the nut.
  Torque: 106 lb.in (12 Nm)
2. Disconnect the electrical connector and retainer.
Courtesy of FORD MOTOR COMPANY

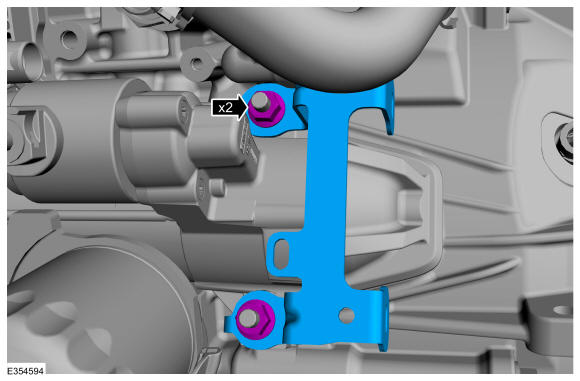

Remove the starter motor bracket nuts then remove the bracket.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

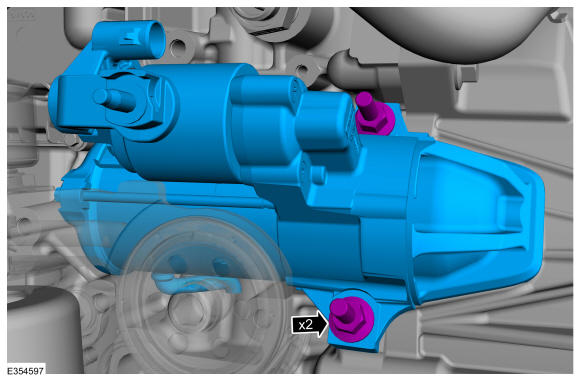

Remove the starter motor studbolts, then remove the starter motor.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the starter motor drive gear and the flexplate or flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
