Turbocharger Bypass Valve: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

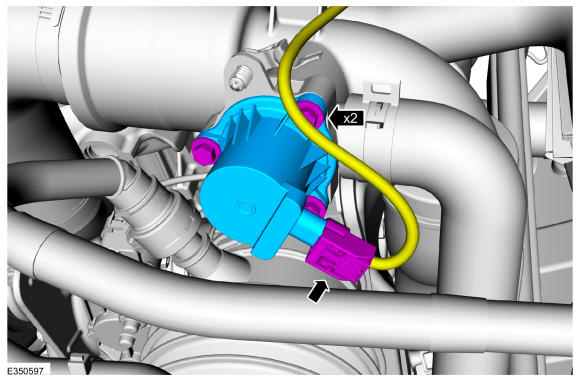

  1. Disconnect the electrical connector. Remove the bolts and the turbocharger bypass valve.

    Torque: 53 lb.in (6 Nm)

GFD625790Courtesy of FORD MOTOR COMPANY
