Powertrain Control Module (PCM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming

(418-01A Module Configuration, General Procedures). Use the General Equipment: Ford Diagnostic Equipment

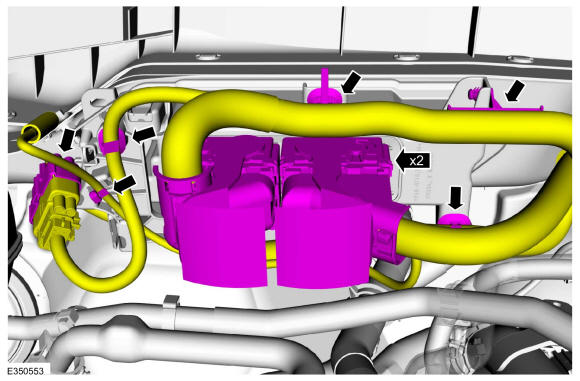

Disconnect the electrical connectors and harness retainers.

Courtesy of FORD MOTOR COMPANY

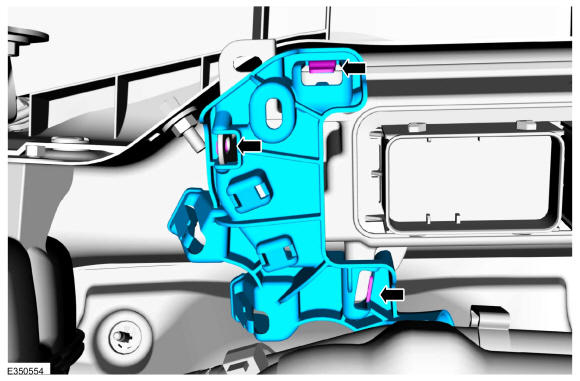

Remove the harness routing bracket.

Courtesy of FORD MOTOR COMPANY

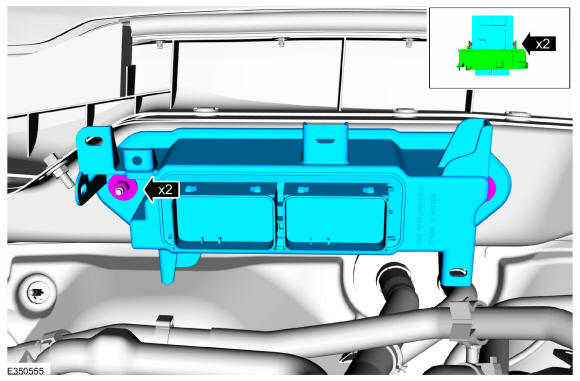

Remove the nuts and the PCM. Remove the PCM from the bracket.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
