Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

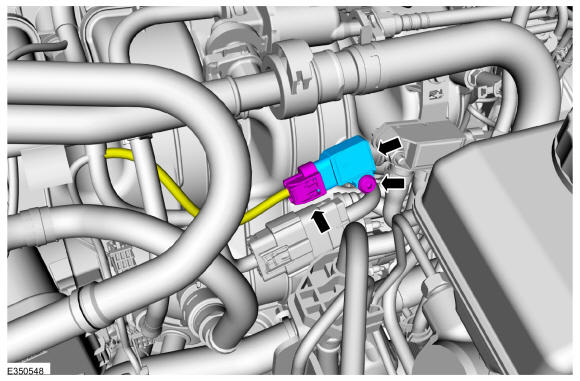

- Disconnect the electrical connector. Remove the retainer and the MAPT sensor.
Torque: 53 lb.in (6 Nm)
 Courtesy of FORD MOTOR COMPANY
|
