Intake Air Temperature (IAT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

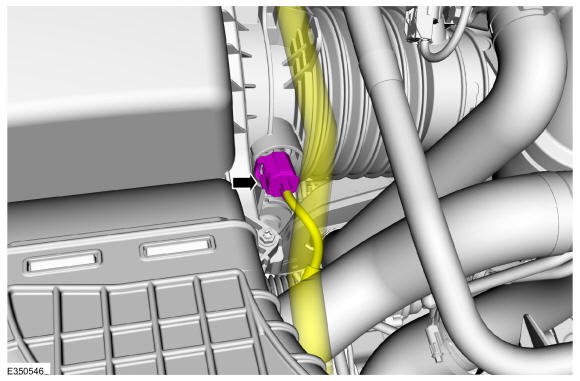

  1. Disconnect the IAT electrical connector.
    GFD625782Courtesy of FORD MOTOR COMPANY

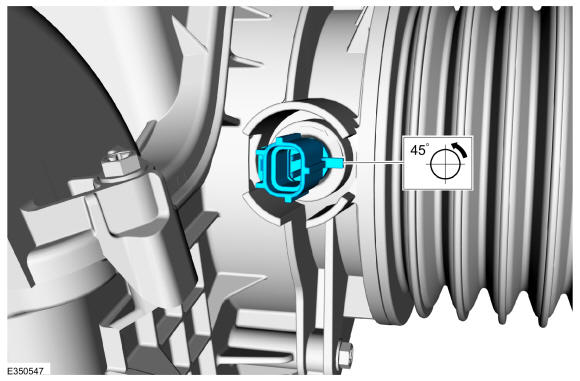

  2. Remove the IAT sensor.
GFD625783Courtesy of FORD MOTOR COMPANY
