Heated Oxygen Sensor (HO2S): Installation
WARNING: This page is about a different variant/trim than selected.
- To install, reverse the removal procedure.

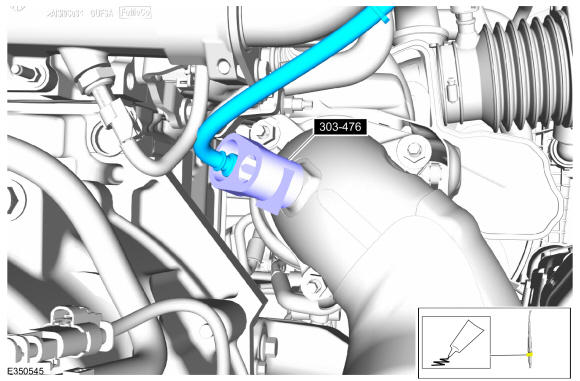

- Apply anti-seize to thread of sensor, using special tool install the HO2S. Connect the harness retainers and the electrical connector. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2
Torque: 35 lb.ft (48 Nm)
