Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground. Refer to: Battery Disconnect and Connect .

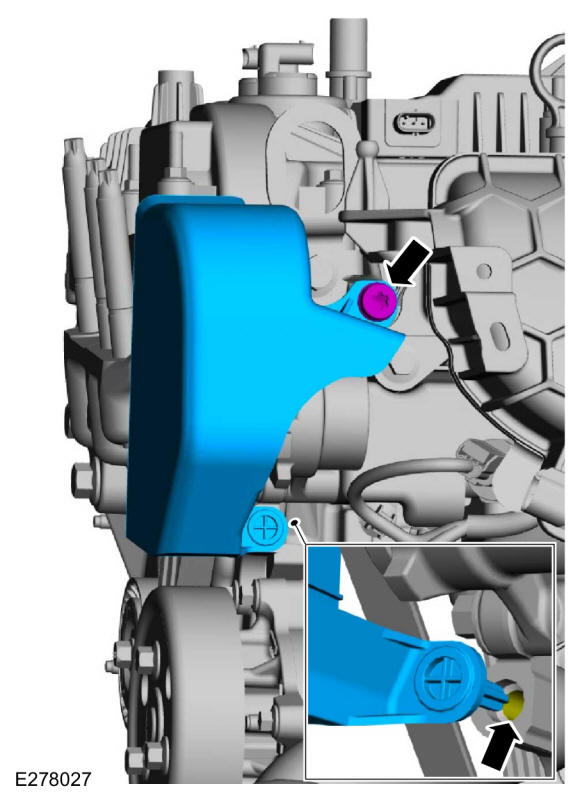

- Remove the bolt and shield.
Torque: 18 lb.ft (25 Nm)

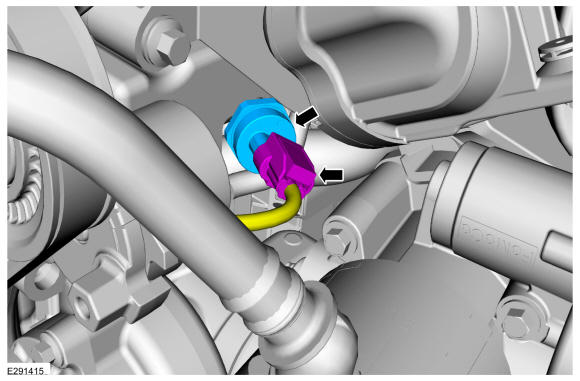

- Disconnect the electrical connector and remove the FRP sensor.
Torque: 24 lb.ft (33 Nm)
