Engine Oil Pressure (EOP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
- Remove the LH fender splash shield. Refer to: Fender Splash Shield .
-
NOTE: Do not re-use the engine oil pressure (EOP) sensor if it has been removed.

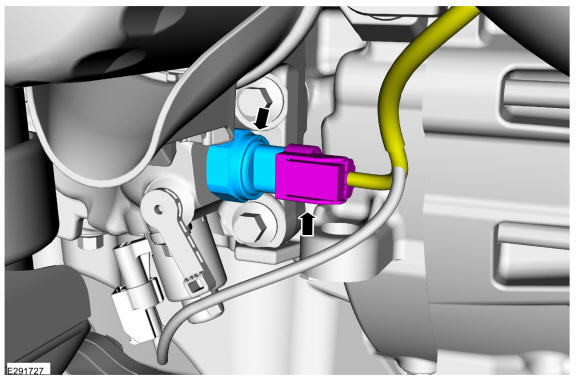

Disconnect the electrical connector. Remove the EOP sensor.
Torque: 102 lb.in (11.5 Nm)
