Engine Coolant Temperature (ECT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the RH fender splash shield. Refer to: Fender Splash Shield .

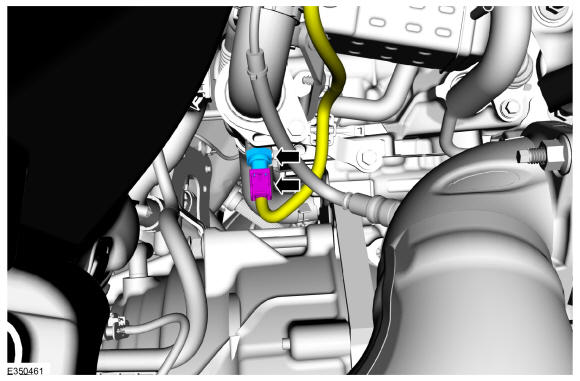

- Disconnect the electrical connector and remove the ECT sensor.
Torque: 106 lb.in (12 Nm)
