Cylinder Head Temperature 2 (CHT2) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

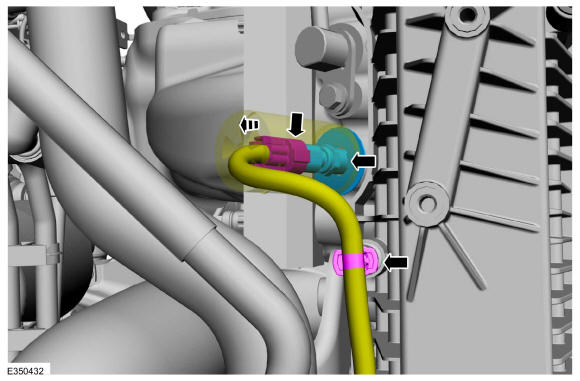

    • Position aside the cover and disconnect the harness retainer and electrical connector. Remove the cylinder head temperature 2 (CHT2) sensor and heat shield.

      Torque: 97 lb.in (11 Nm)

GFD625774Courtesy of FORD MOTOR COMPANY
