Crankshaft Position (CKP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

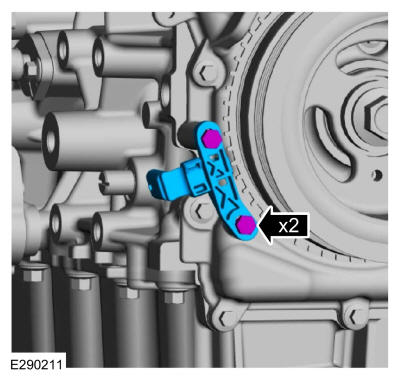

NOTE: Do not tighten the CKP sensor bolts at this time.

Install the CKP sensor and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

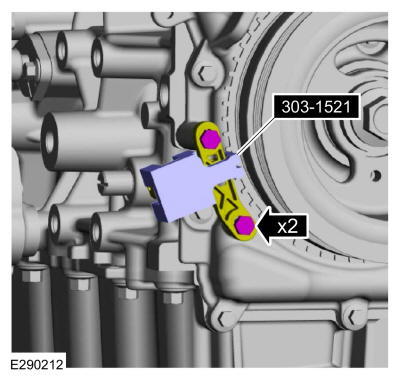

Install the special tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Tighten the CKP sensor bolts. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

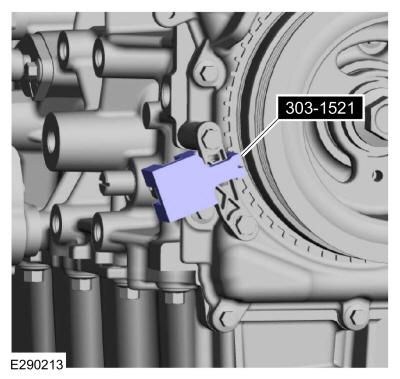

Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

Courtesy of FORD MOTOR COMPANY

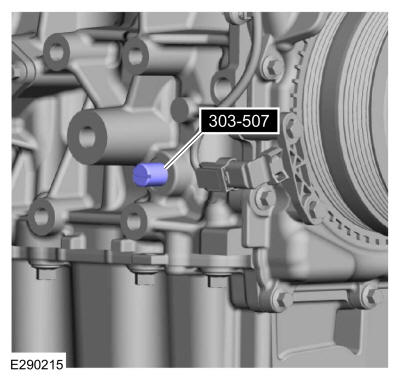

Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY

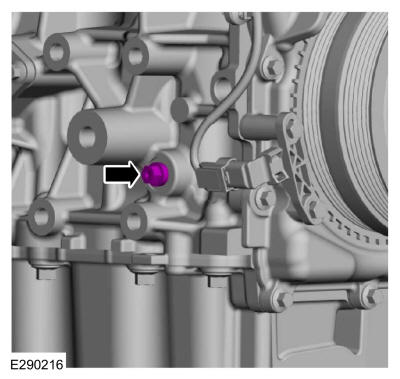

Install the engine plug bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

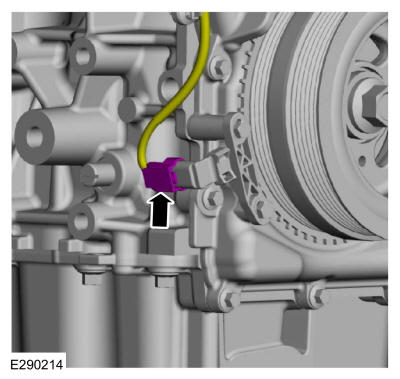

Connect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the engine front undershield. Refer to: Engine Front Undershield .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
