Camshaft Position (CMP) Sensor: Removal

Exhaust Camshaft Position (CMP) Sensor

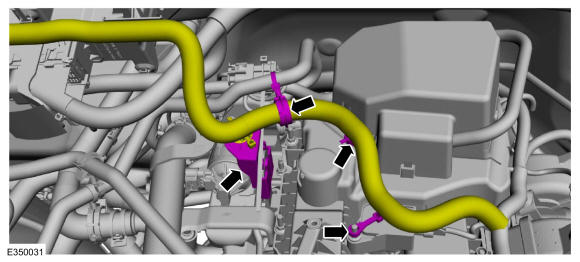

1. • Detach the wiring harness retainer from the rear engine lift eye.
   • Detach the wiring harness retainers and position aside.

   Courtesy of FORD MOTOR COMPANY

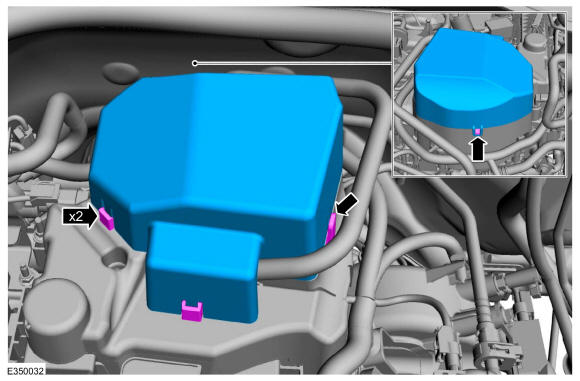

2. Release the tabs and remove the upper plastic and foam high-pressure fuel pump cover.

   Courtesy of FORD MOTOR COMPANY

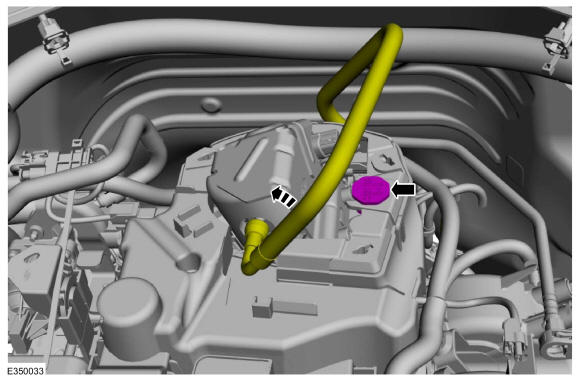

3. Remove the lower plastic and foam high-pressure fuel pump cover retainer and position the fuel tube up.

   Courtesy of FORD MOTOR COMPANY

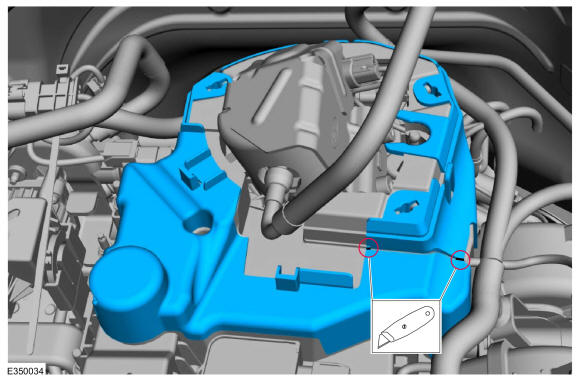

4. Using a knife, cut the lower plastic high-pressure fuel pump cover at the two positions shown and remove the lower plastic high-pressure fuel pump cover. Use the General Equipment: Knife

   Courtesy of FORD MOTOR COMPANY

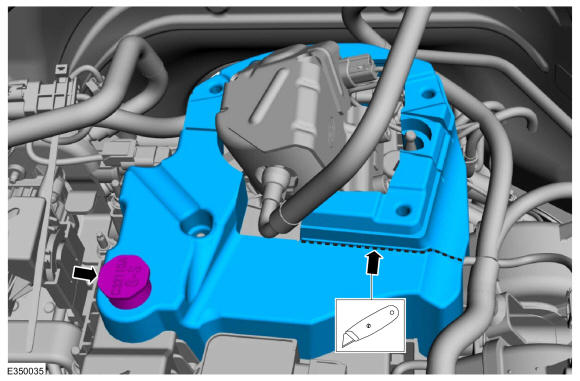

5. • Remove the lower foam high-pressure fuel pump cover retainer.
   • Using a knife, cut the lower foam high-pressure fuel pump cover at the position shown and remove. Use the General Equipment: Knife

   Courtesy of FORD MOTOR COMPANY

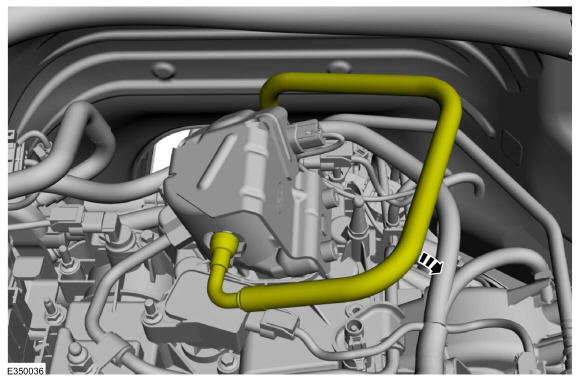

6. Position the fuel tube down.

   Courtesy of FORD MOTOR COMPANY

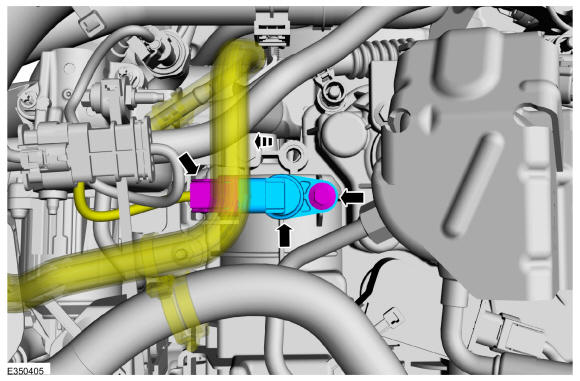

7. • Disconnect the electrical connector and position aside the tube. Remove the bolt and the exhaust CMP sensor.

     Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

   Intake Camshaft Position (CMP) Sensor

8. • Detach the wiring harness retainer from the rear engine lift eye.
   • Detach the wiring harness retainers and position aside.

   Courtesy of FORD MOTOR COMPANY

9. Release the tabs and remove the upper plastic and foam high-pressure fuel pump cover.

   Courtesy of FORD MOTOR COMPANY

10. Remove the lower plastic and foam high-pressure fuel pump cover retainer and position the fuel tube up.

    Courtesy of FORD MOTOR COMPANY

11. Using a knife, cut the lower plastic high-pressure fuel pump cover at the two positions shown and remove the lower plastic high-pressure fuel pump cover. Use the General Equipment: Knife

    Courtesy of FORD MOTOR COMPANY

12. • Remove the lower foam high-pressure fuel pump cover retainer.
    • Using a knife, cut the lower foam high-pressure fuel pump cover at the position shown and remove. Use the General Equipment: Knife

    Courtesy of FORD MOTOR COMPANY

13. Position the fuel tube down.

    Courtesy of FORD MOTOR COMPANY

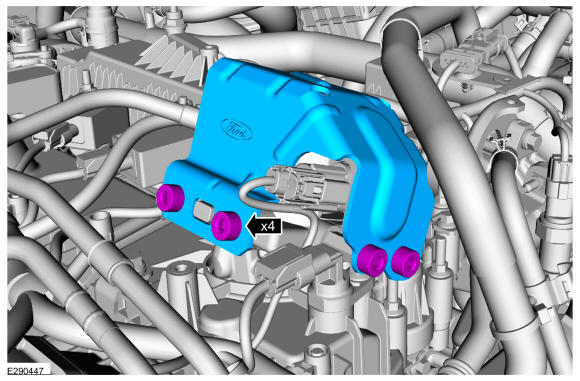

14. Remove the high-pressure fuel pump bracket bolts, then remove the bracket.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

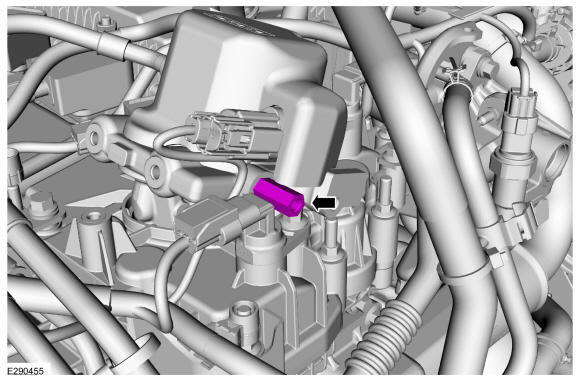

15. Remove the high-pressure fuel pump bracket nut.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

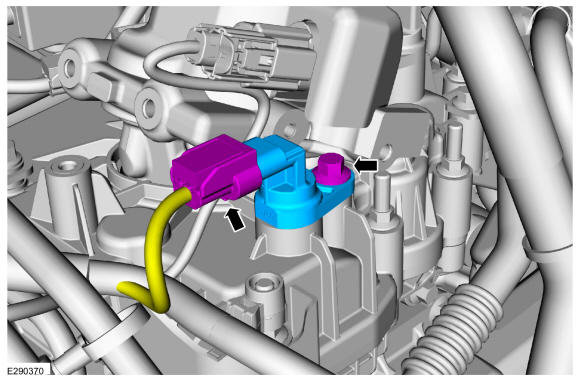

16. Disconnect the electrical connector. Remove the bolt and the intake CMP sensor.

    Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
