Boost Pressure Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
NOTE:
Removal steps in this procedure may contain installation details.

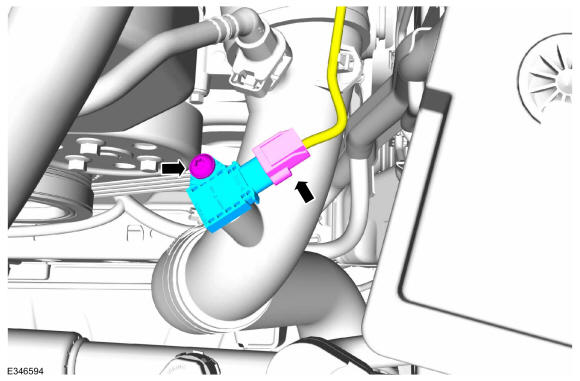

- Disconnect the electrical connector. Remove the retainer and the turbocharger boost pressure sensor.
Torque: 53 lb.in (6 Nm)
