Crankshaft End Play

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

1. NOTE: Refer to the appropriate Engine service information for the specification.
   1. Position the crankshaft to the rear of the cylinder block.

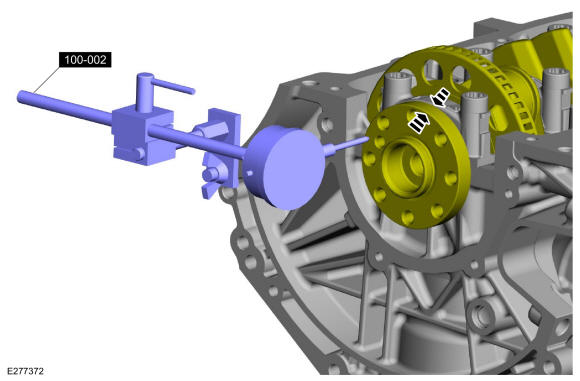

   2. Zero the Dial Indicator Gauge with Holding Fixture.Dial Indicator
   3. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
   4. If the crankshaft end play exceeds the specified range, install new parts as necessary.
