Power Distribution/BCM

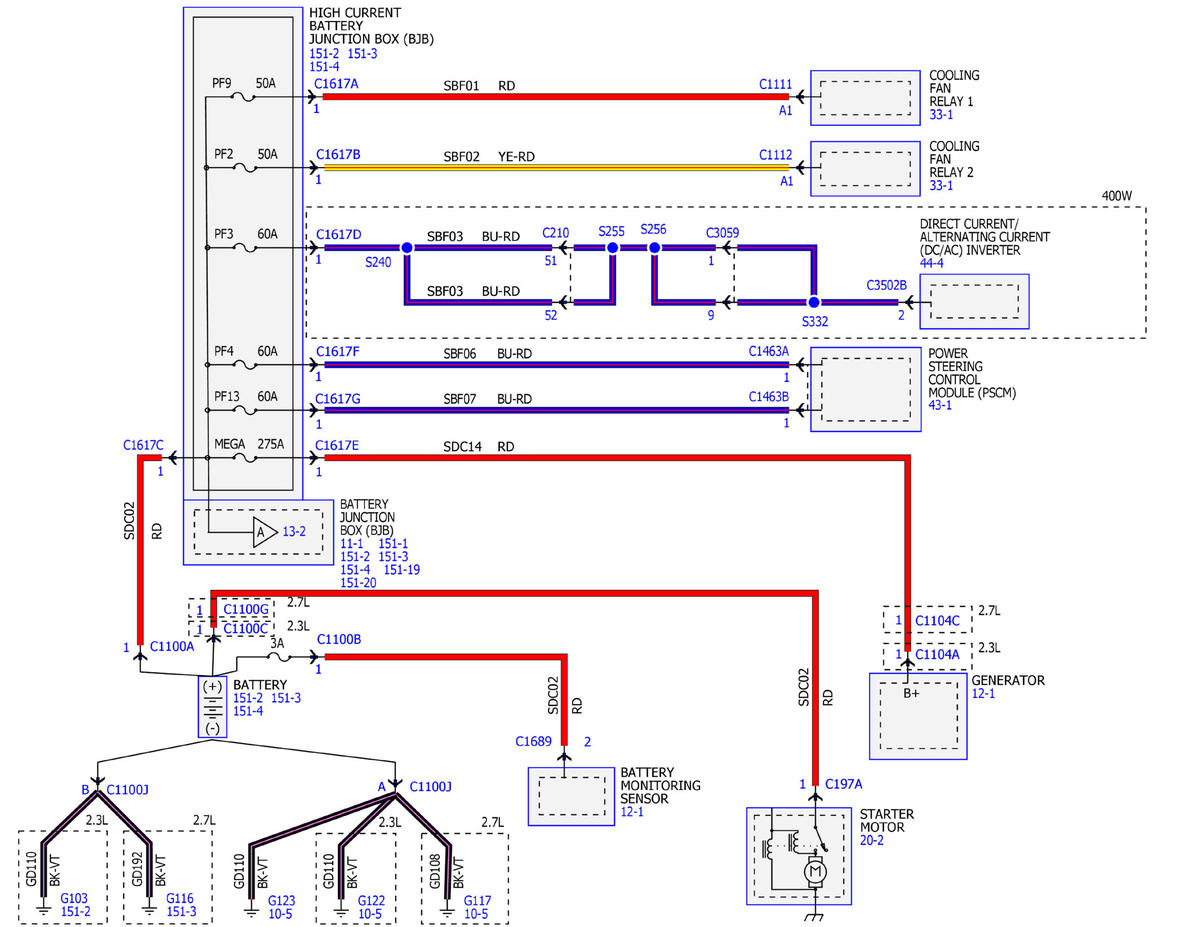

Fig 1: Power Distribution/BCM Wiring Diagrams (1 Of 34)

GFDWR151804

Courtesy of FORD MOTOR COMPANY

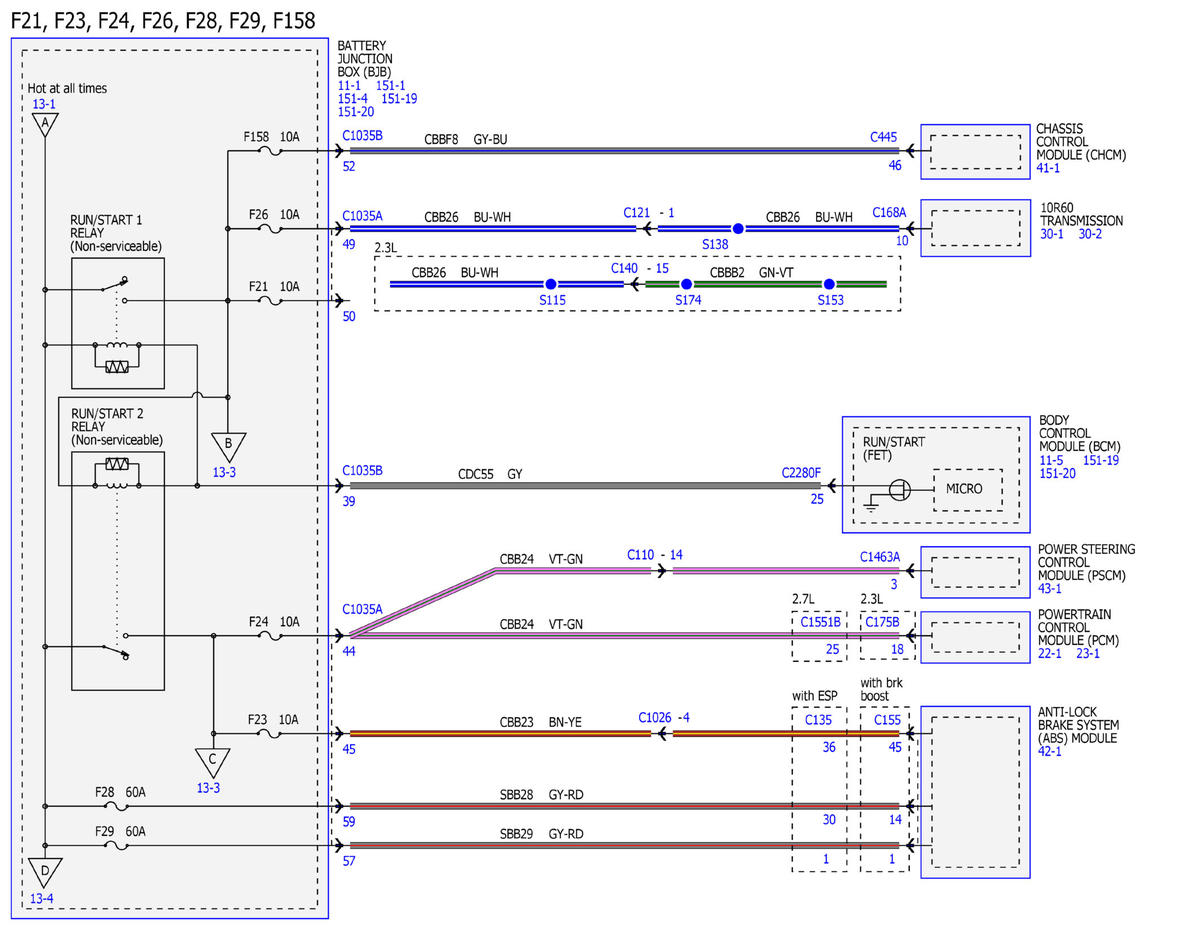

Fig 2: Power Distribution/BCM Wiring Diagrams (2 Of 34)

GFDWR151815

Courtesy of FORD MOTOR COMPANY

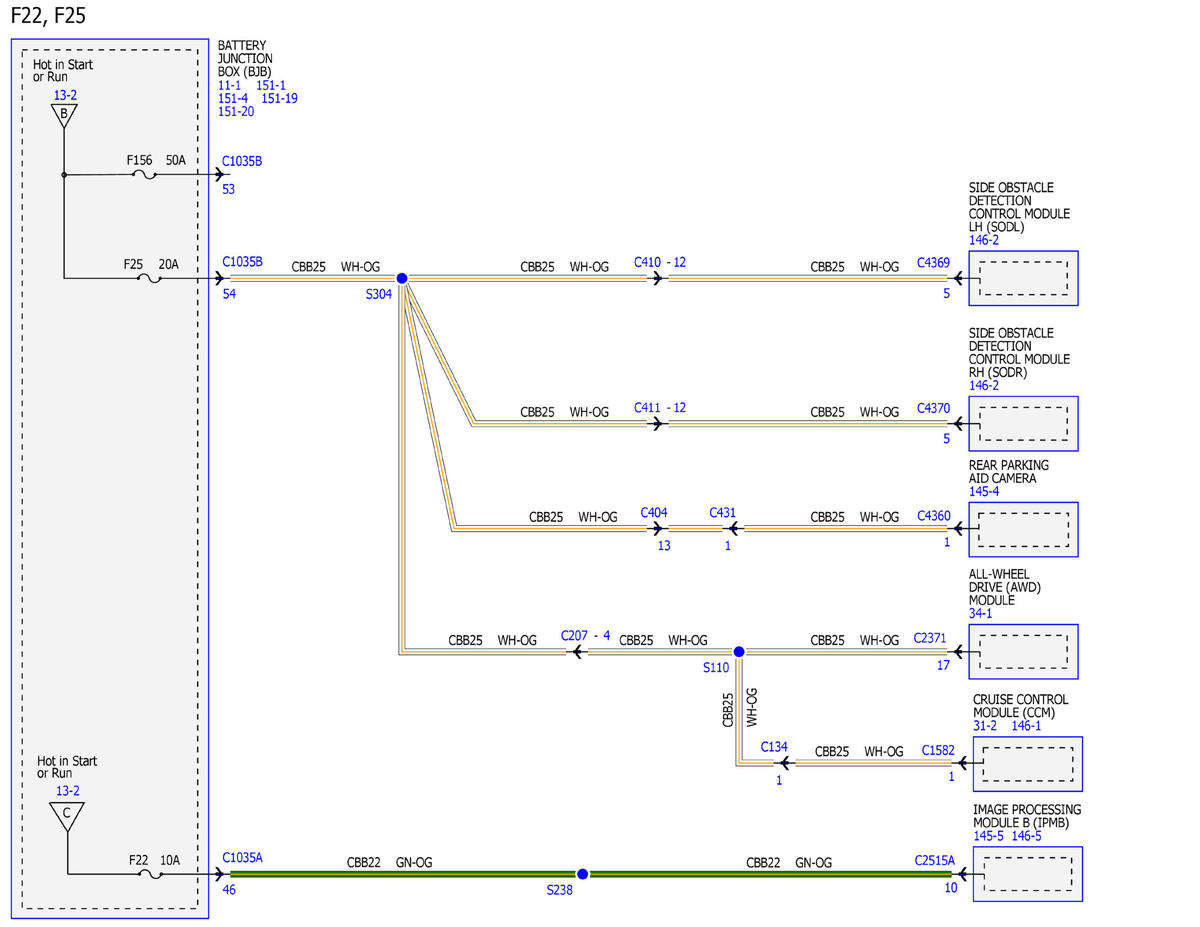

Fig 3: Power Distribution/BCM Wiring Diagrams (3 Of 34)

GFDWR151826

Courtesy of FORD MOTOR COMPANY

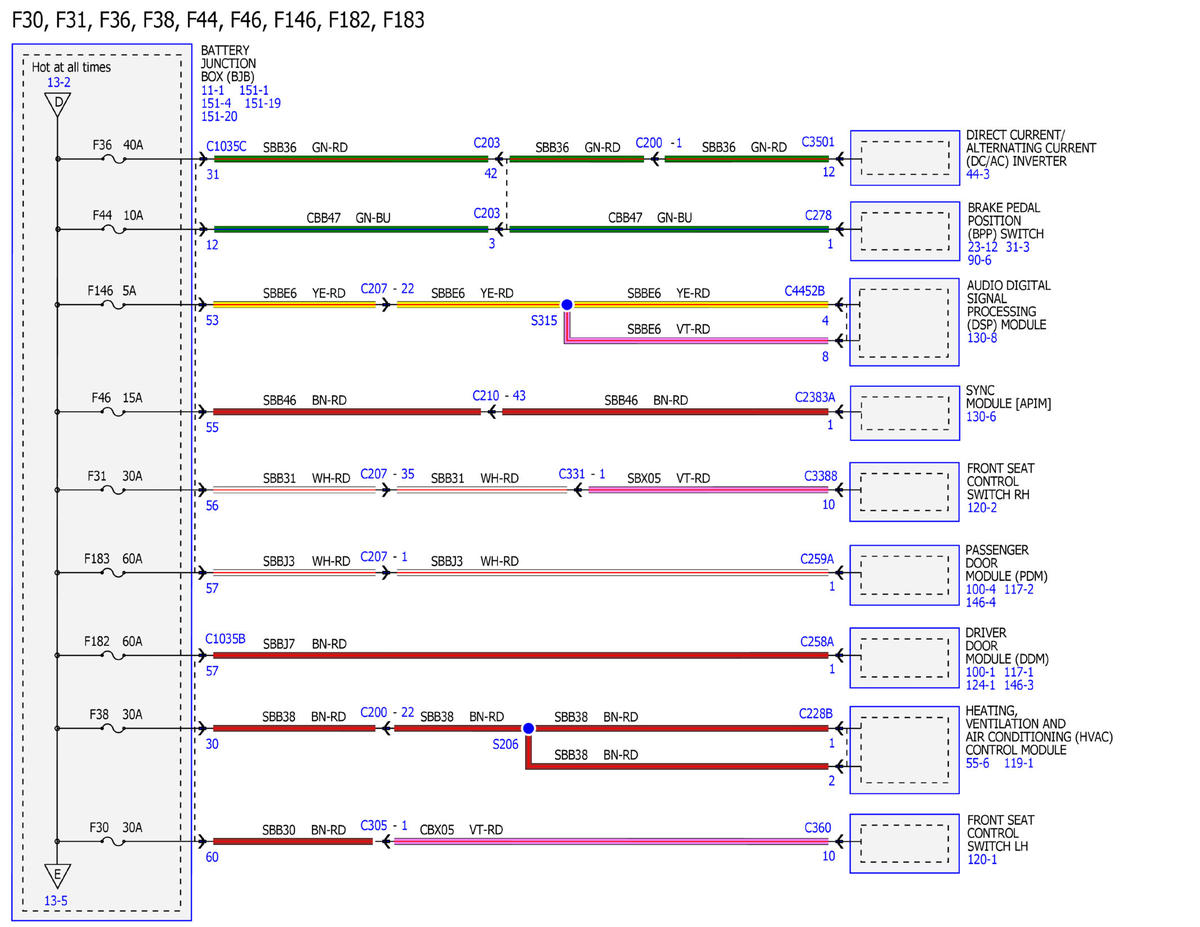

Fig 4: Power Distribution/BCM Wiring Diagrams (4 Of 34)

GFDWR151832

Courtesy of FORD MOTOR COMPANY

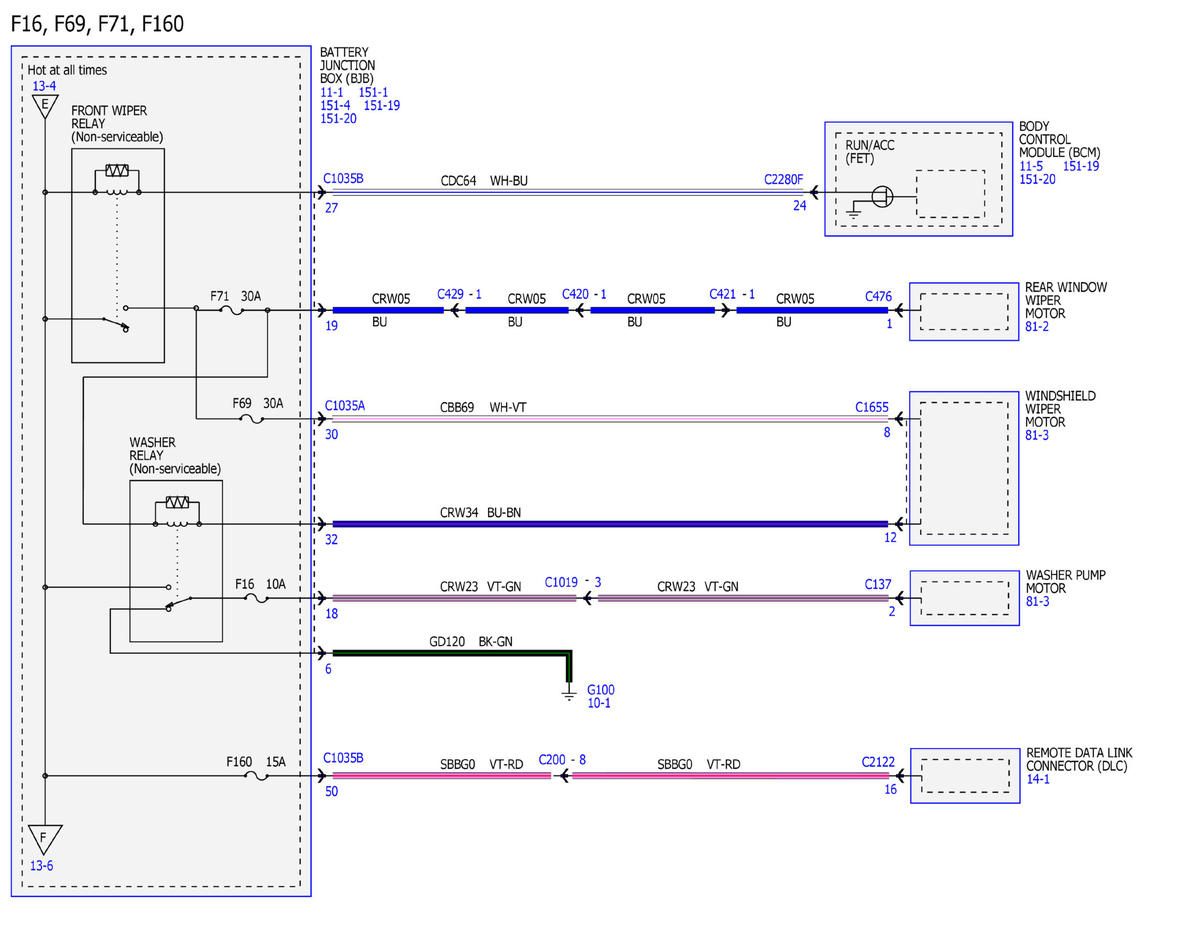

Fig 5: Power Distribution/BCM Wiring Diagrams (5 Of 34)

GFDWR151833

Courtesy of FORD MOTOR COMPANY

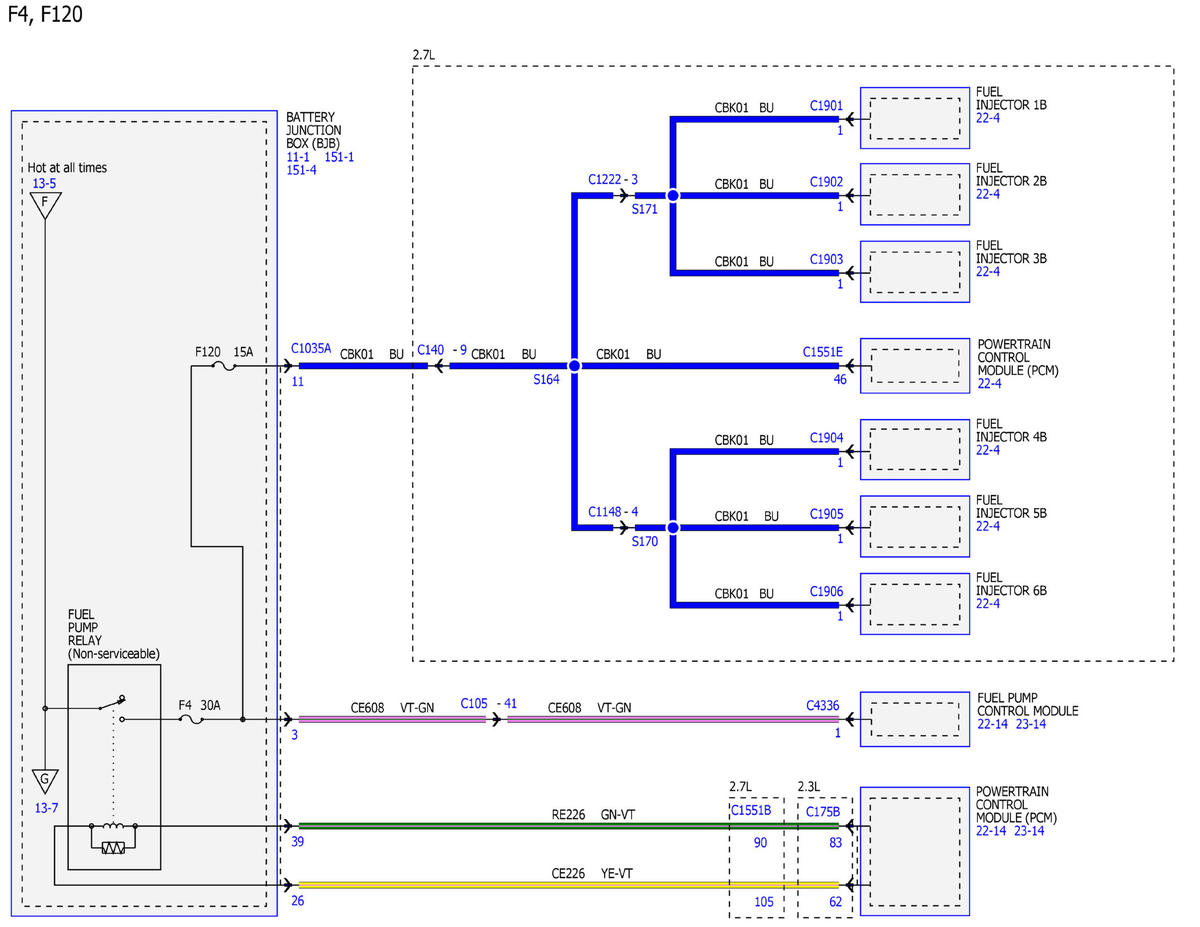

Fig 6: Power Distribution/BCM Wiring Diagrams (6 Of 34)

GFDWR151834

Courtesy of FORD MOTOR COMPANY

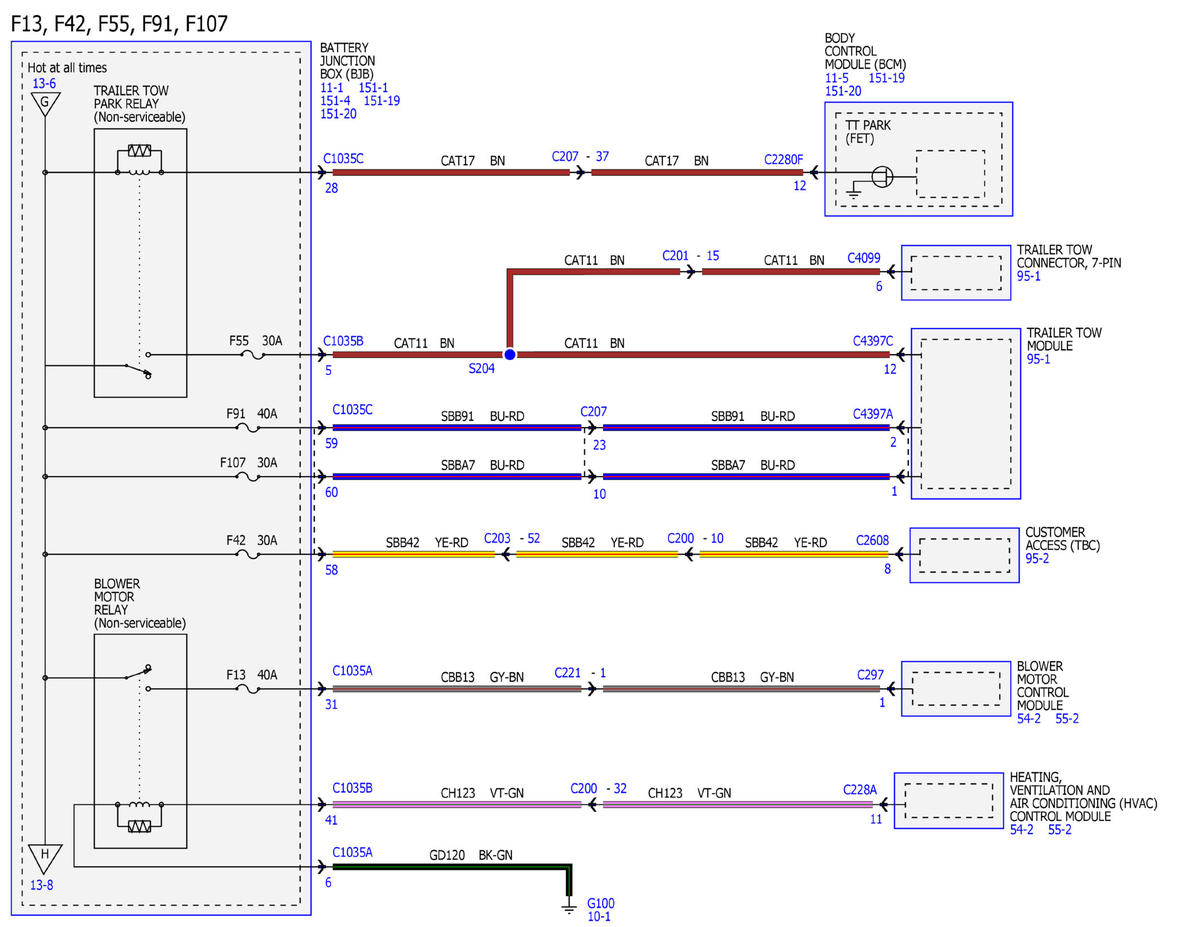

Fig 7: Power Distribution/BCM Wiring Diagrams (7 Of 34)

GFDWR151835

Courtesy of FORD MOTOR COMPANY

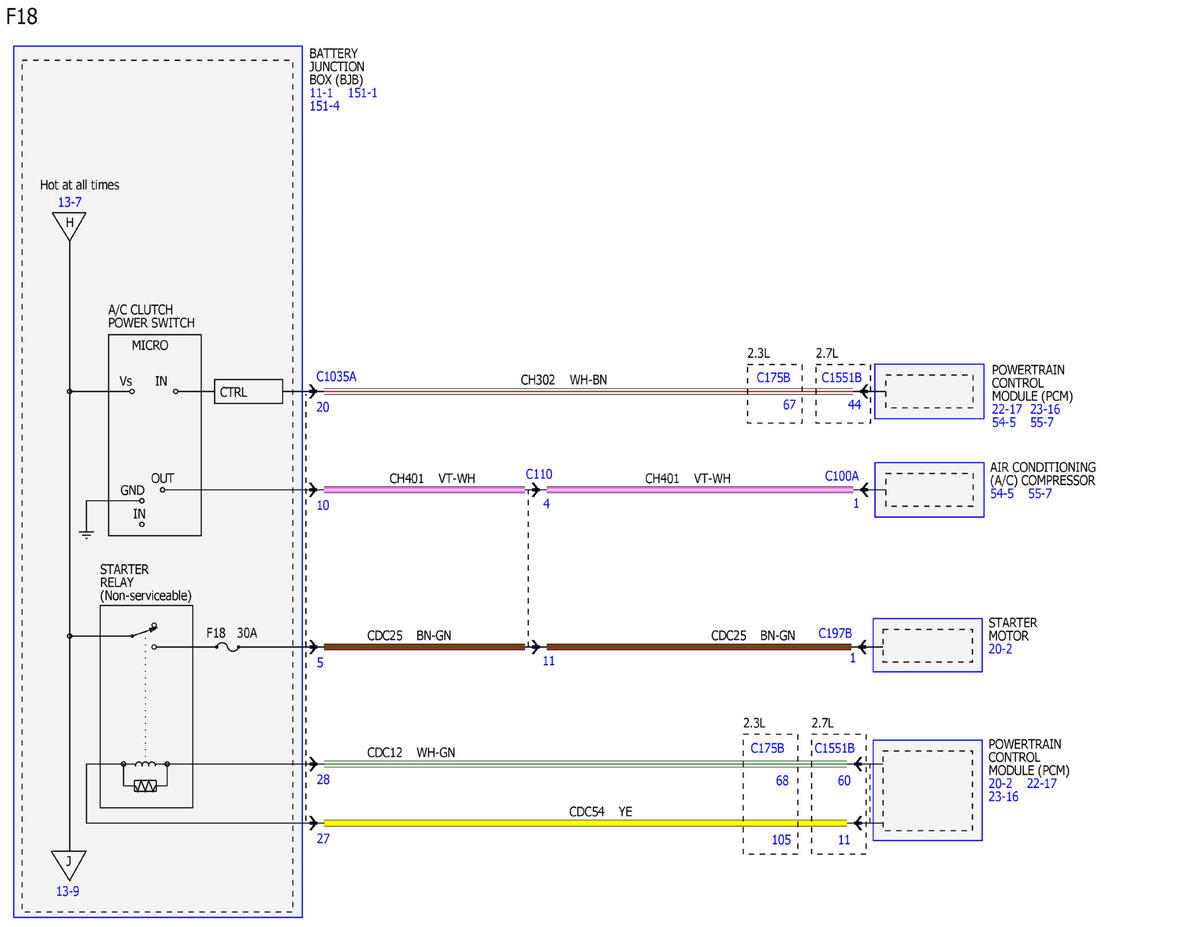

Fig 8: Power Distribution/BCM Wiring Diagrams (8 Of 34)

GFDWR151836

Courtesy of FORD MOTOR COMPANY

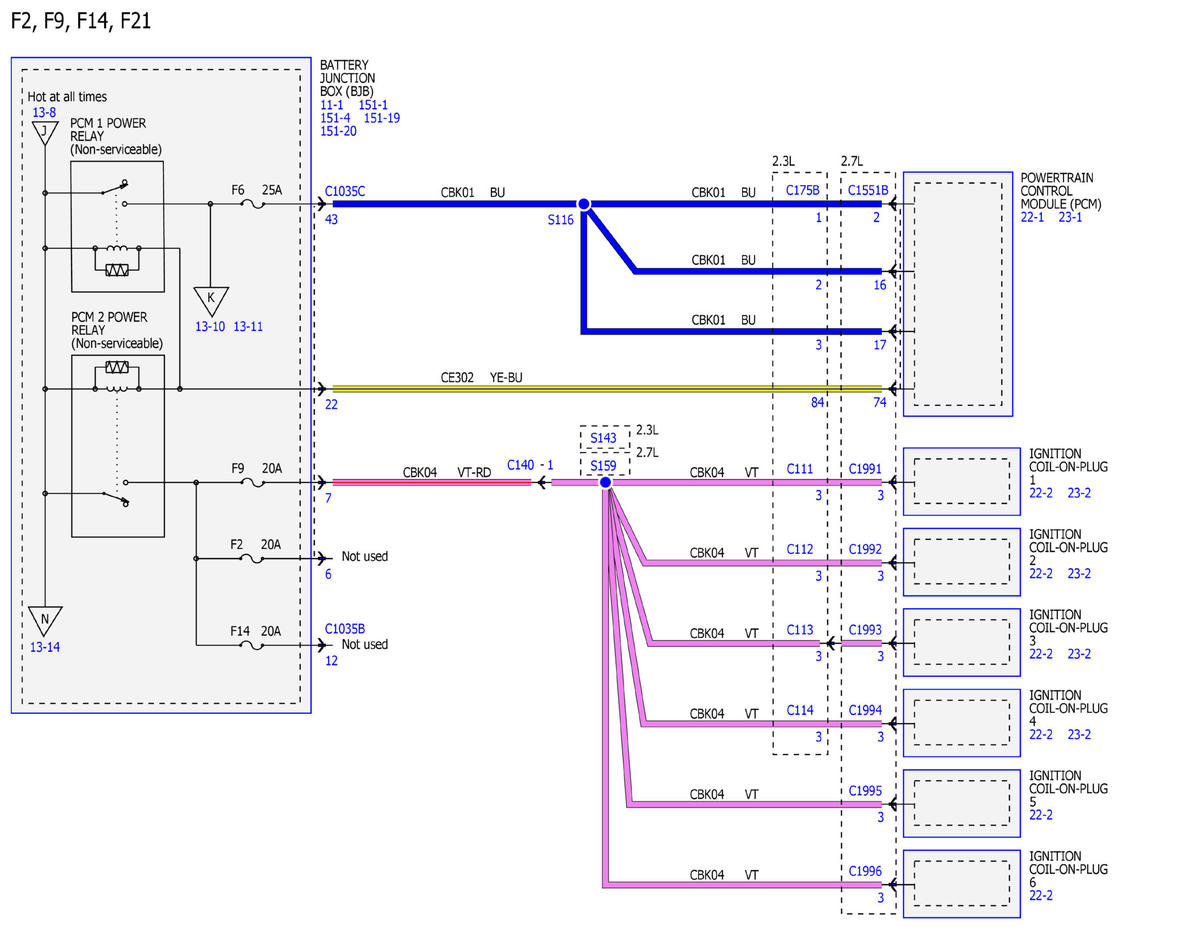

Fig 9: Power Distribution/BCM Wiring Diagrams (9 Of 34)

GFDWR151837

Courtesy of FORD MOTOR COMPANY

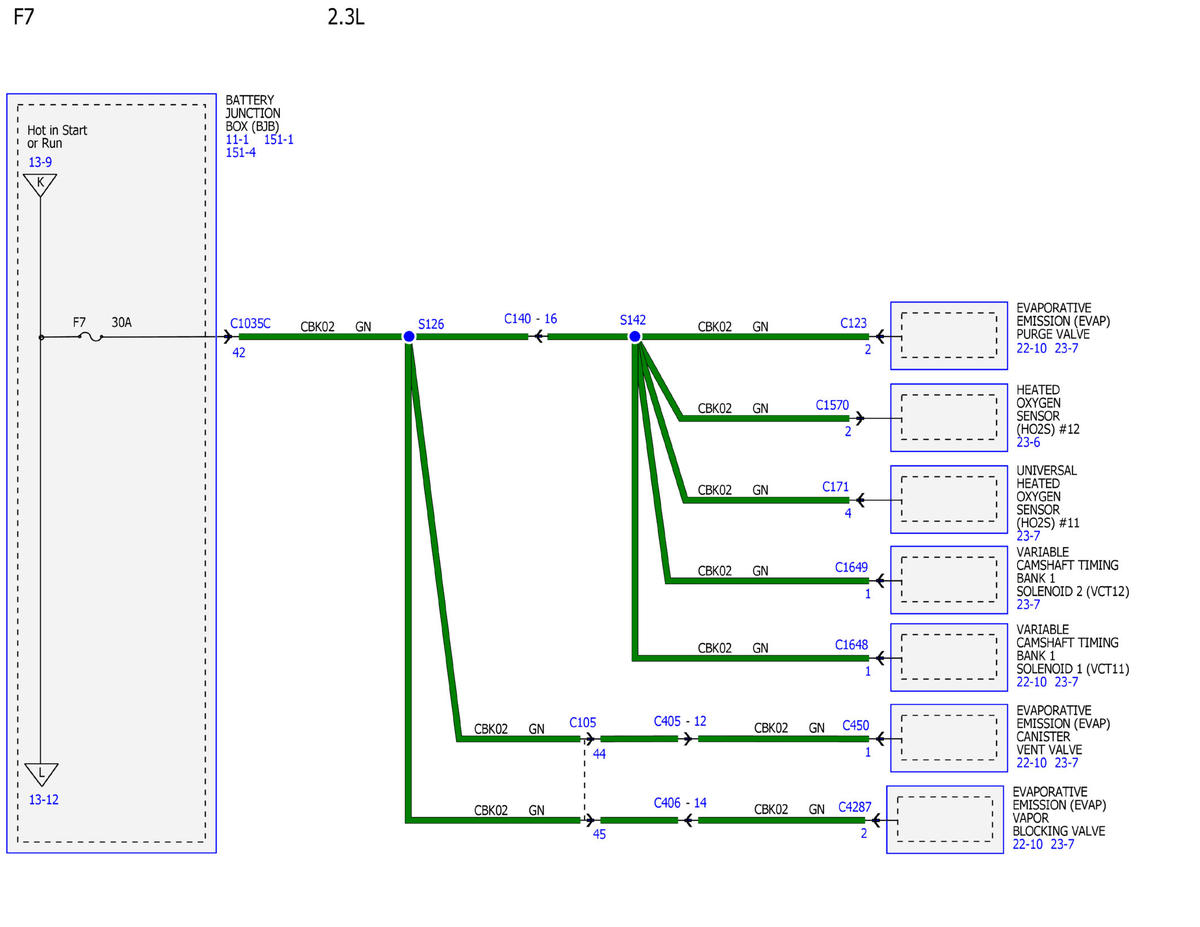

Fig 10: Power Distribution/BCM Wiring Diagrams (10 Of 34)

GFDWR151805

Courtesy of FORD MOTOR COMPANY

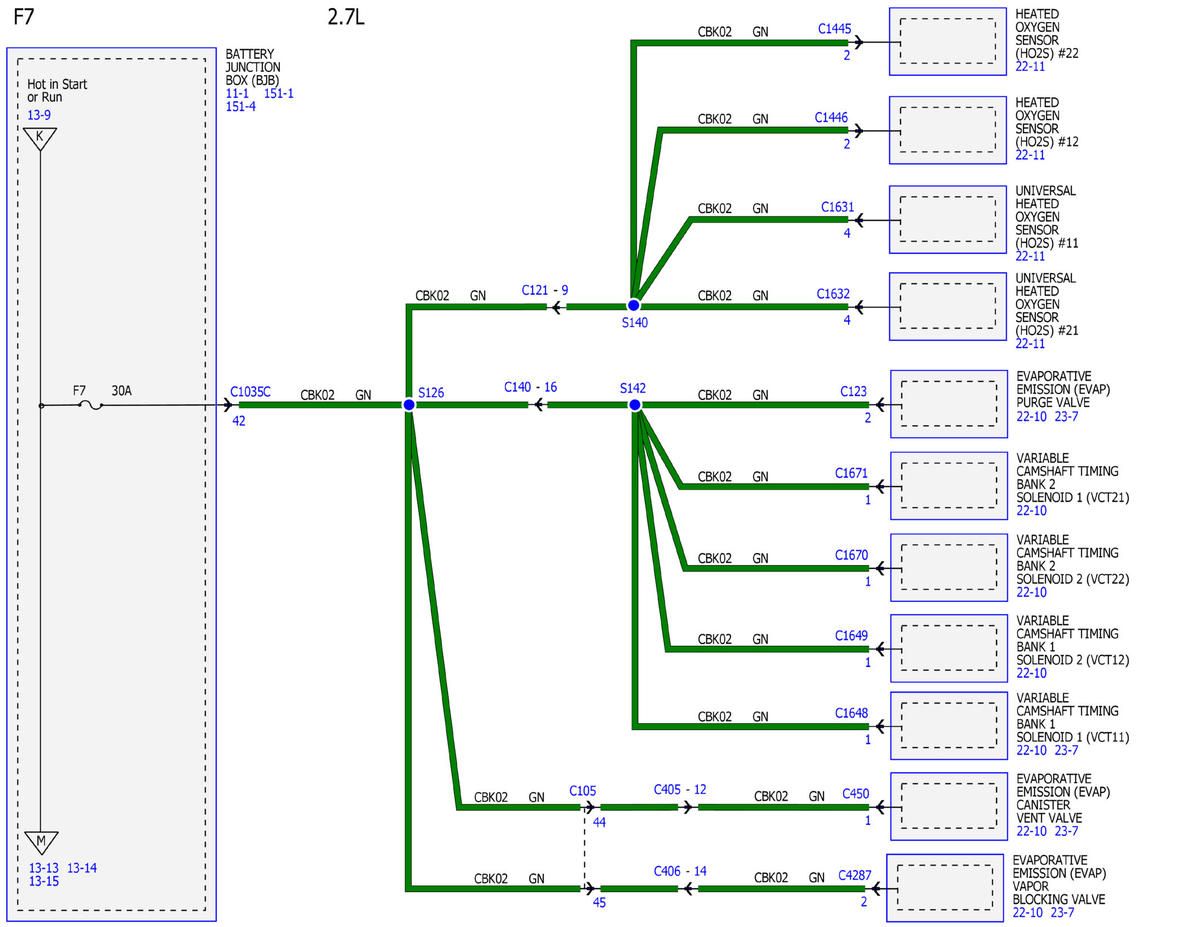

Fig 11: Power Distribution/BCM Wiring Diagrams (11 Of 34)

GFDWR151806

Courtesy of FORD MOTOR COMPANY

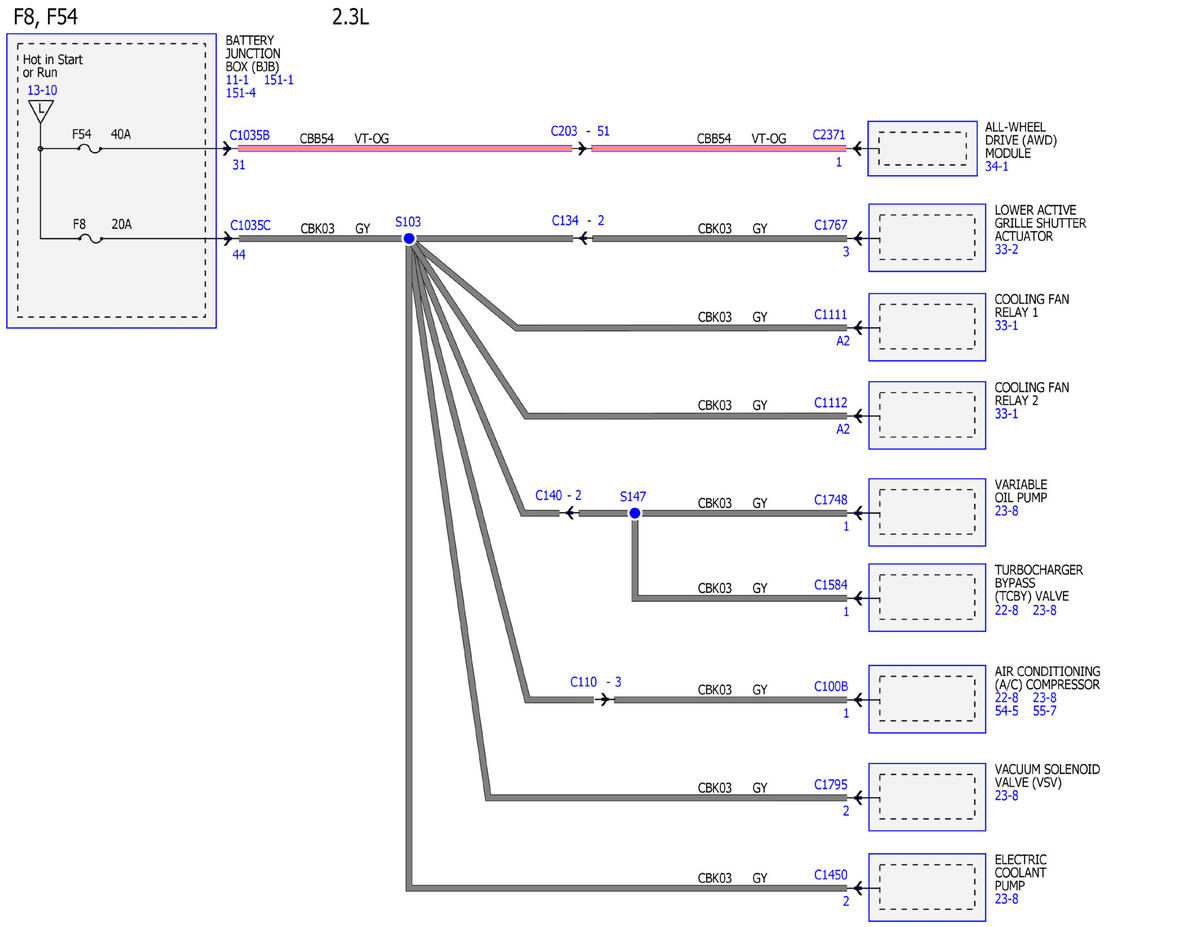

Fig 12: Power Distribution/BCM Wiring Diagrams (12 Of 34)

GFDWR151807

Courtesy of FORD MOTOR COMPANY

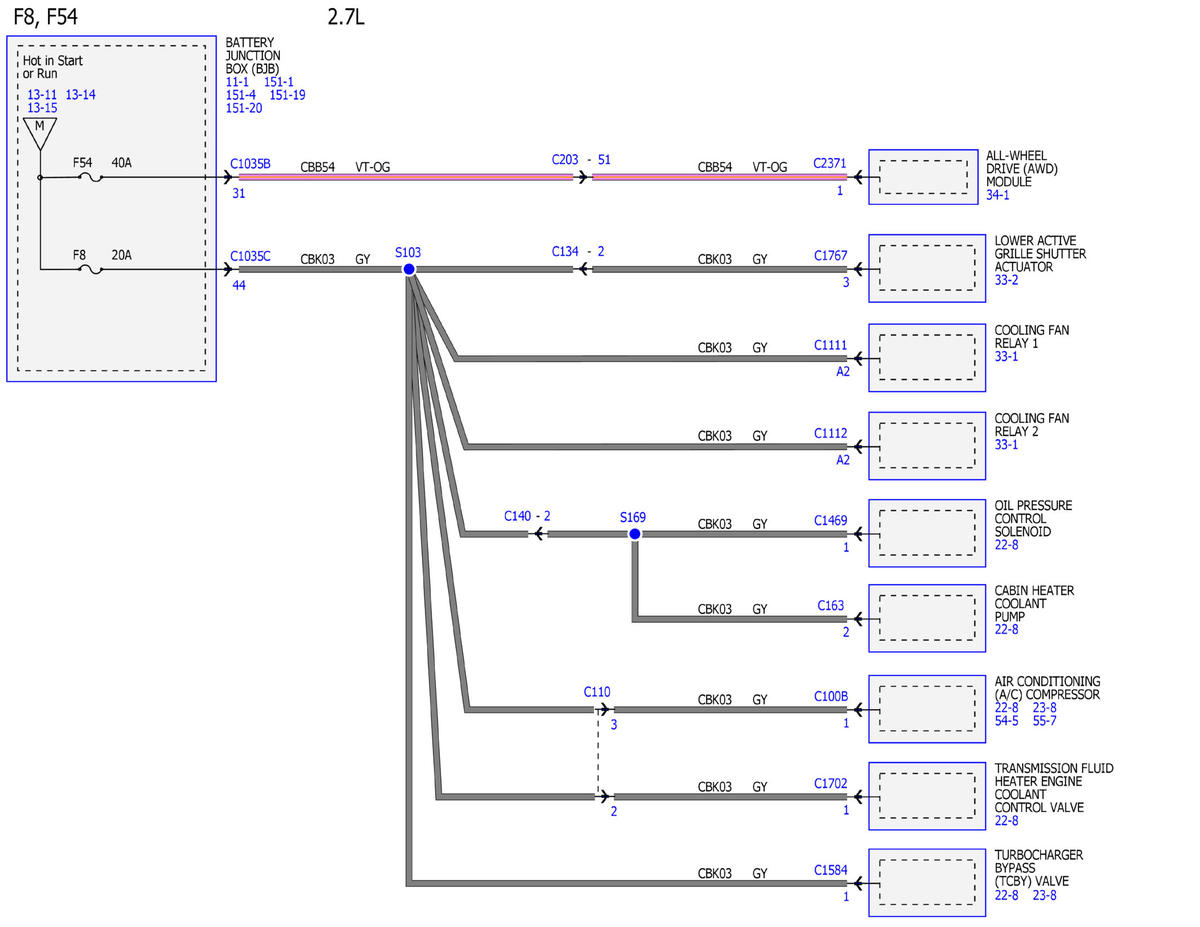

Fig 13: Power Distribution/BCM Wiring Diagrams (13 Of 34)

GFDWR151808

Courtesy of FORD MOTOR COMPANY

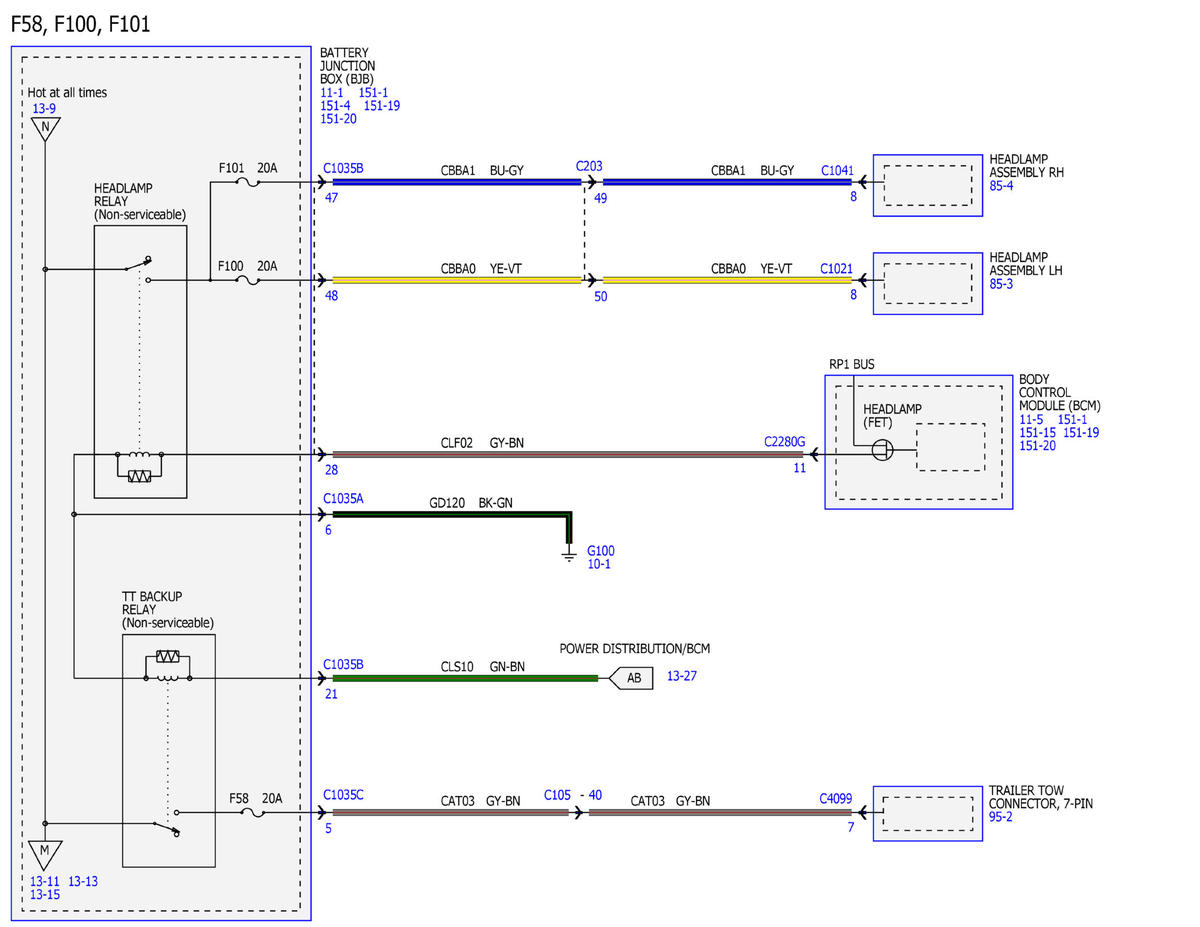

Fig 14: Power Distribution/BCM Wiring Diagrams (14 Of 34)

GFDWR151809

Courtesy of FORD MOTOR COMPANY

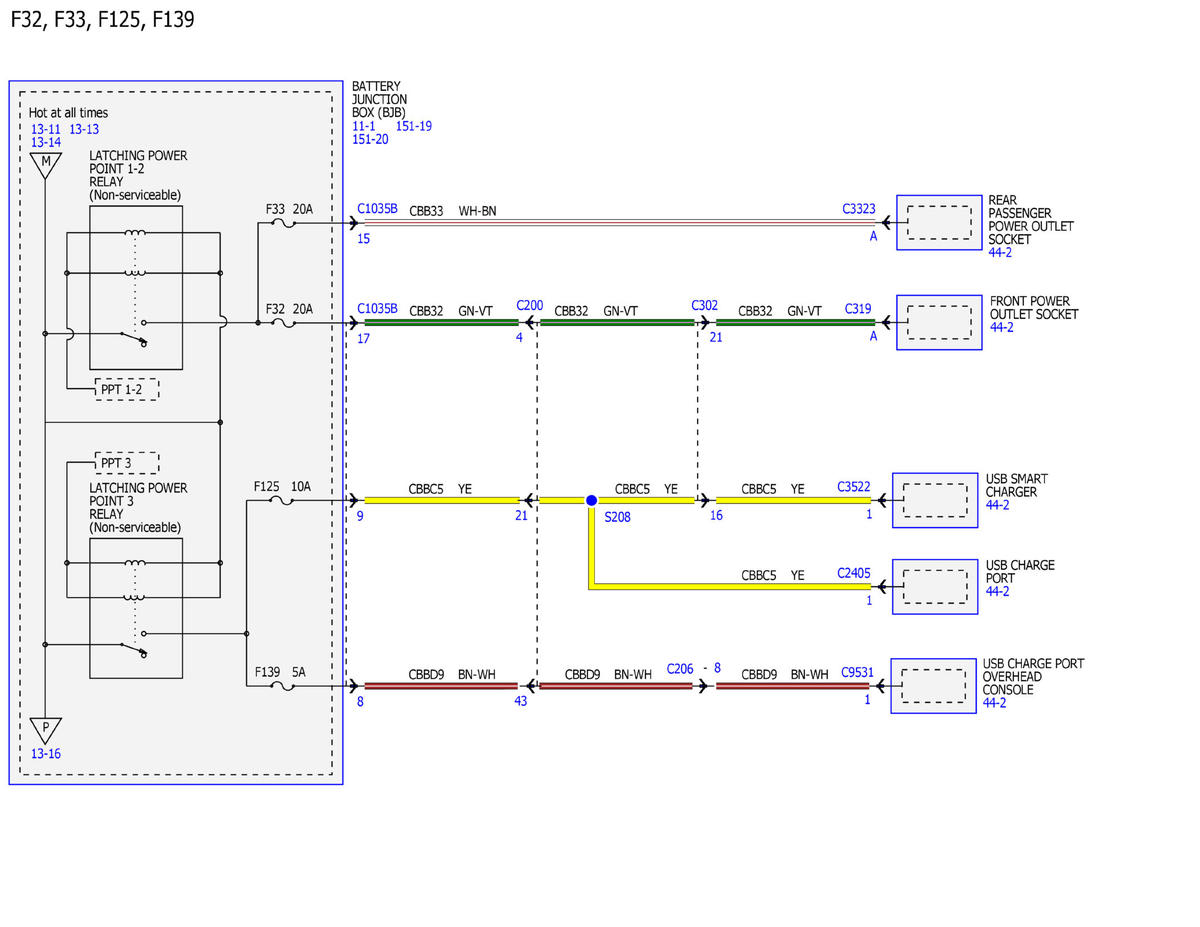

Fig 15: Power Distribution/BCM Wiring Diagrams (15 Of 34)

GFDWR151810

Courtesy of FORD MOTOR COMPANY

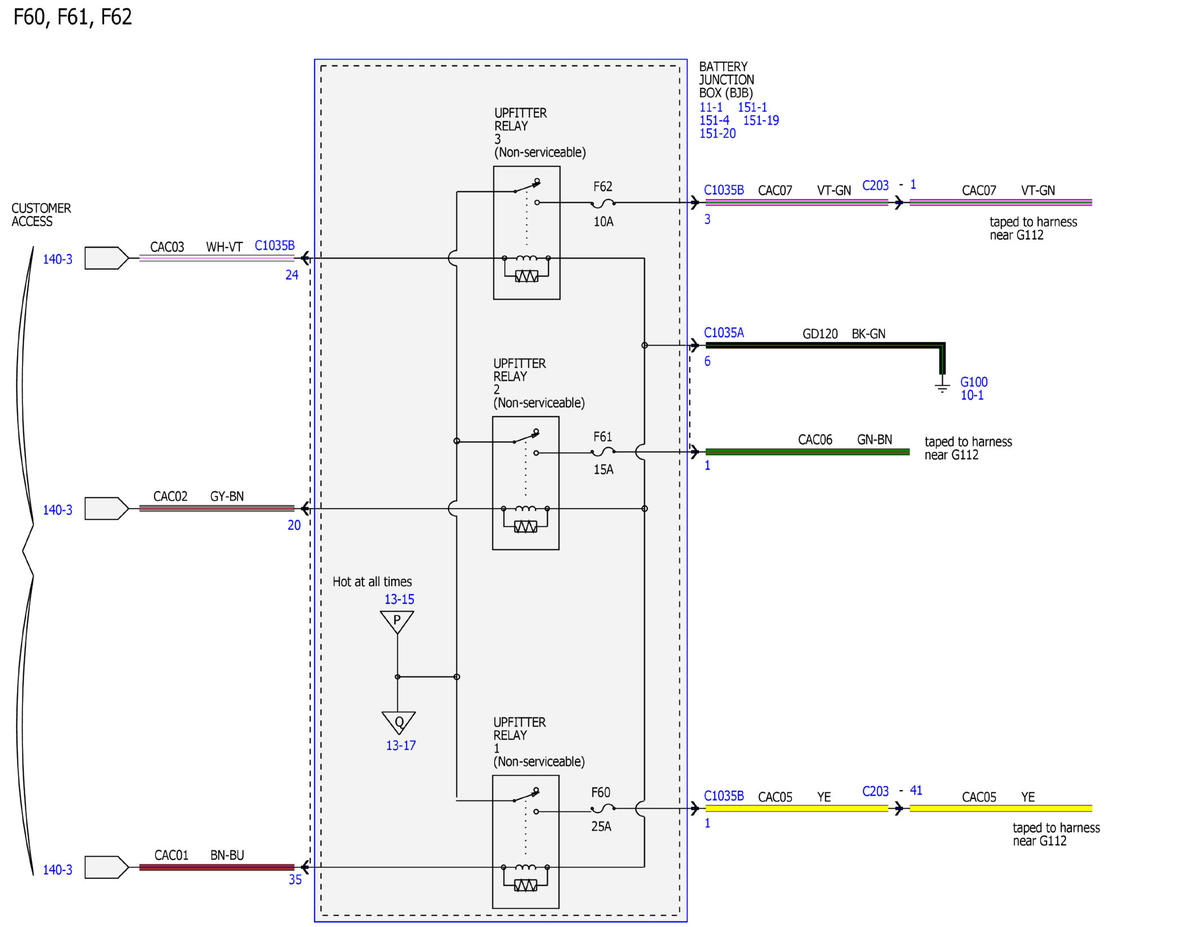

Fig 16: Power Distribution/BCM Wiring Diagrams (16 Of 34)

GFDWR151811

Courtesy of FORD MOTOR COMPANY

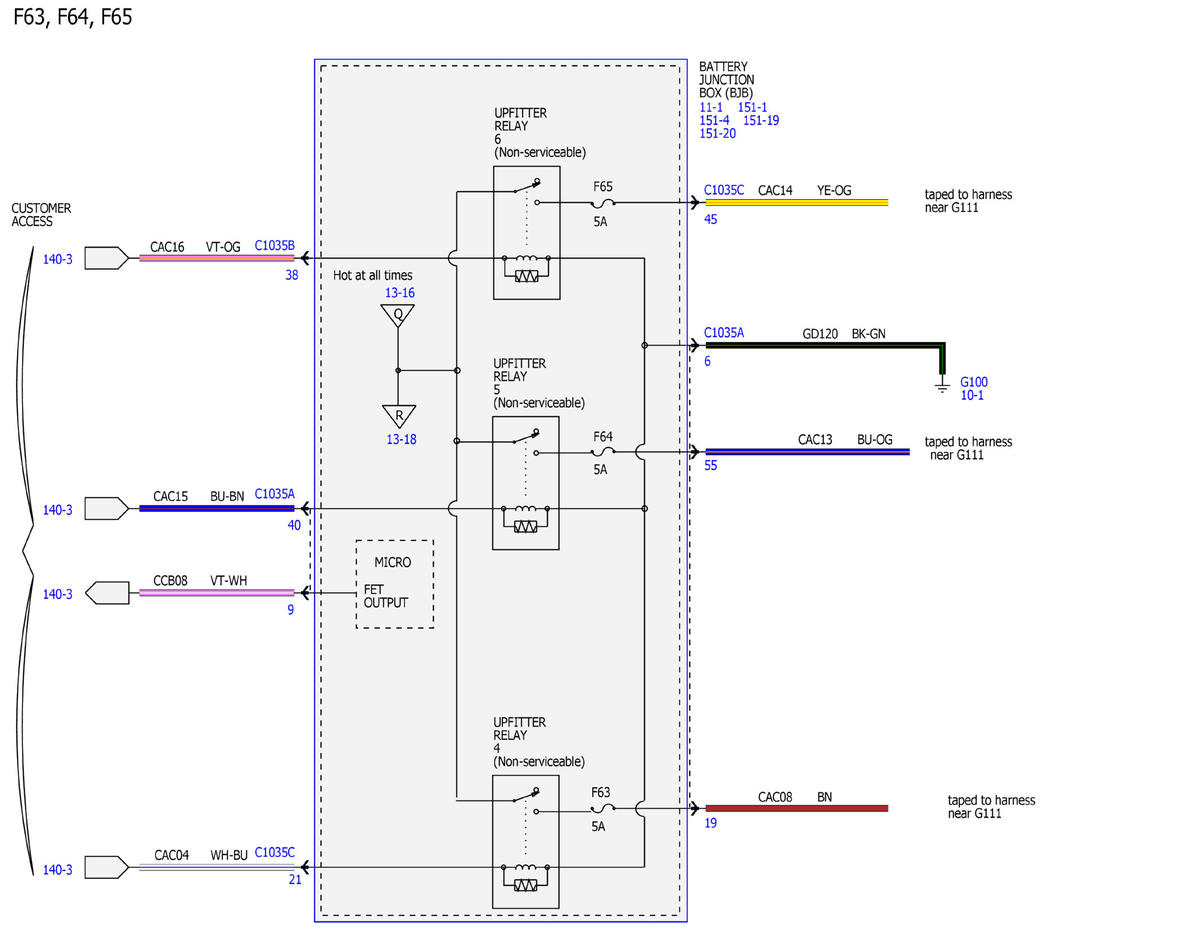

Fig 17: Power Distribution/BCM Wiring Diagrams (17 Of 34)

GFDWR151812

Courtesy of FORD MOTOR COMPANY

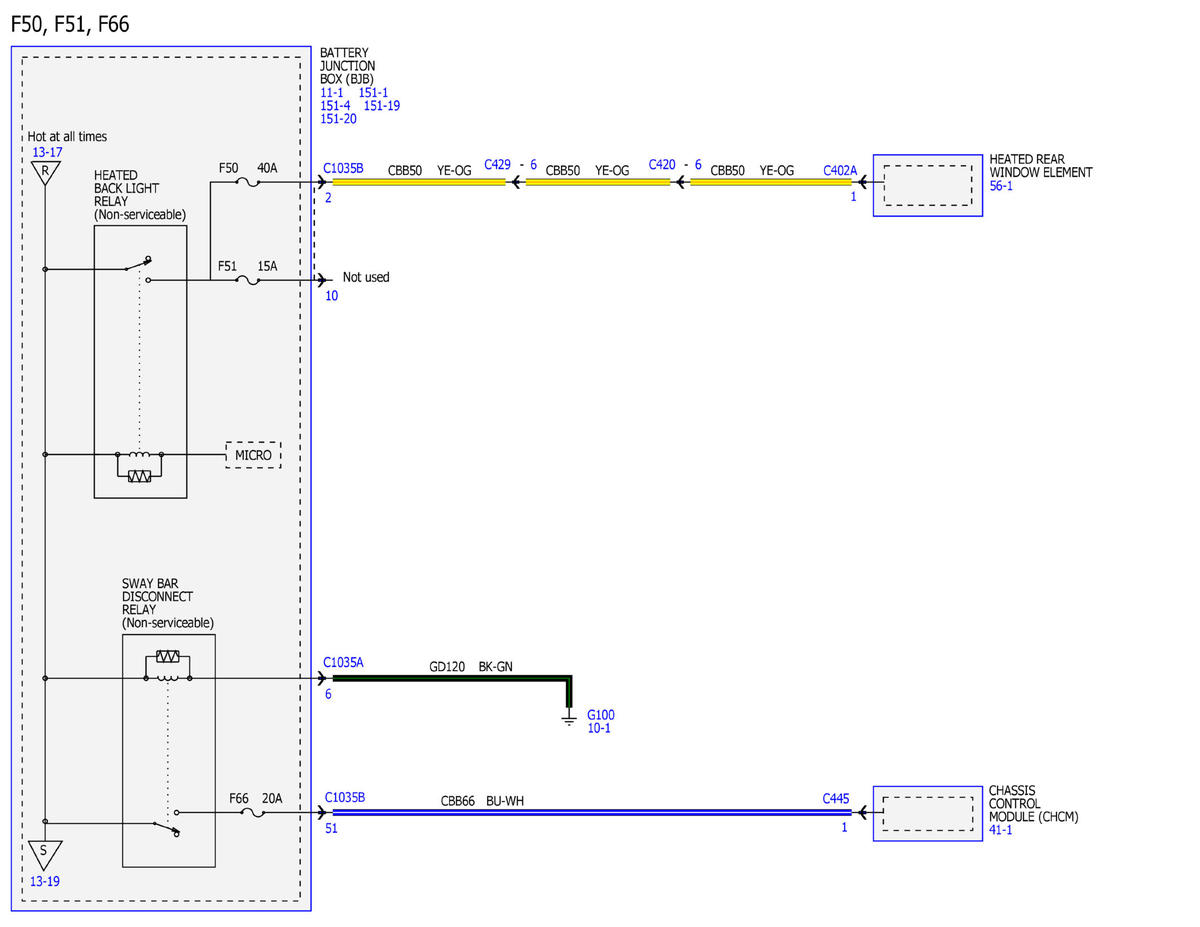

Fig 18: Power Distribution/BCM Wiring Diagrams (18 Of 34)

GFDWR151813

Courtesy of FORD MOTOR COMPANY

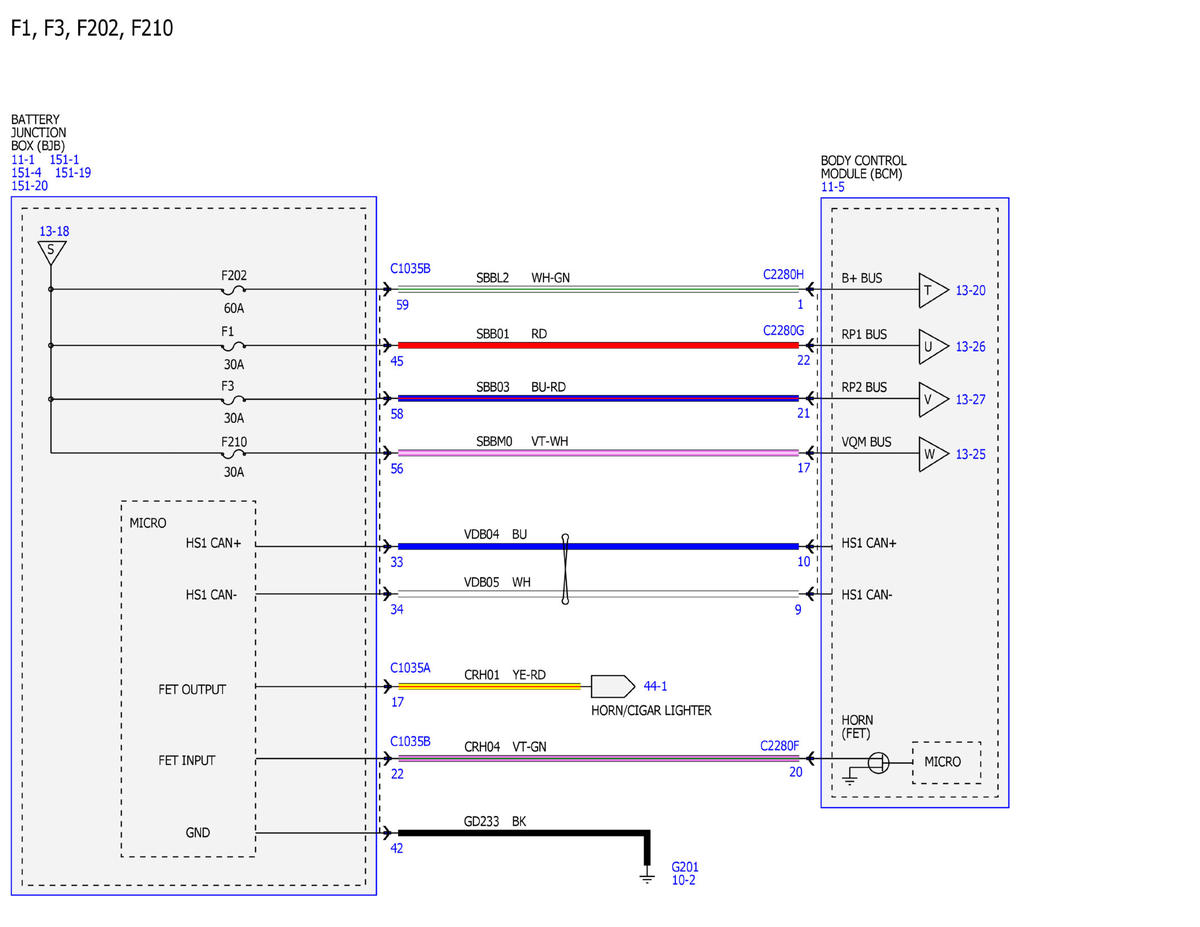

Fig 19: Power Distribution/BCM Wiring Diagrams (19 Of 34)

GFDWR151814

Courtesy of FORD MOTOR COMPANY

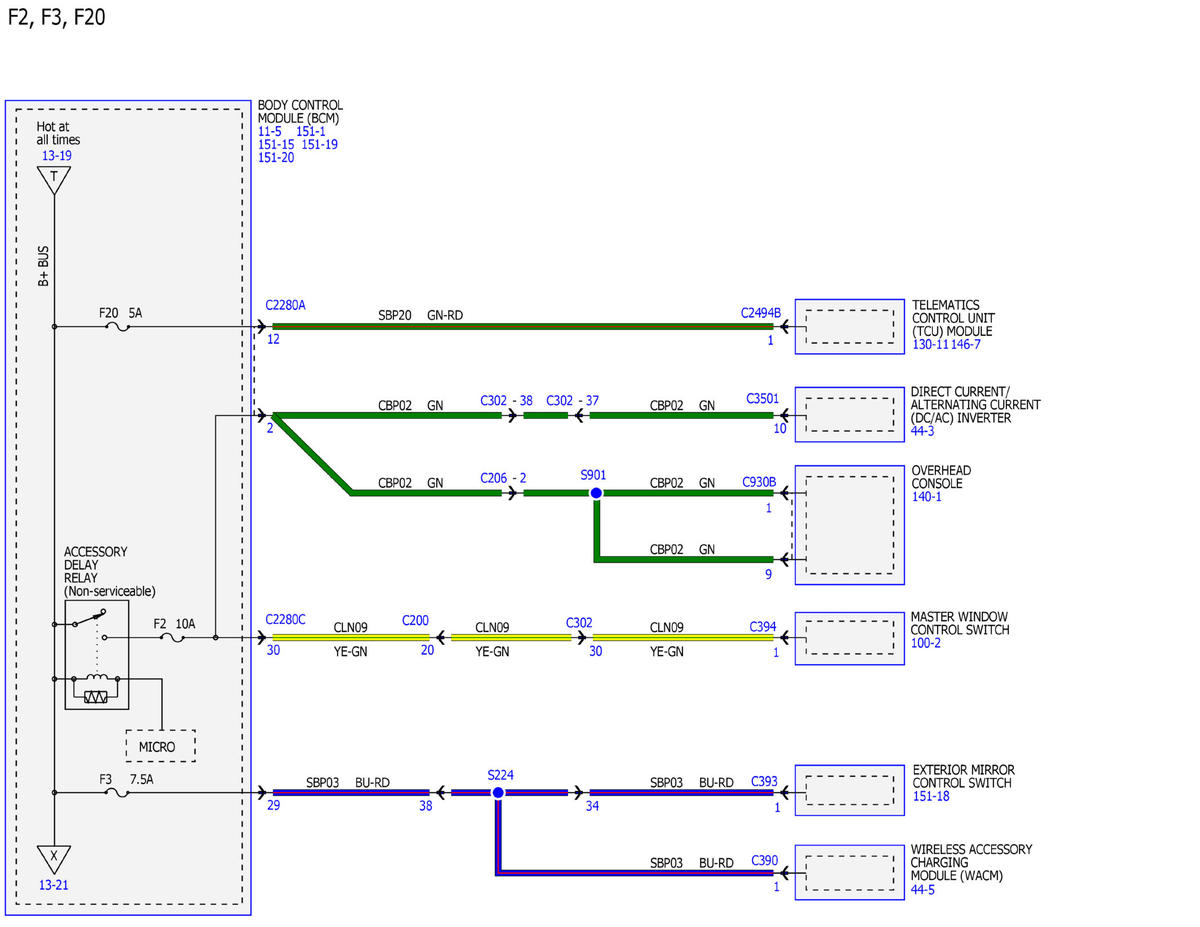

Fig 20: Power Distribution/BCM Wiring Diagrams (20 Of 34)

GFDWR151816

Courtesy of FORD MOTOR COMPANY

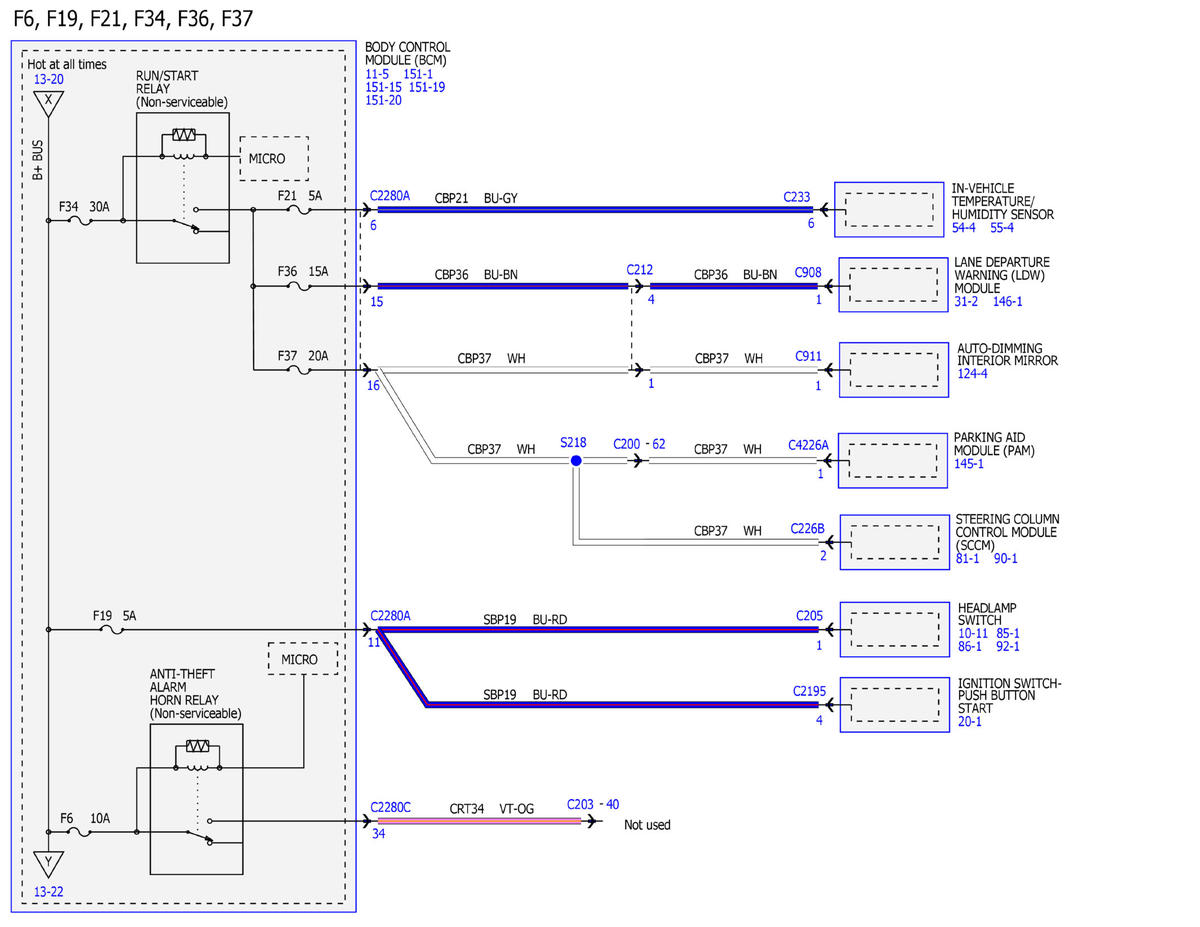

Fig 21: Power Distribution/BCM Wiring Diagrams (21 Of 34)

GFDWR151817

Courtesy of FORD MOTOR COMPANY

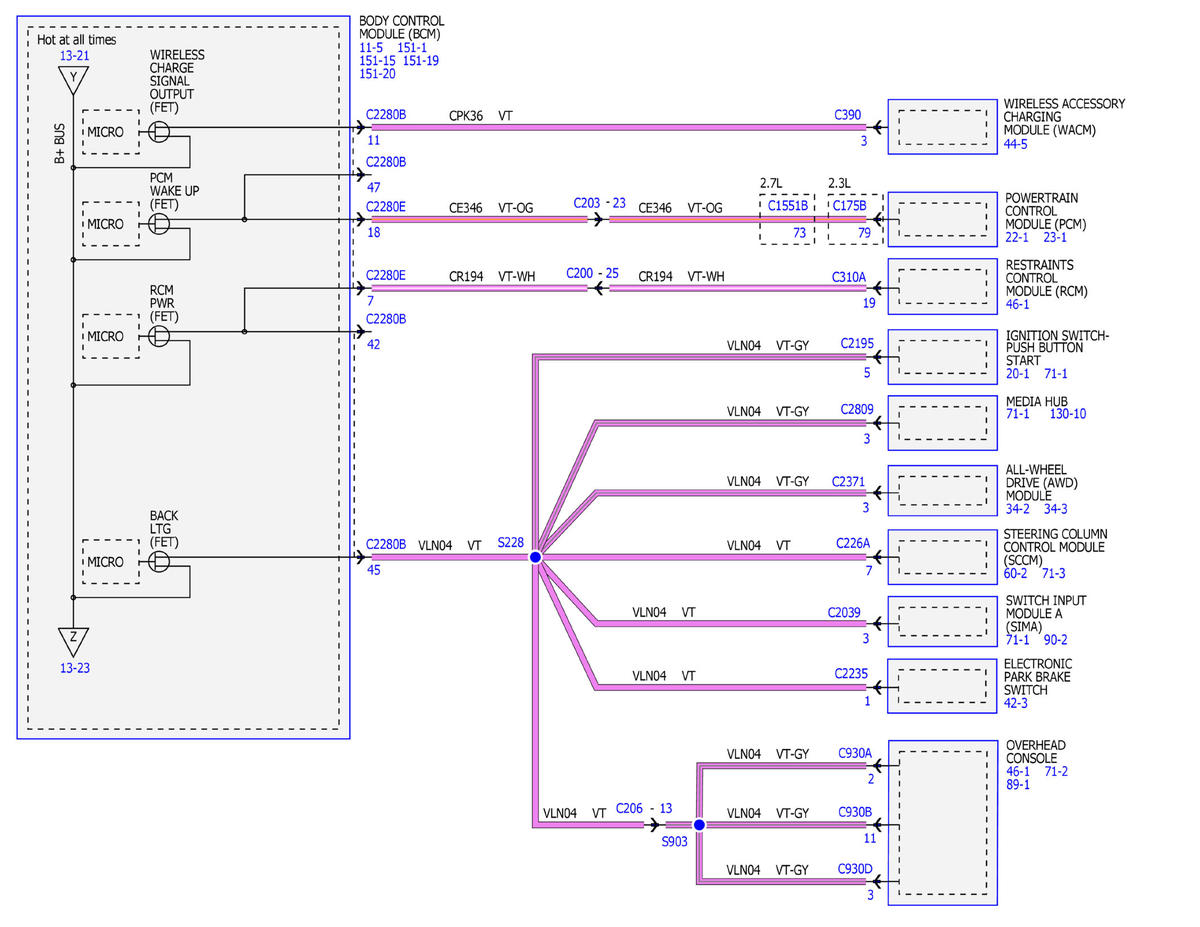

Fig 22: Power Distribution/BCM Wiring Diagrams (22 Of 34)

GFDWR151818

Courtesy of FORD MOTOR COMPANY

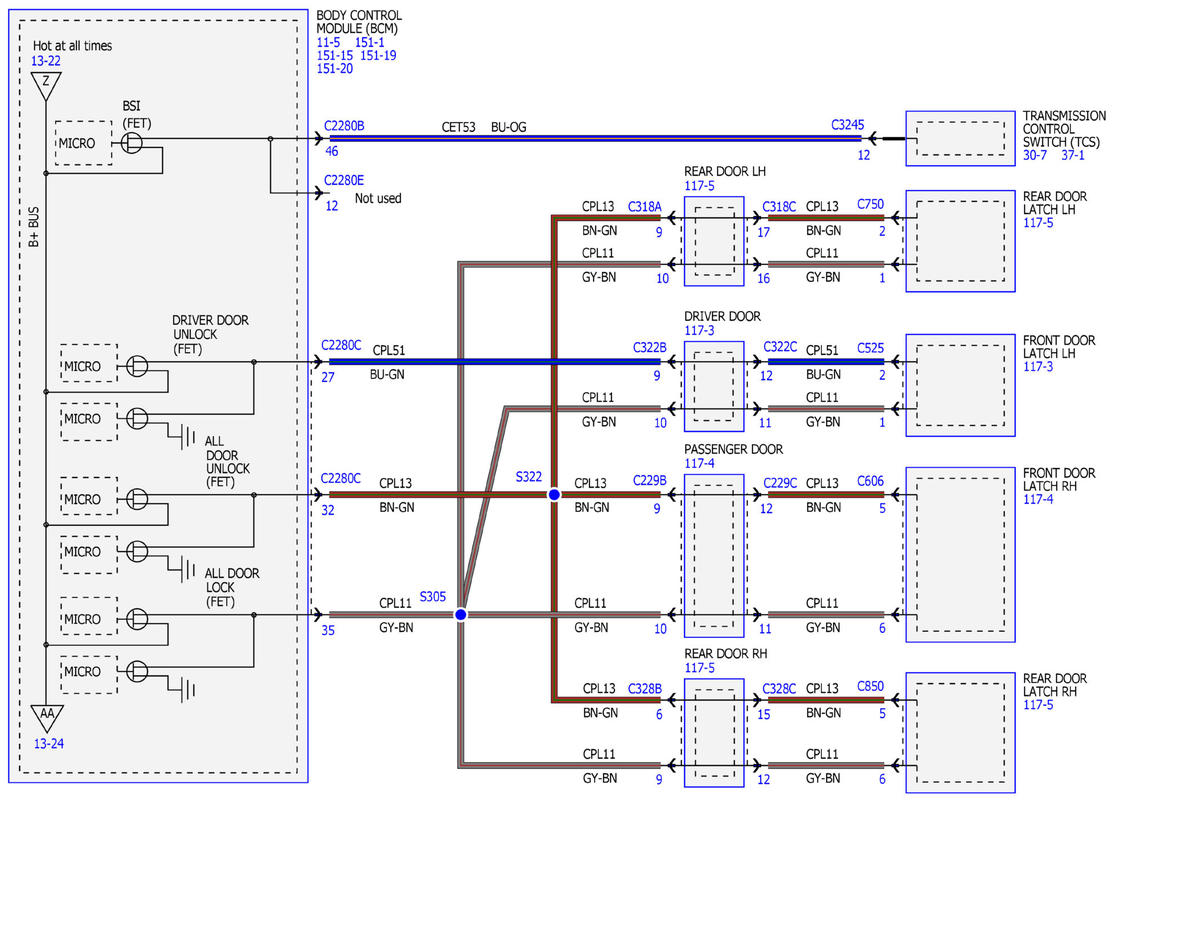

Fig 23: Power Distribution/BCM Wiring Diagrams (23 Of 34)

GFDWR151819

Courtesy of FORD MOTOR COMPANY

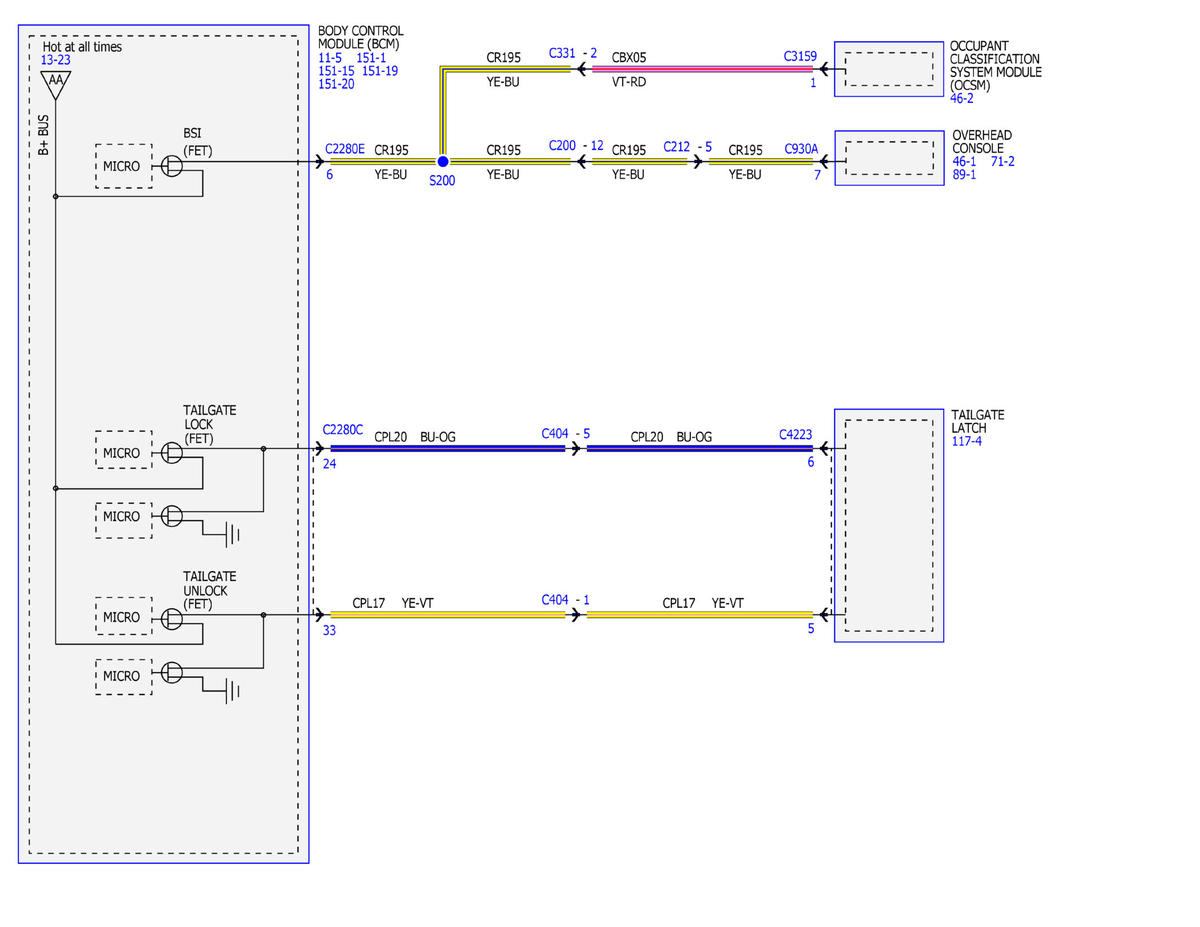

Fig 24: Power Distribution/BCM Wiring Diagrams (24 Of 34)

GFDWR151820

Courtesy of FORD MOTOR COMPANY

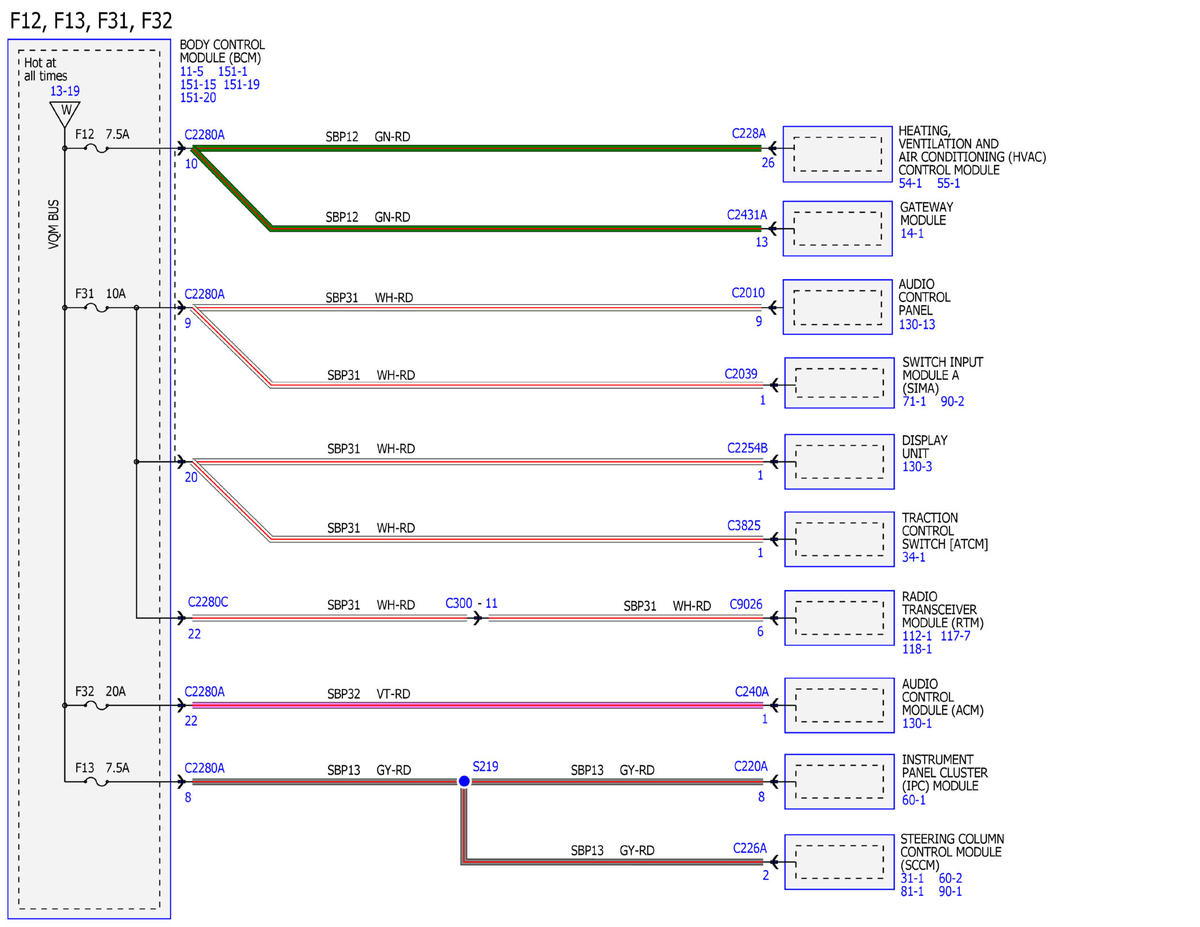

Fig 25: Power Distribution/BCM Wiring Diagrams (25 Of 34)

GFDWR151821

Courtesy of FORD MOTOR COMPANY

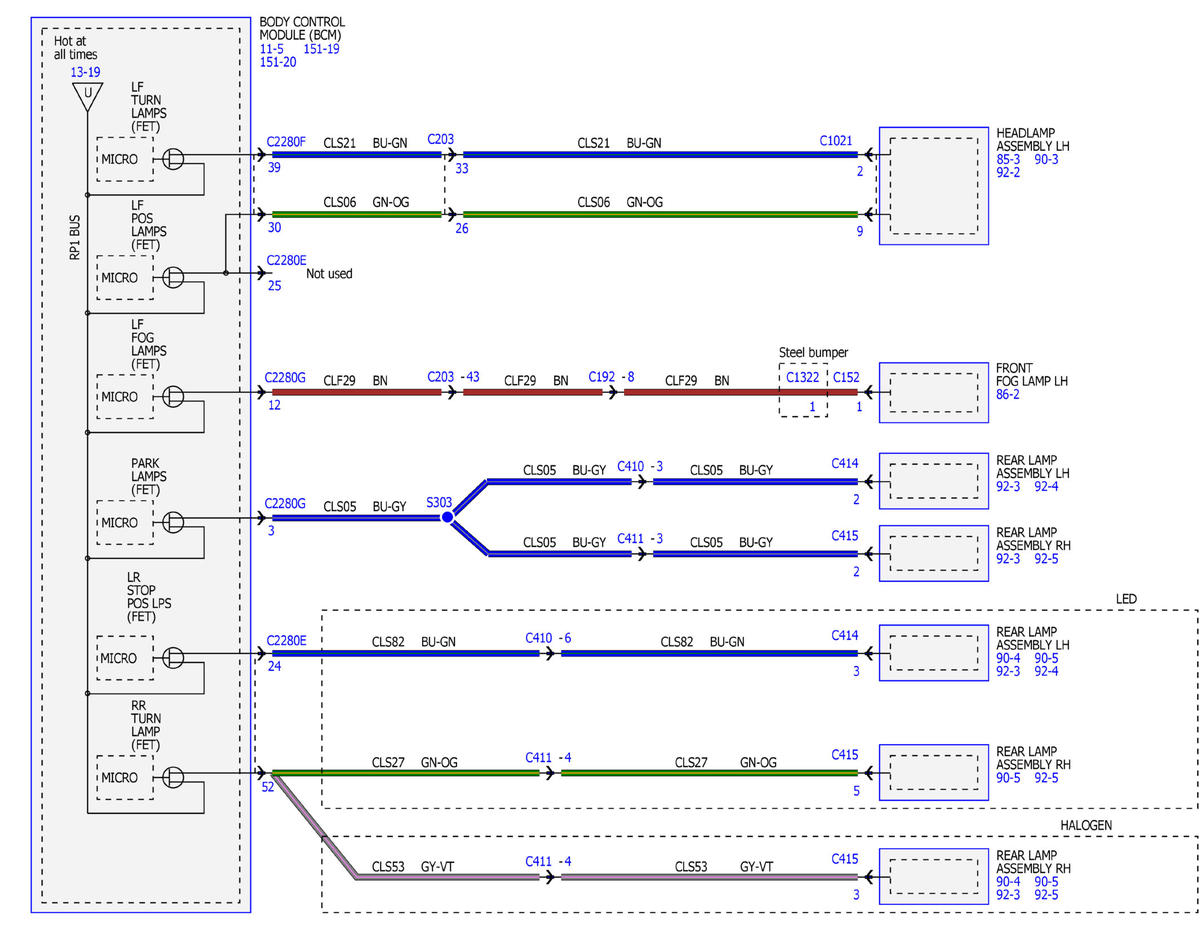

Fig 26: Power Distribution/BCM Wiring Diagrams (26 Of 34)

GFDWR151822

Courtesy of FORD MOTOR COMPANY

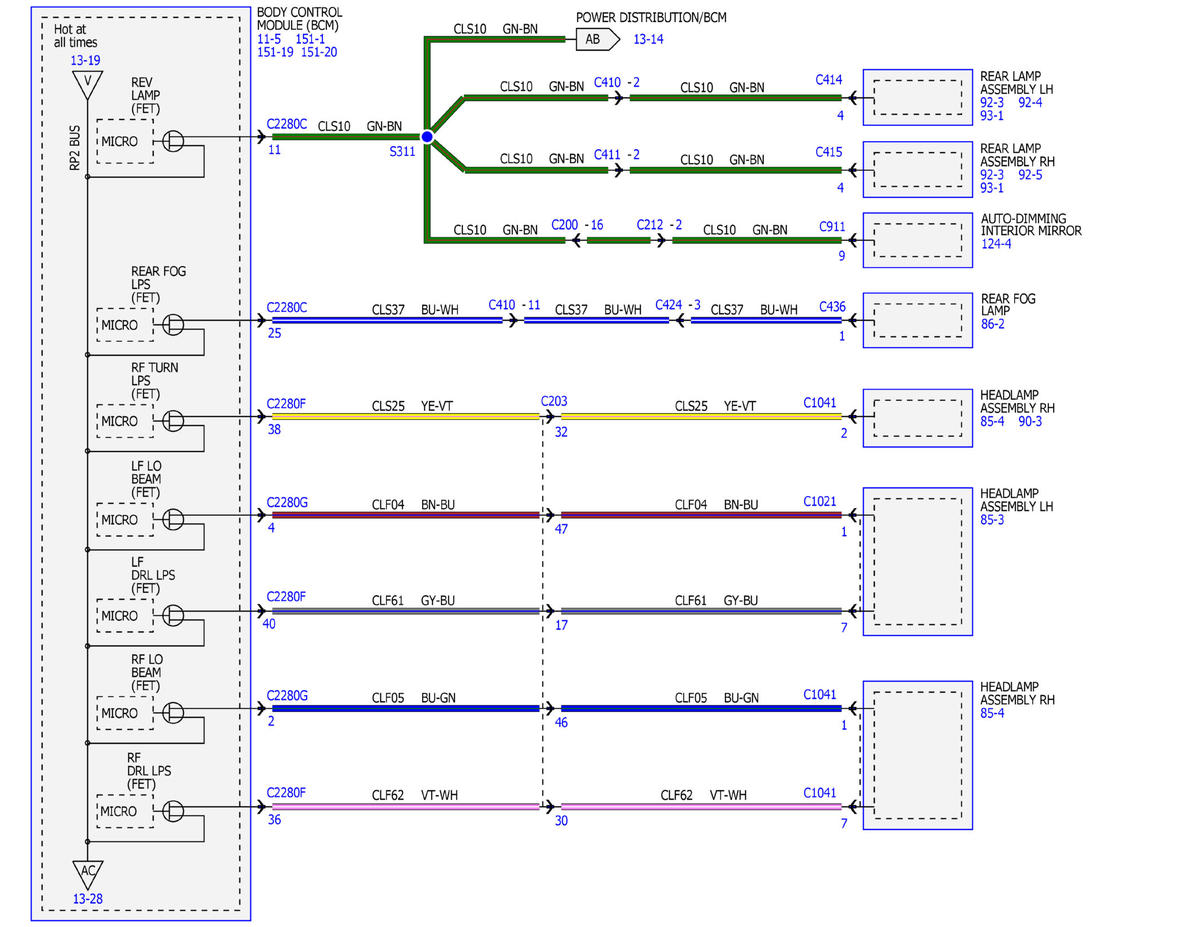

Fig 27: Power Distribution/BCM Wiring Diagrams (27 Of 34)

GFDWR151823

Courtesy of FORD MOTOR COMPANY

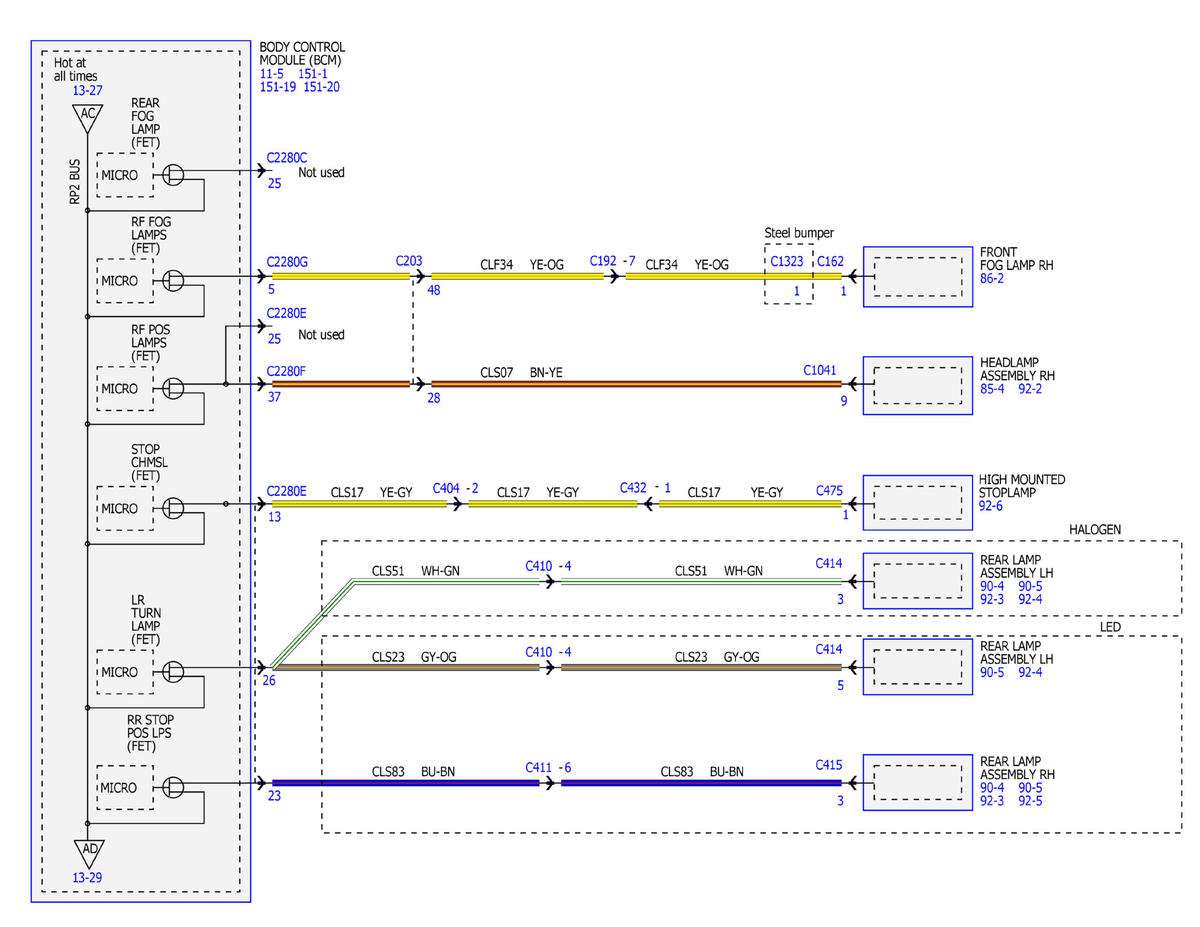

Fig 28: Power Distribution/BCM Wiring Diagrams (28 Of 34)

GFDWR151824

Courtesy of FORD MOTOR COMPANY

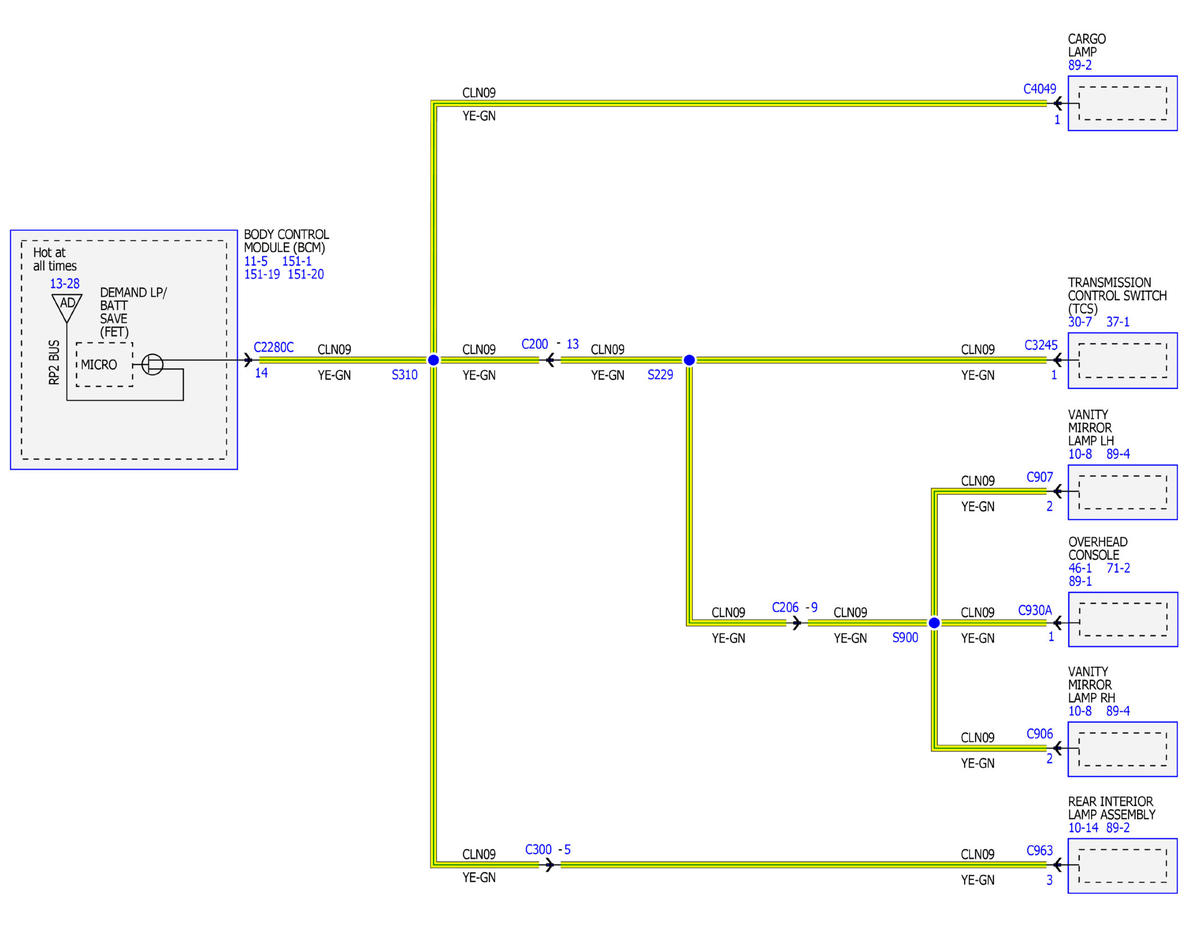

Fig 29: Power Distribution/BCM Wiring Diagrams (29 Of 34)

GFDWR151825

Courtesy of FORD MOTOR COMPANY

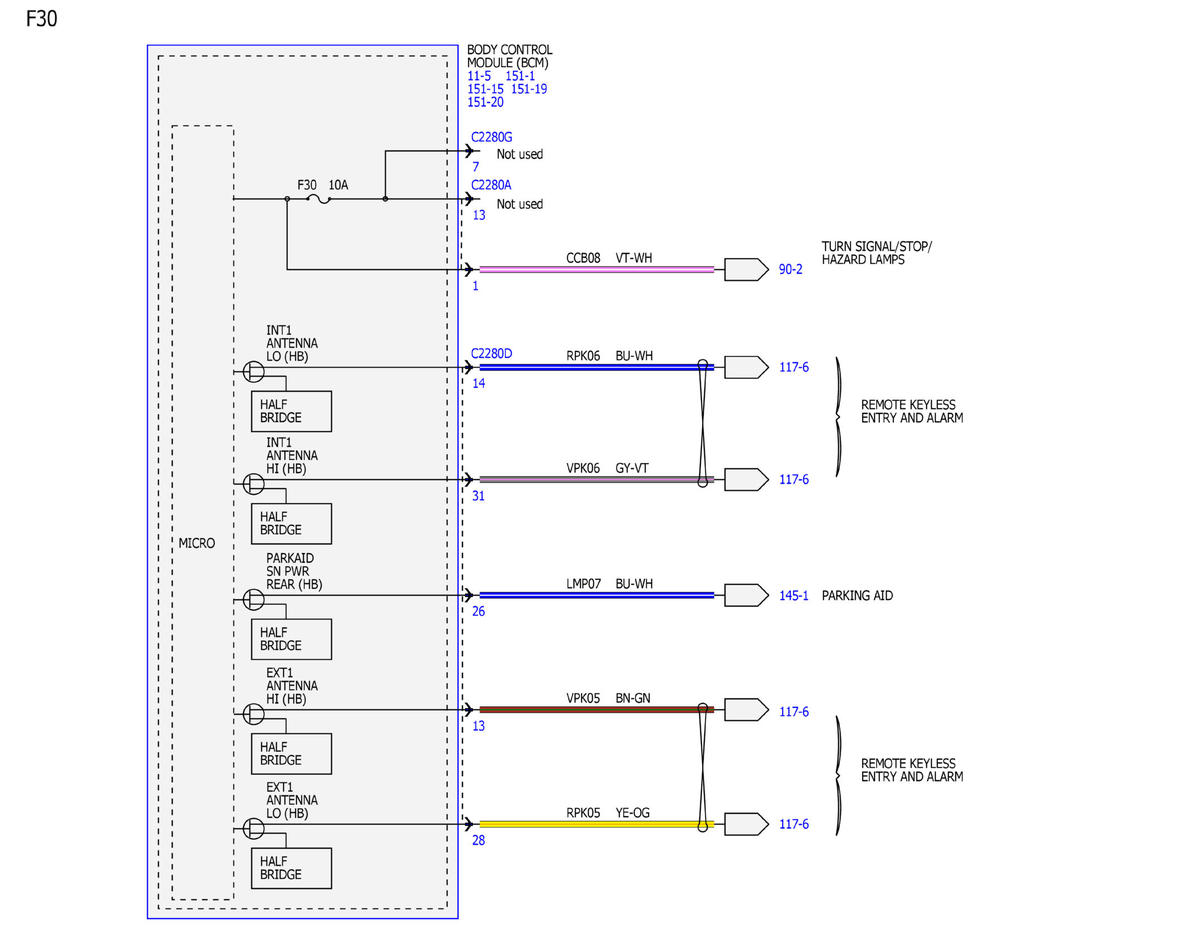

Fig 30: Power Distribution/BCM Wiring Diagrams (30 Of 34)

GFDWR151827

Courtesy of FORD MOTOR COMPANY

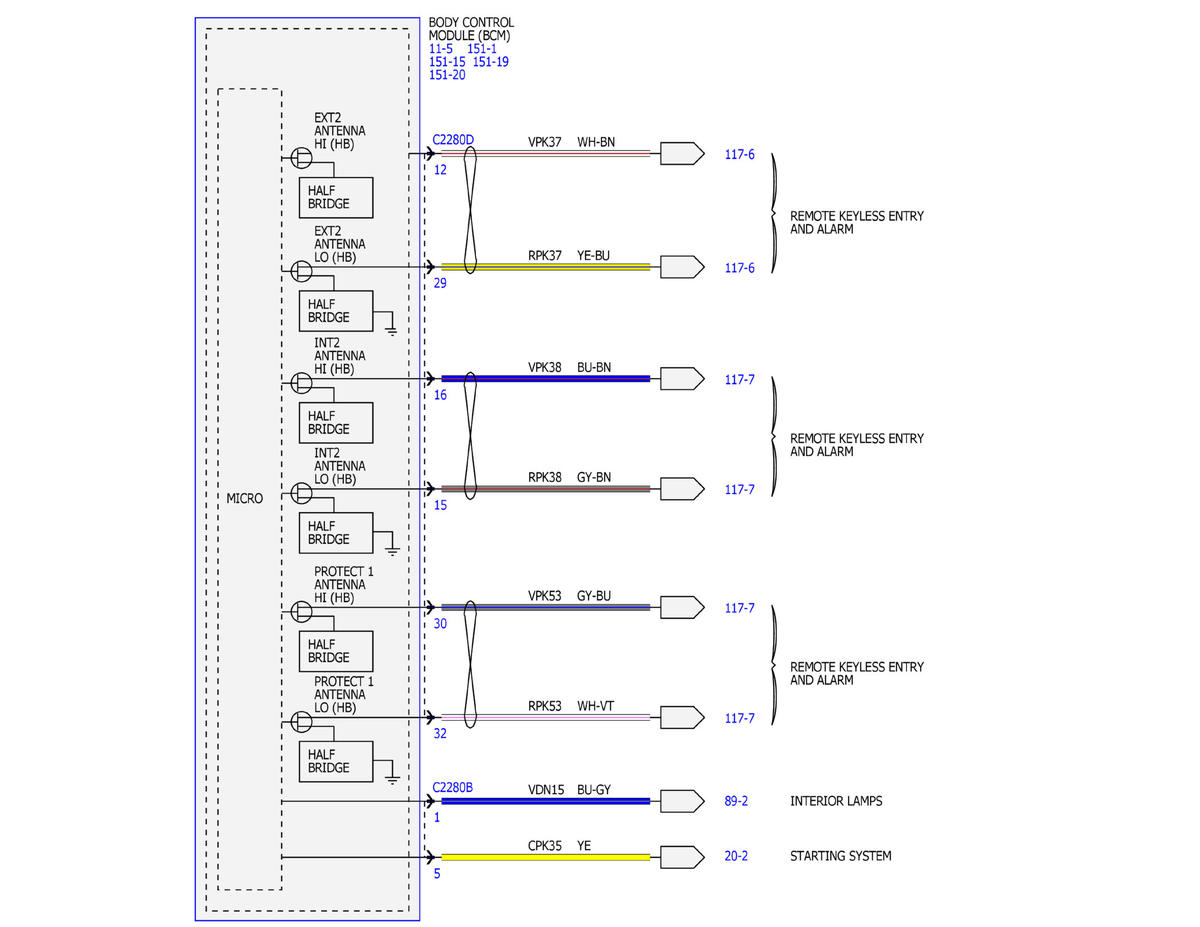

Fig 31: Power Distribution/BCM Wiring Diagrams (31 Of 34)

GFDWR151828

Courtesy of FORD MOTOR COMPANY

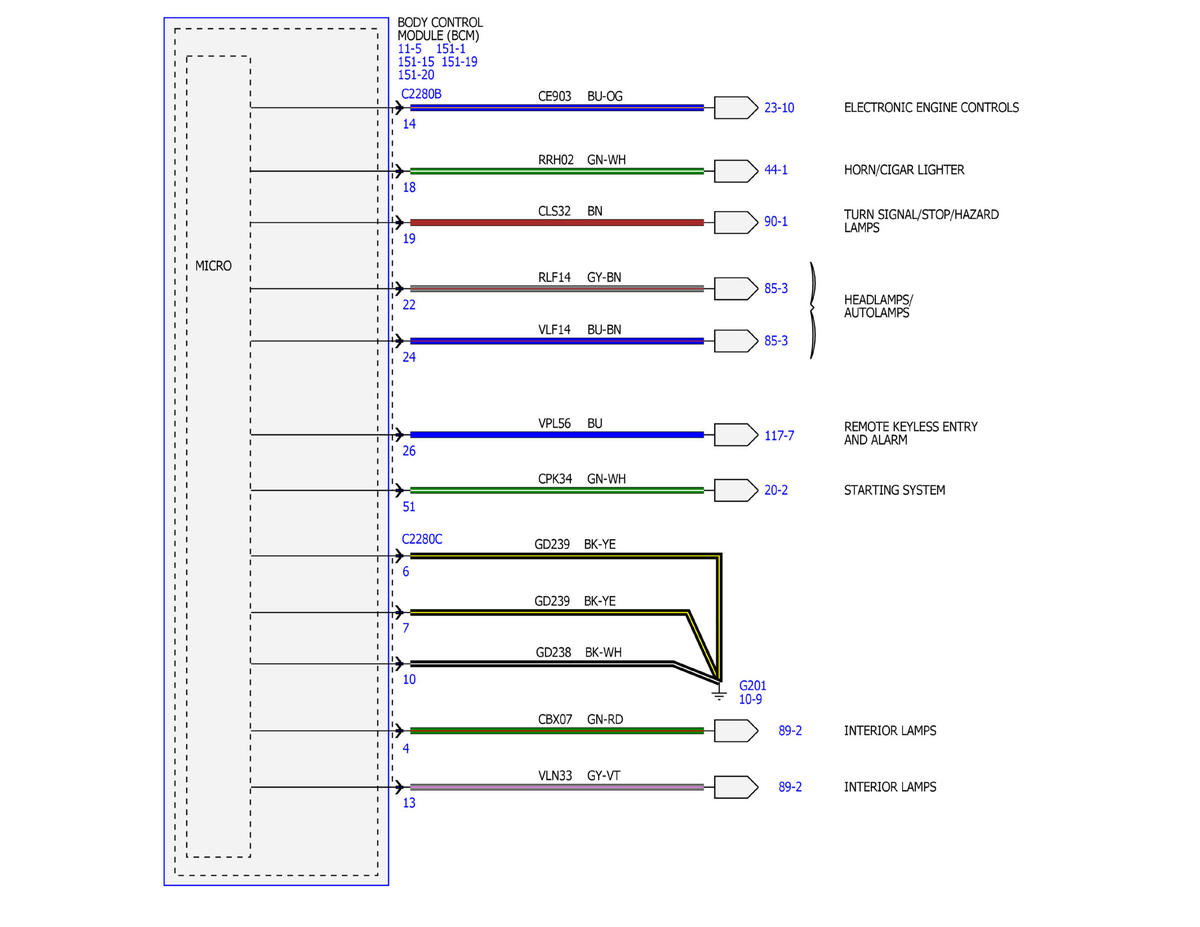

Fig 32: Power Distribution/BCM Wiring Diagrams (32 Of 34)

GFDWR151829

Courtesy of FORD MOTOR COMPANY

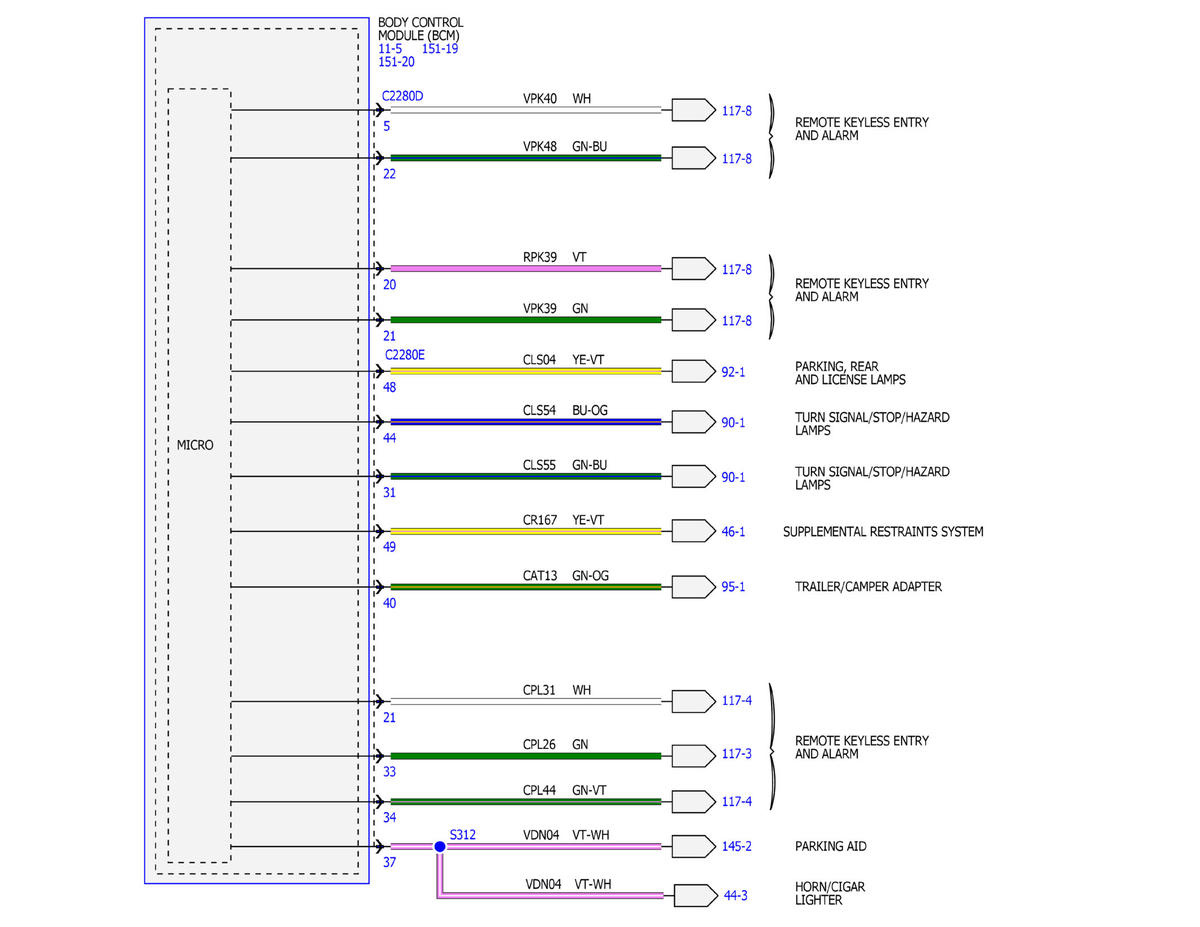

Fig 33: Power Distribution/BCM Wiring Diagrams (33 Of 34)

GFDWR151830

Courtesy of FORD MOTOR COMPANY

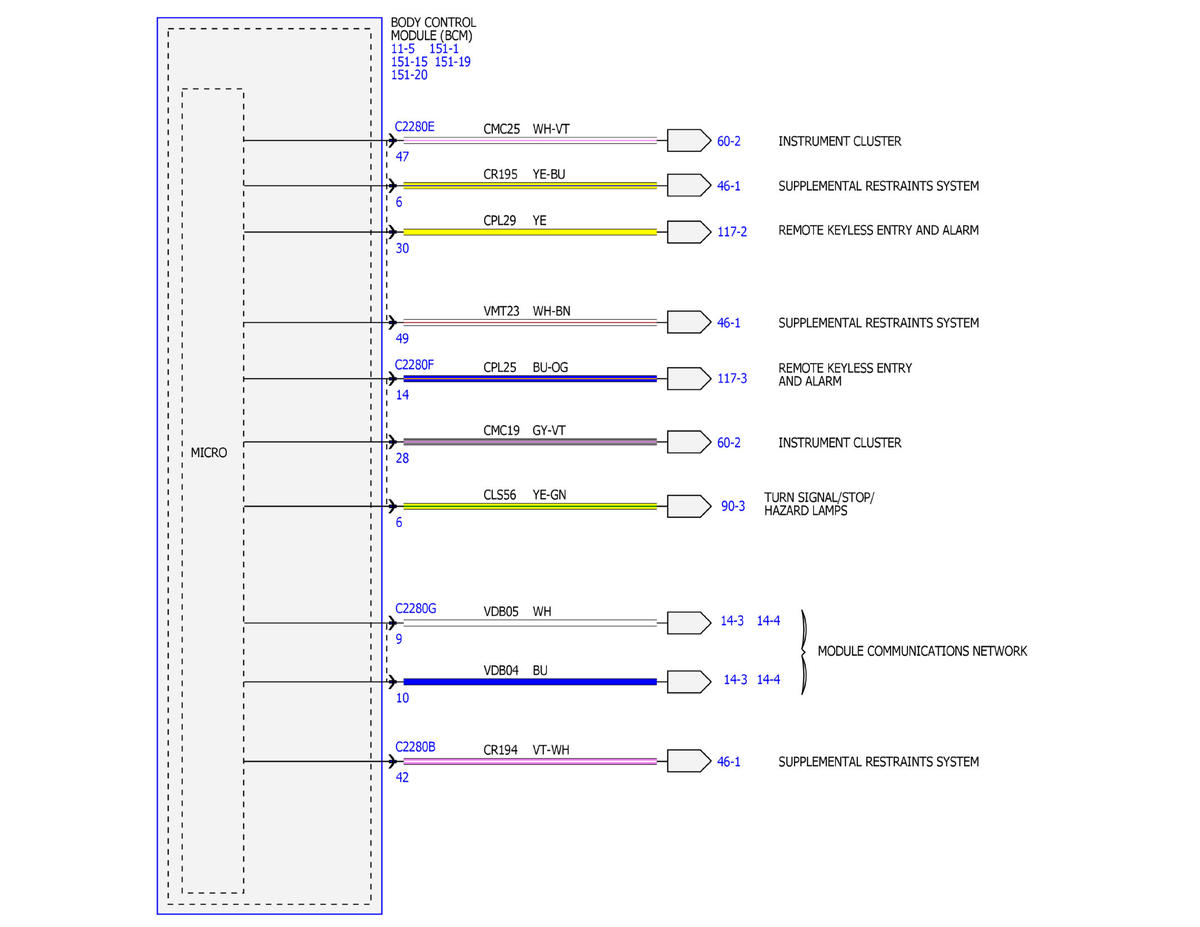

Fig 34: Power Distribution/BCM Wiring Diagrams (34 Of 34)

GFDWR151831

Courtesy of FORD MOTOR COMPANY
