Electronic Engine Controls - 2.7L

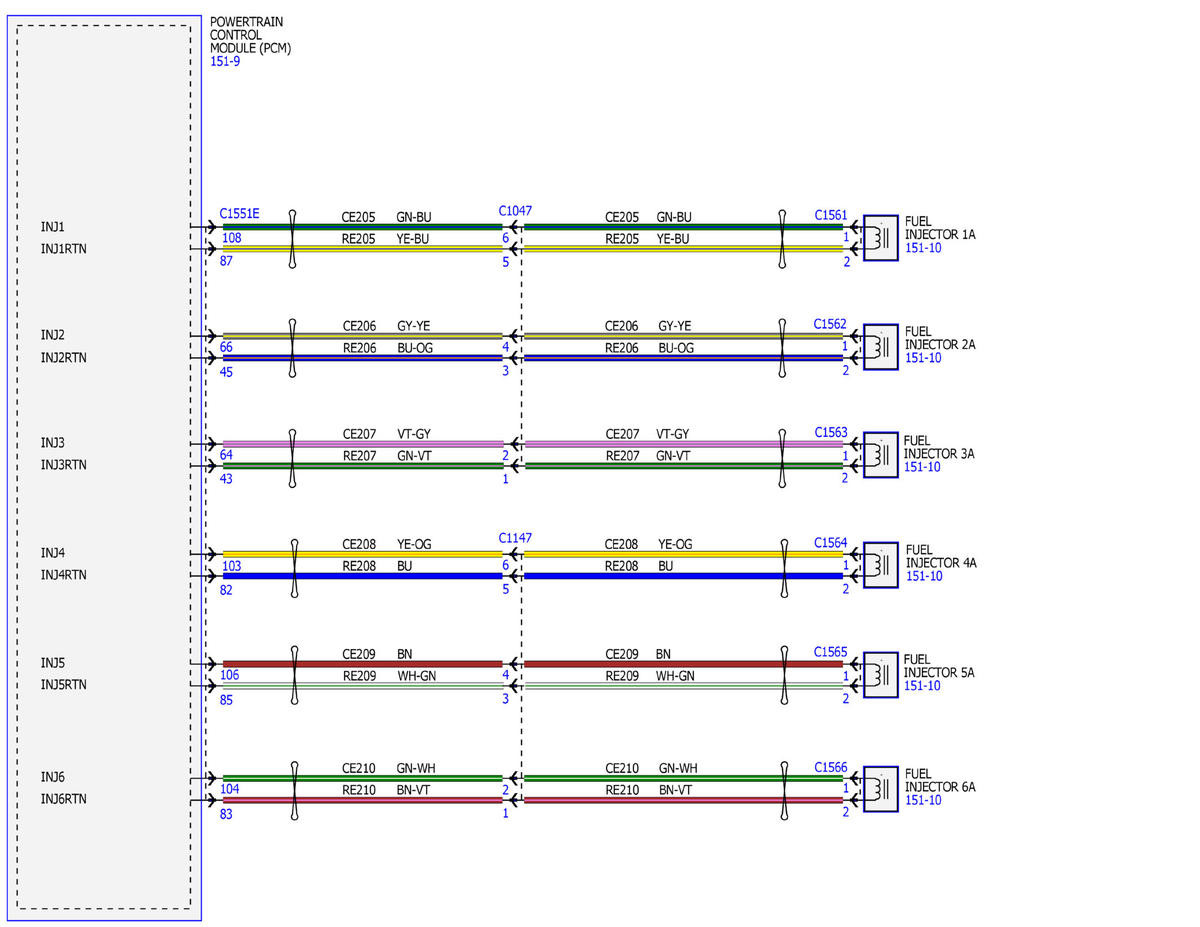

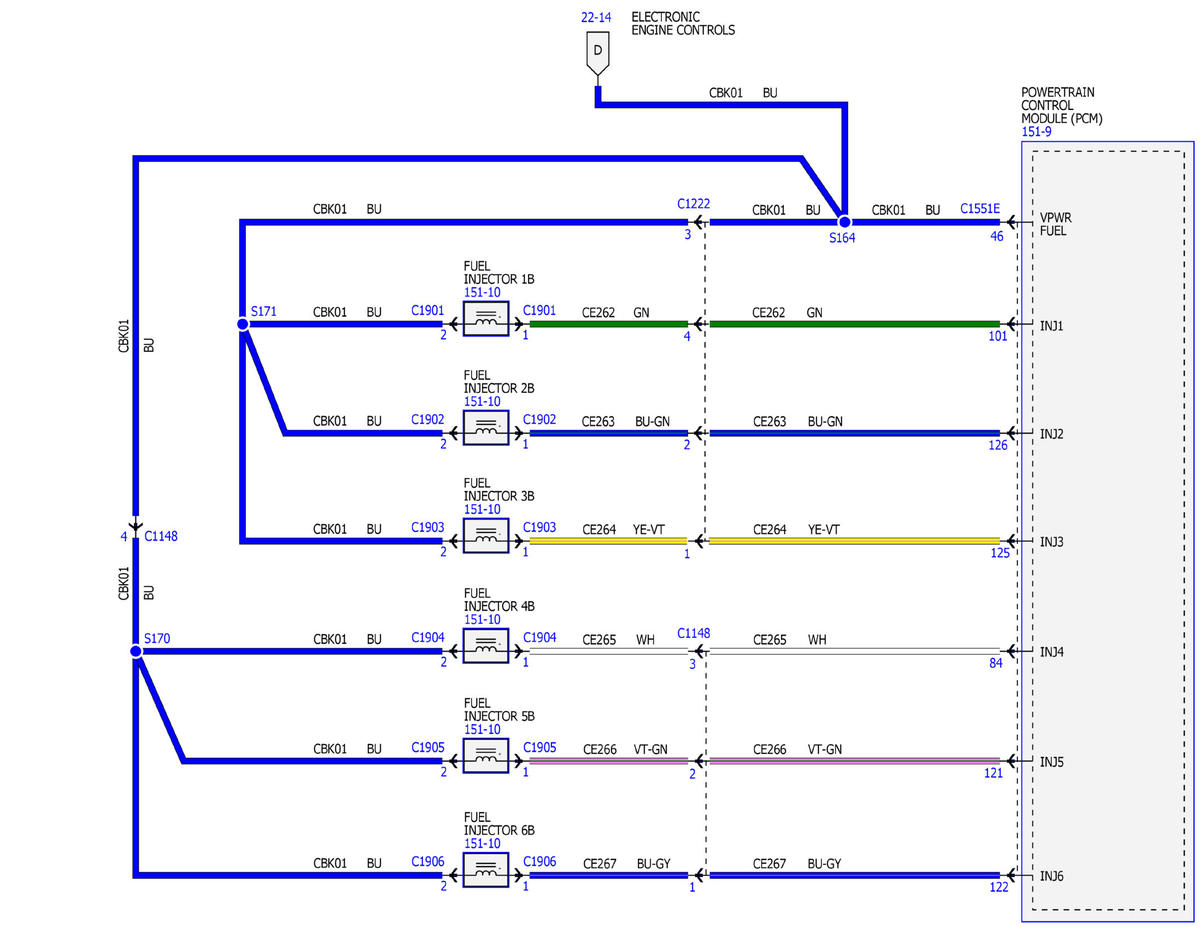

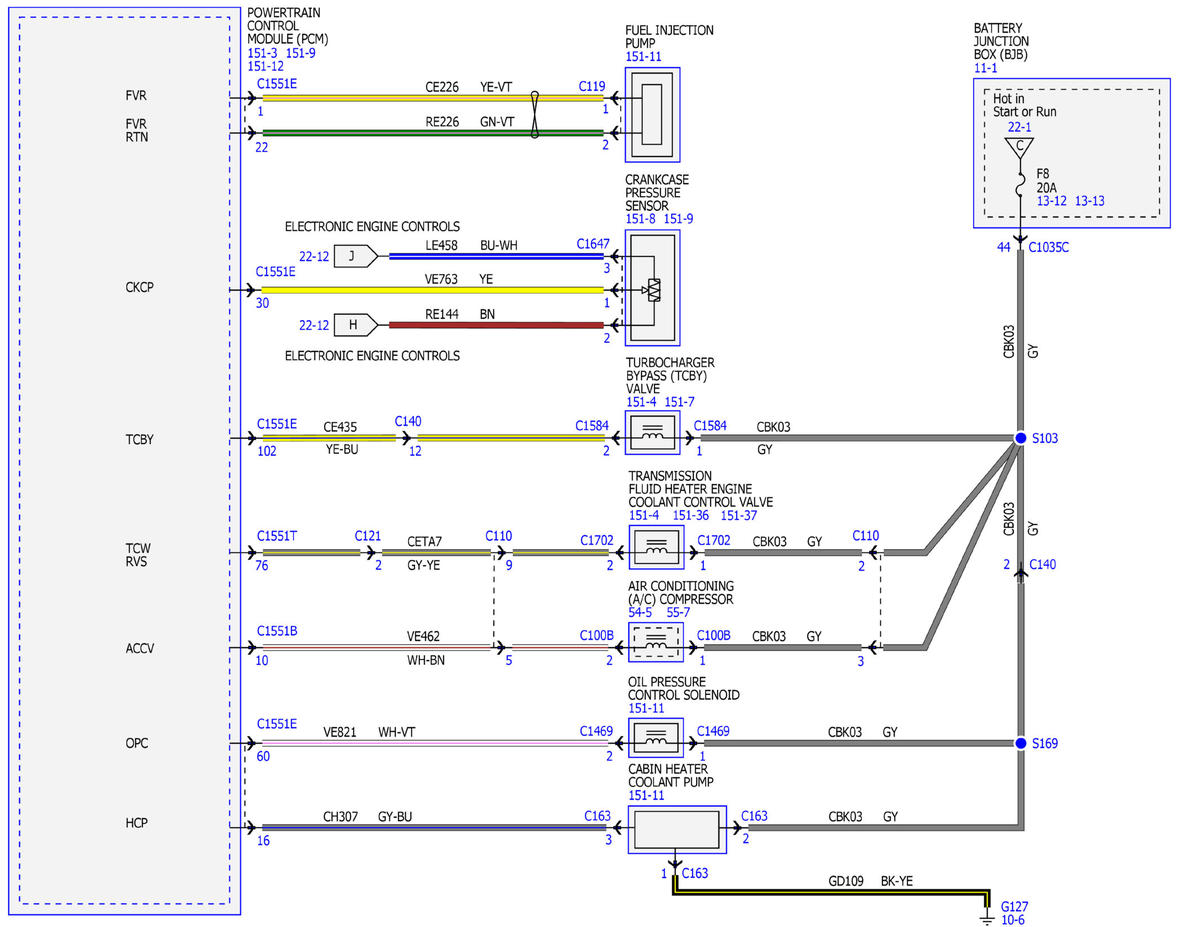

Fig 1: Electronic Engine Controls Wiring Diagrams - 2.7L (1 Of 18)

Courtesy of FORD MOTOR COMPANY

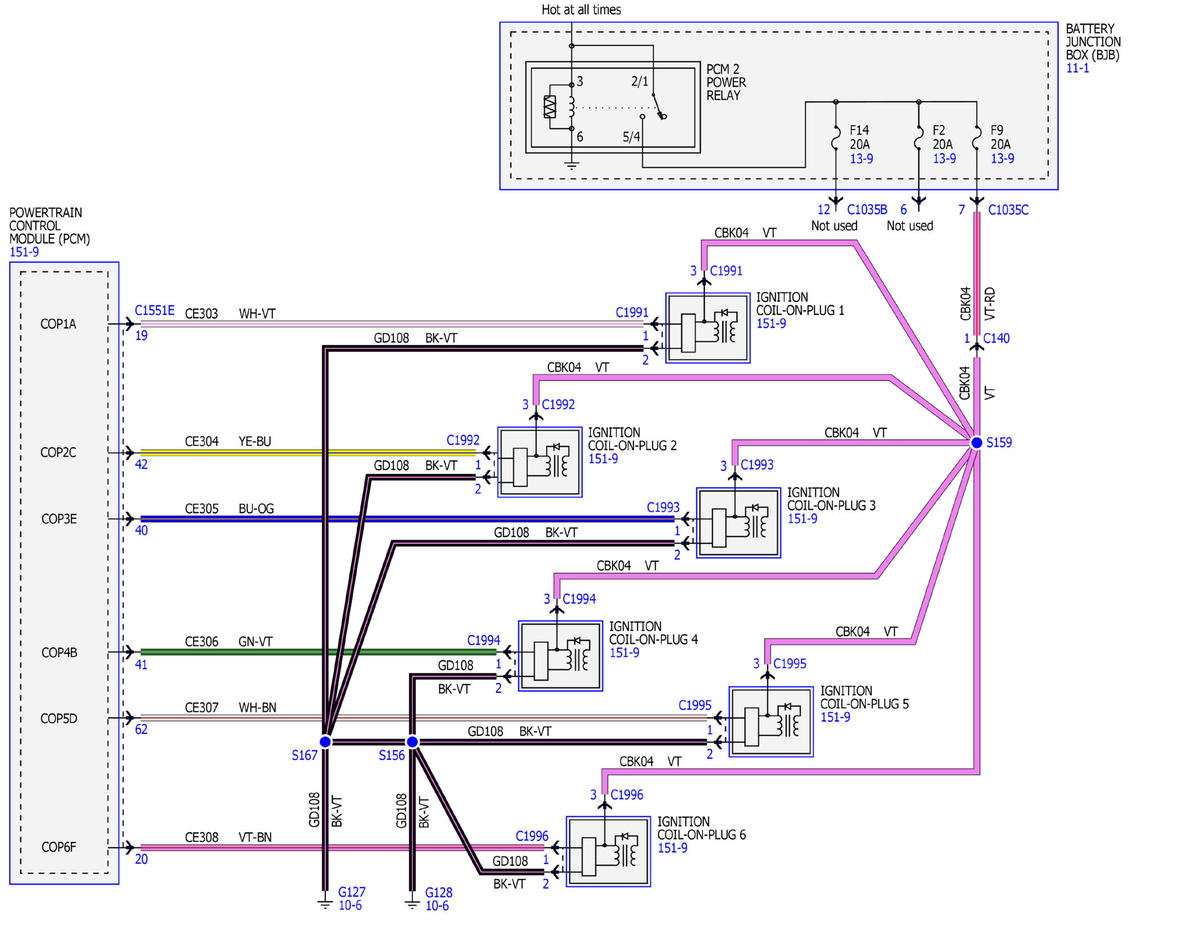

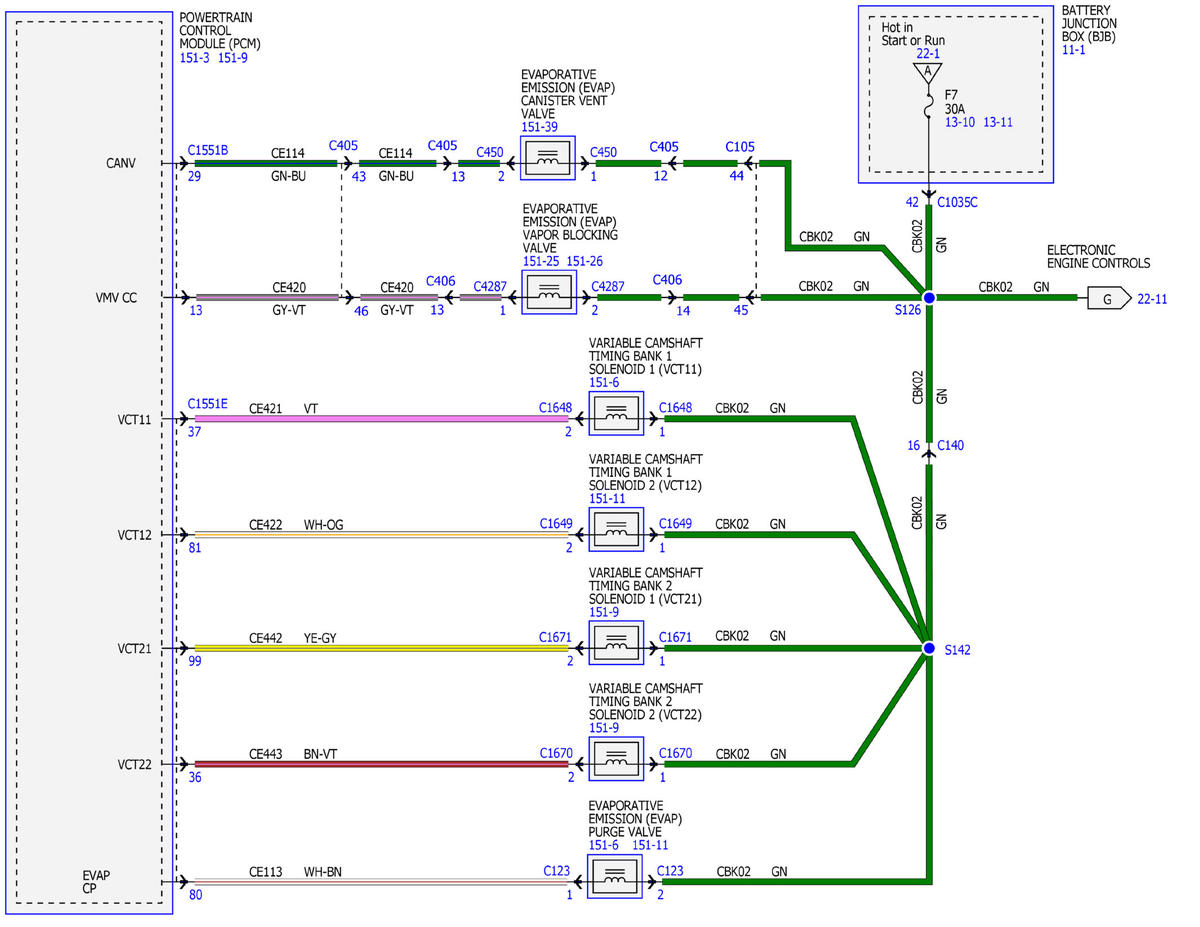

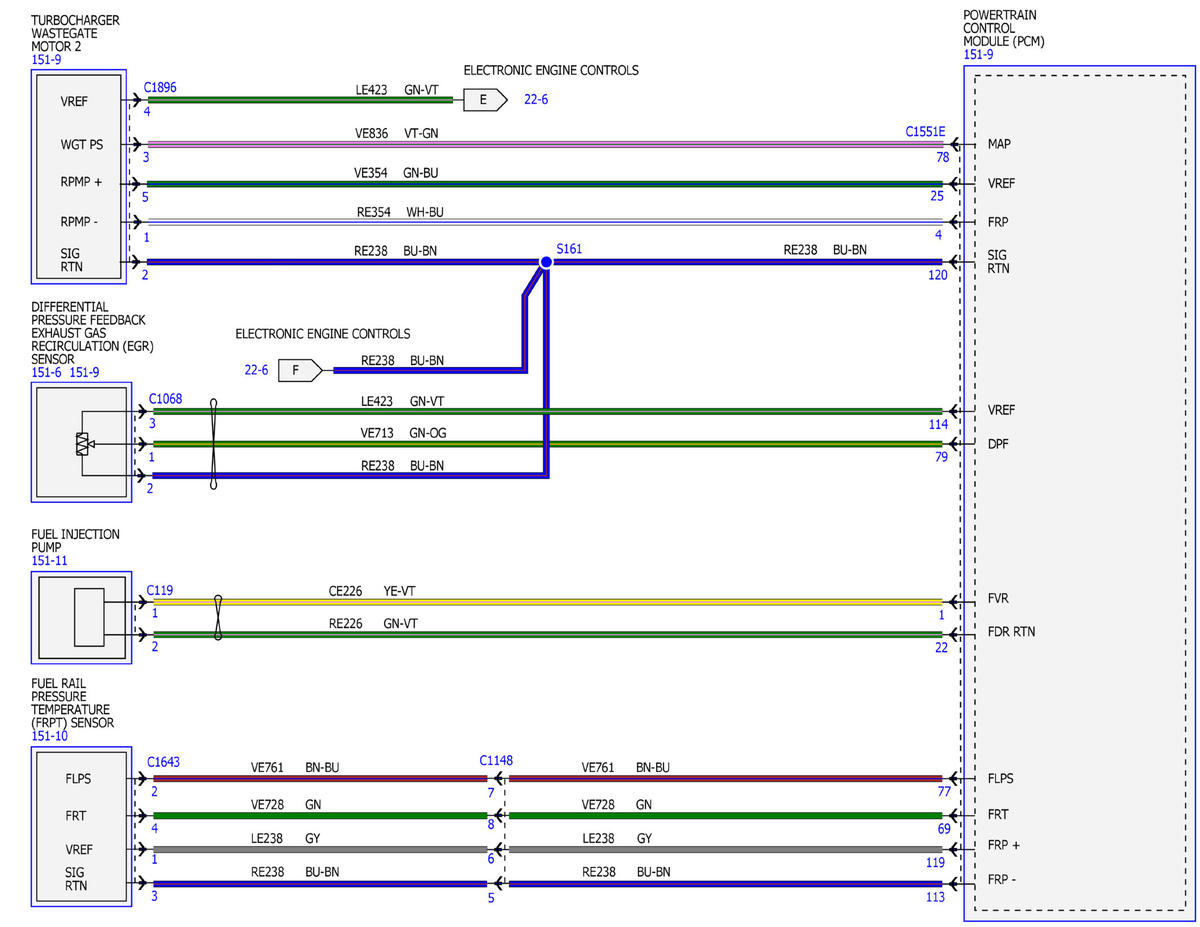

Fig 2: Electronic Engine Controls Wiring Diagrams - 2.7L (2 Of 18)

Courtesy of FORD MOTOR COMPANY

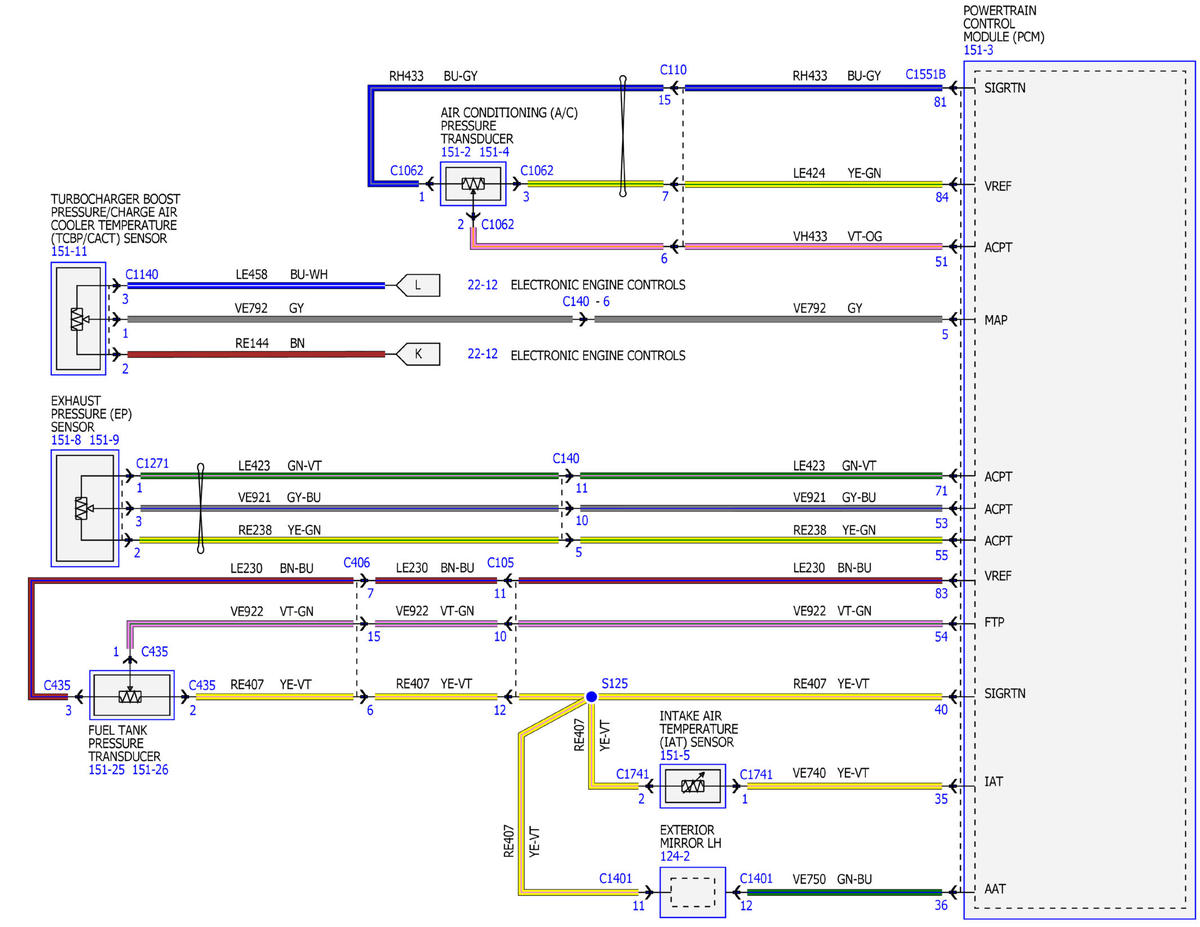

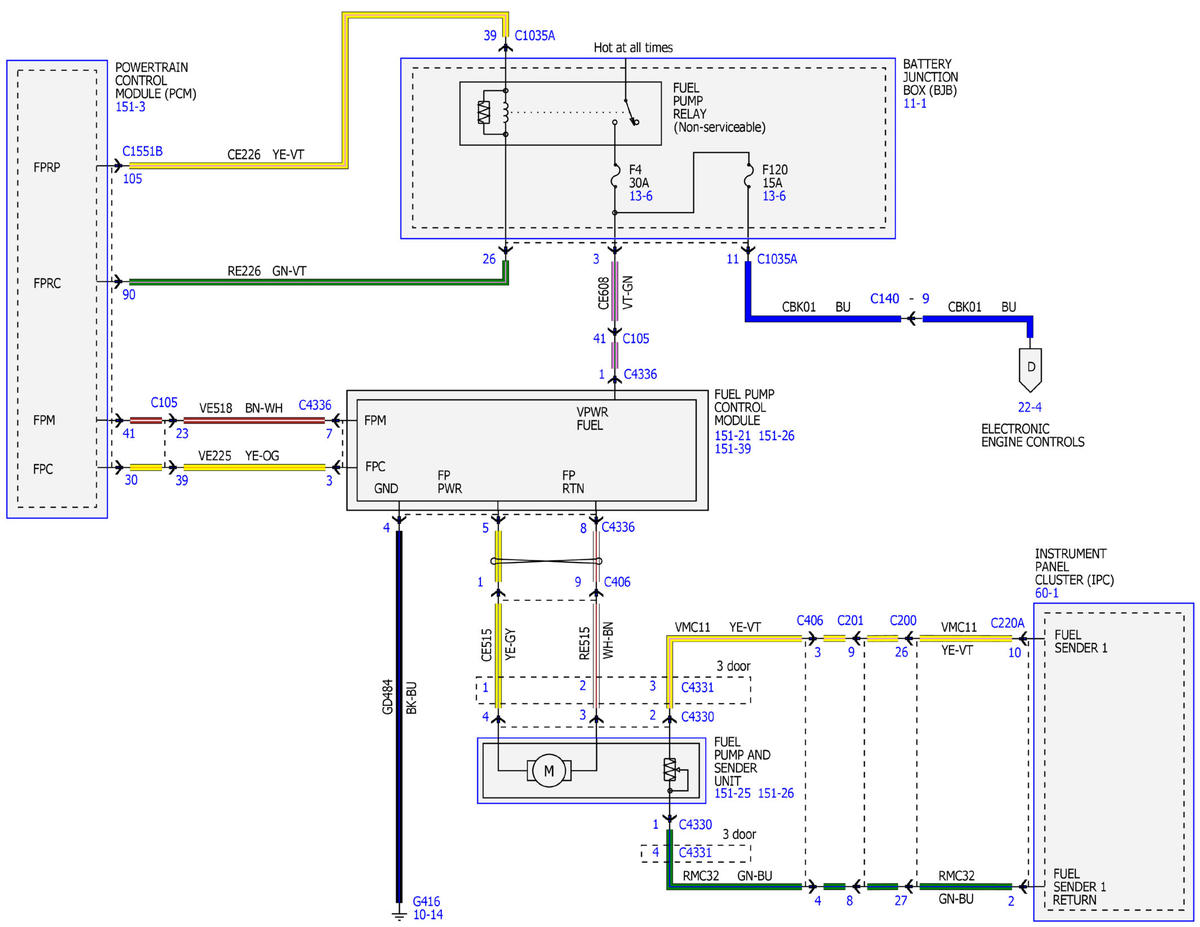

Fig 3: Electronic Engine Controls Wiring Diagrams - 2.7L (3 Of 18)

Courtesy of FORD MOTOR COMPANY

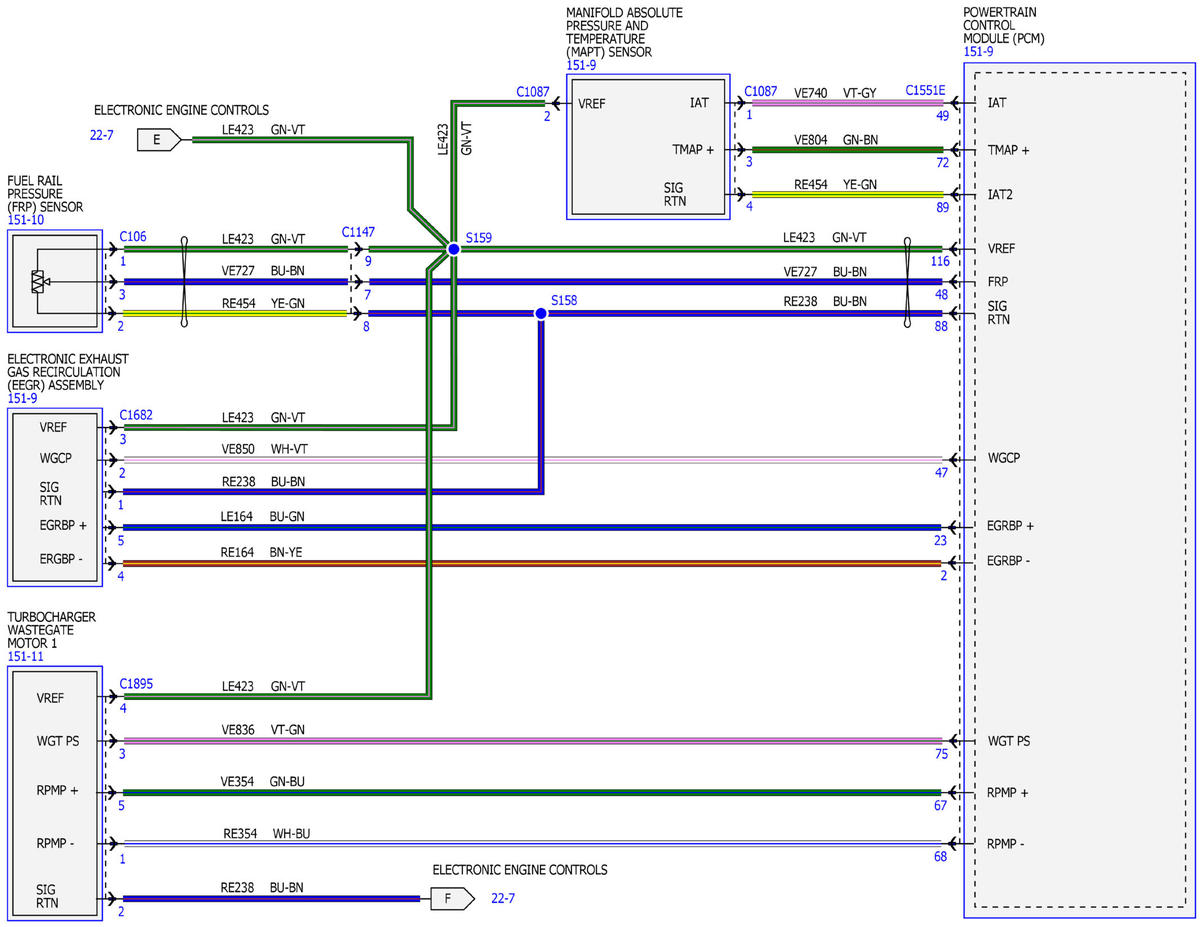

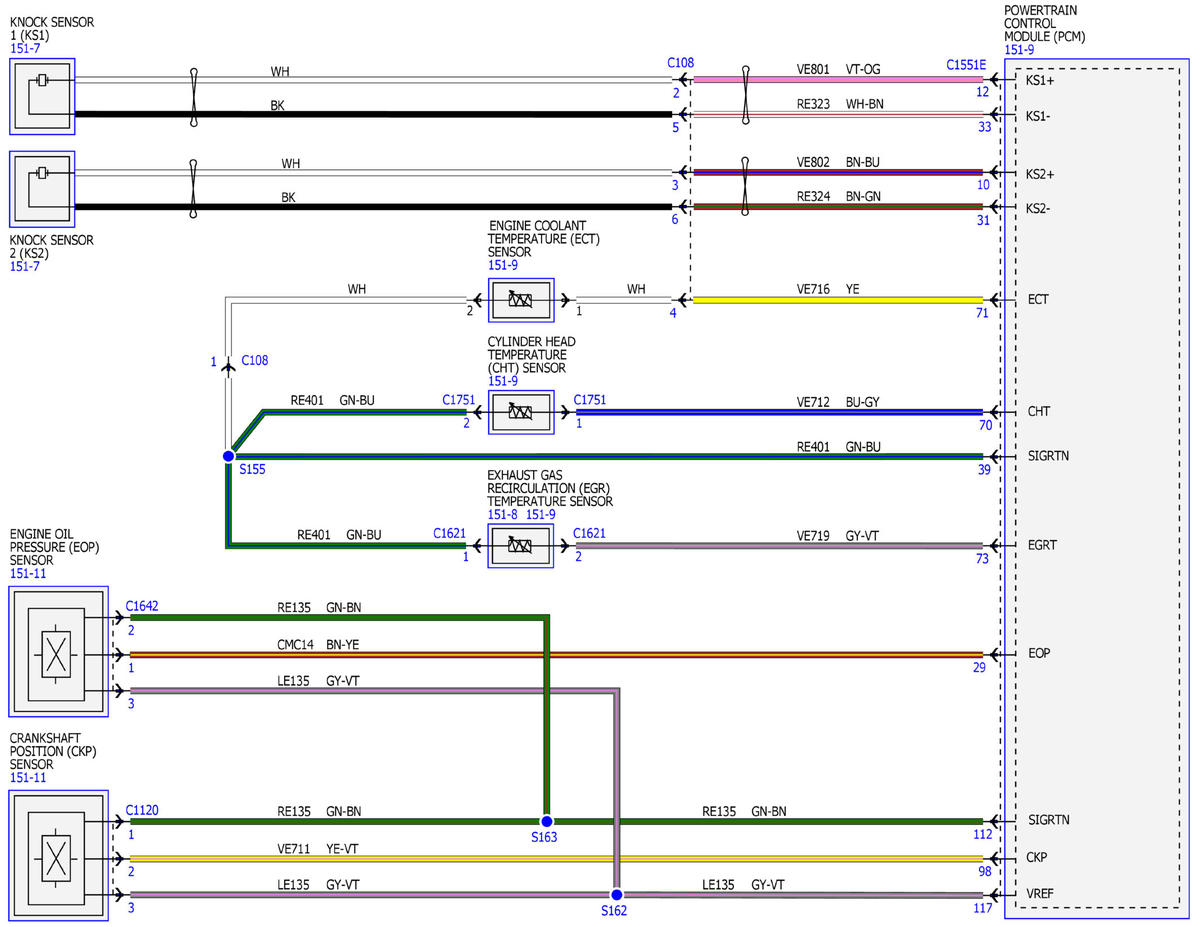

Fig 4: Electronic Engine Controls Wiring Diagrams - 2.7L (4 Of 18)

Courtesy of FORD MOTOR COMPANY

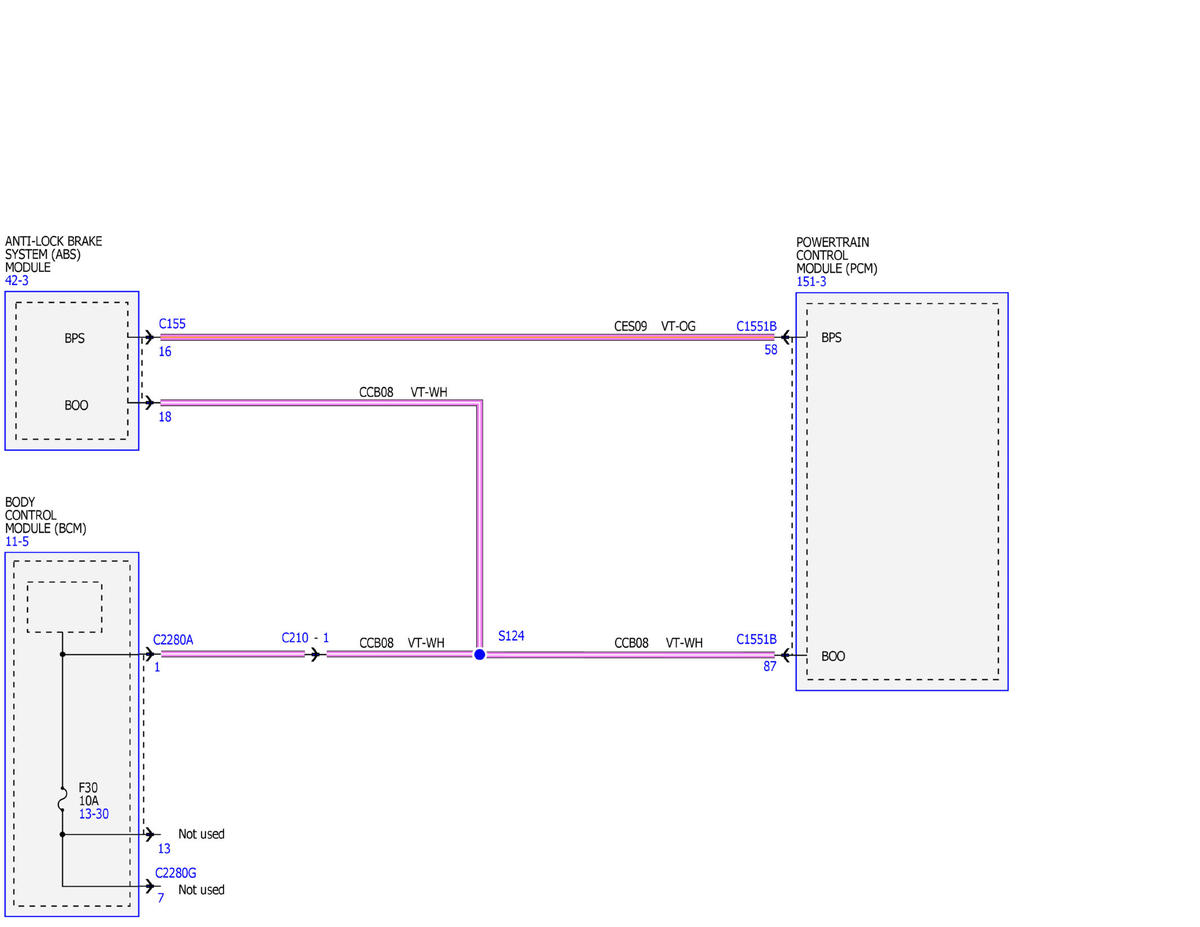

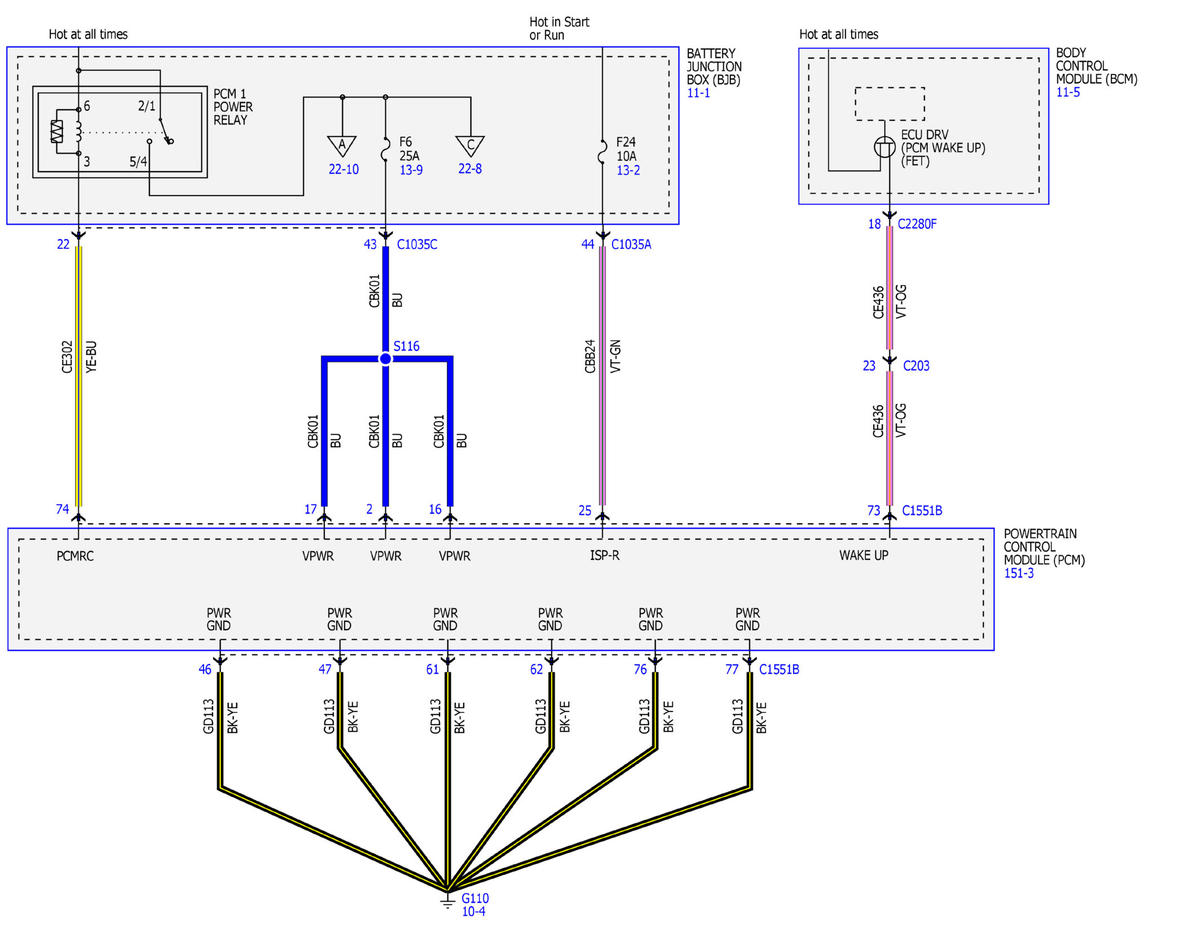

Fig 5: Electronic Engine Controls Wiring Diagrams - 2.7L (5 Of 18)

Courtesy of FORD MOTOR COMPANY

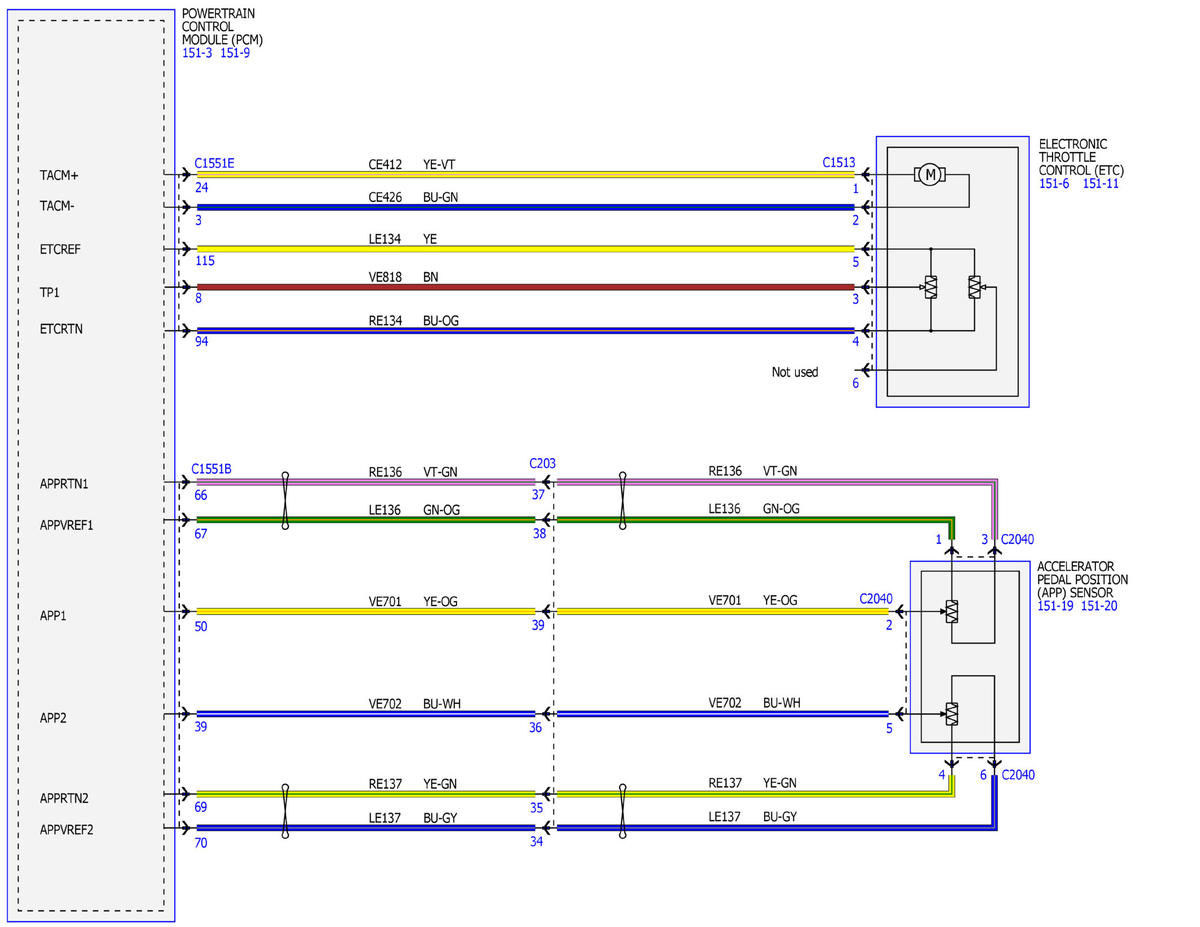

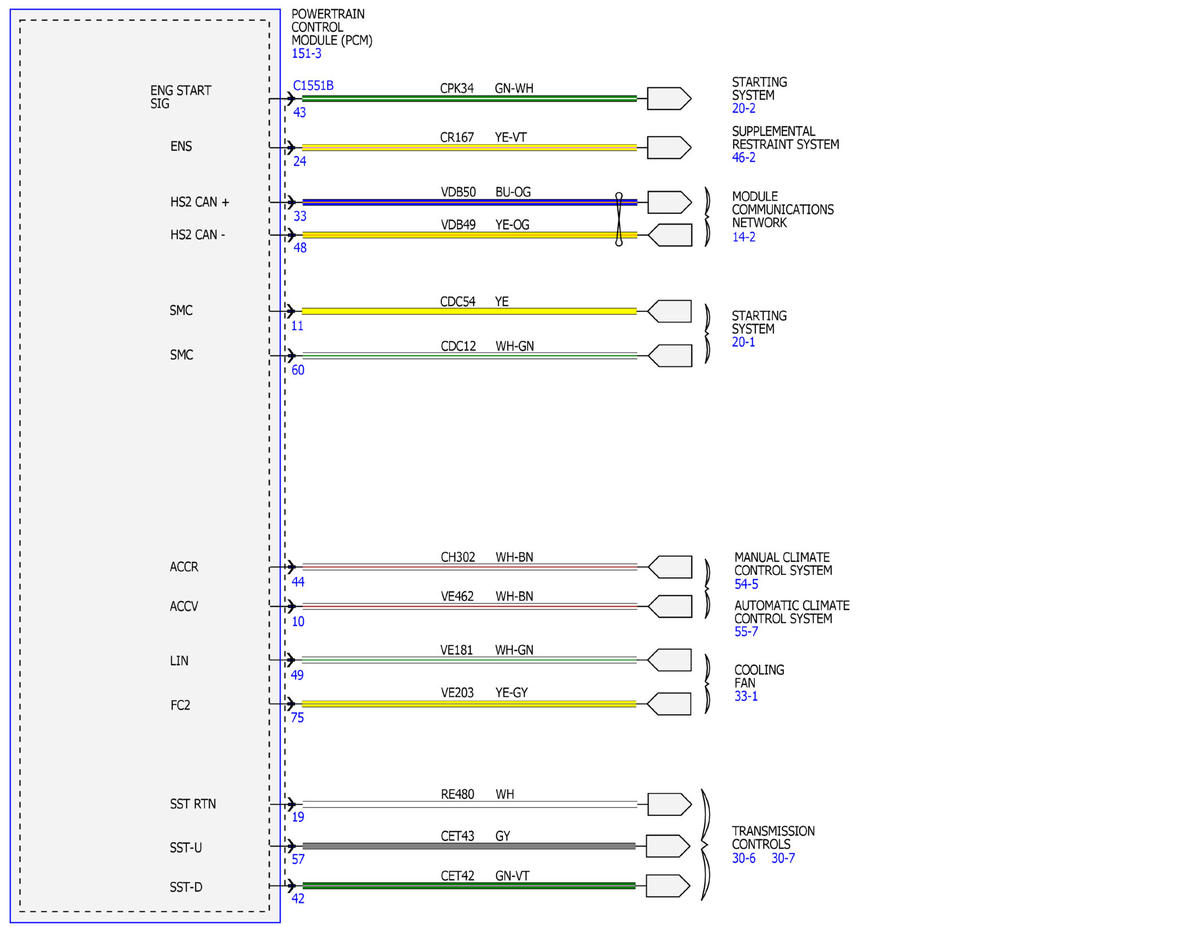

Fig 6: Electronic Engine Controls Wiring Diagrams - 2.7L (6 Of 18)

Courtesy of FORD MOTOR COMPANY

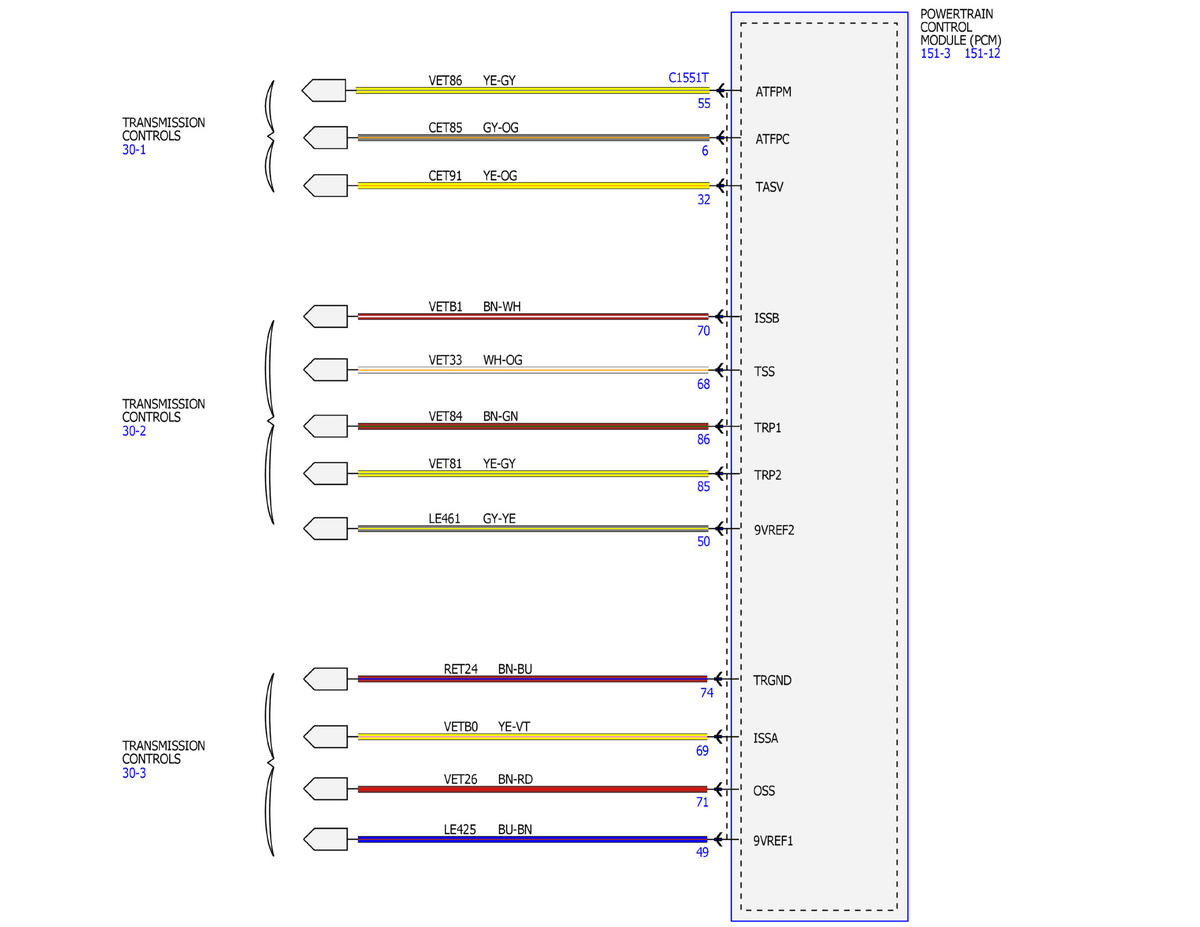

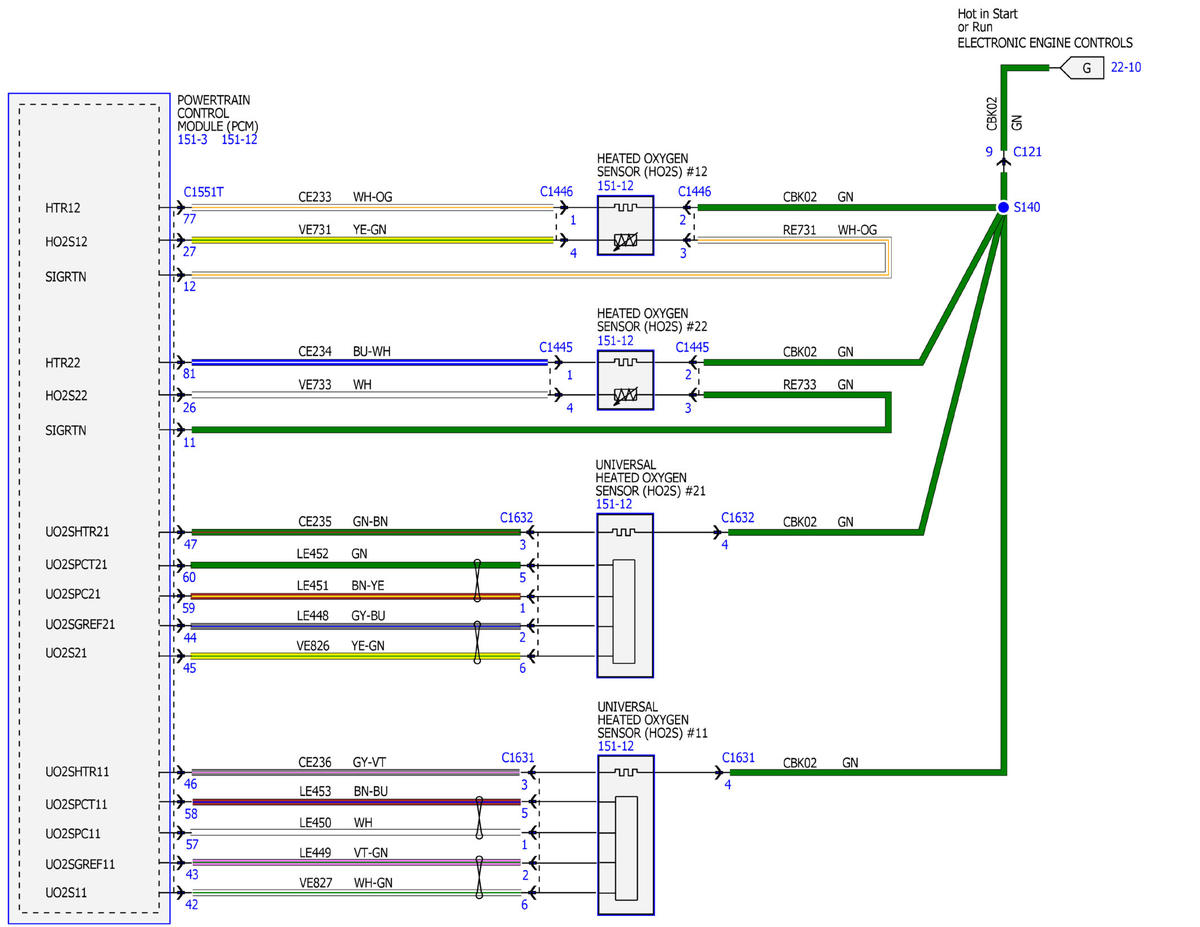

Fig 7: Electronic Engine Controls Wiring Diagrams - 2.7L (7 Of 18)

Courtesy of FORD MOTOR COMPANY

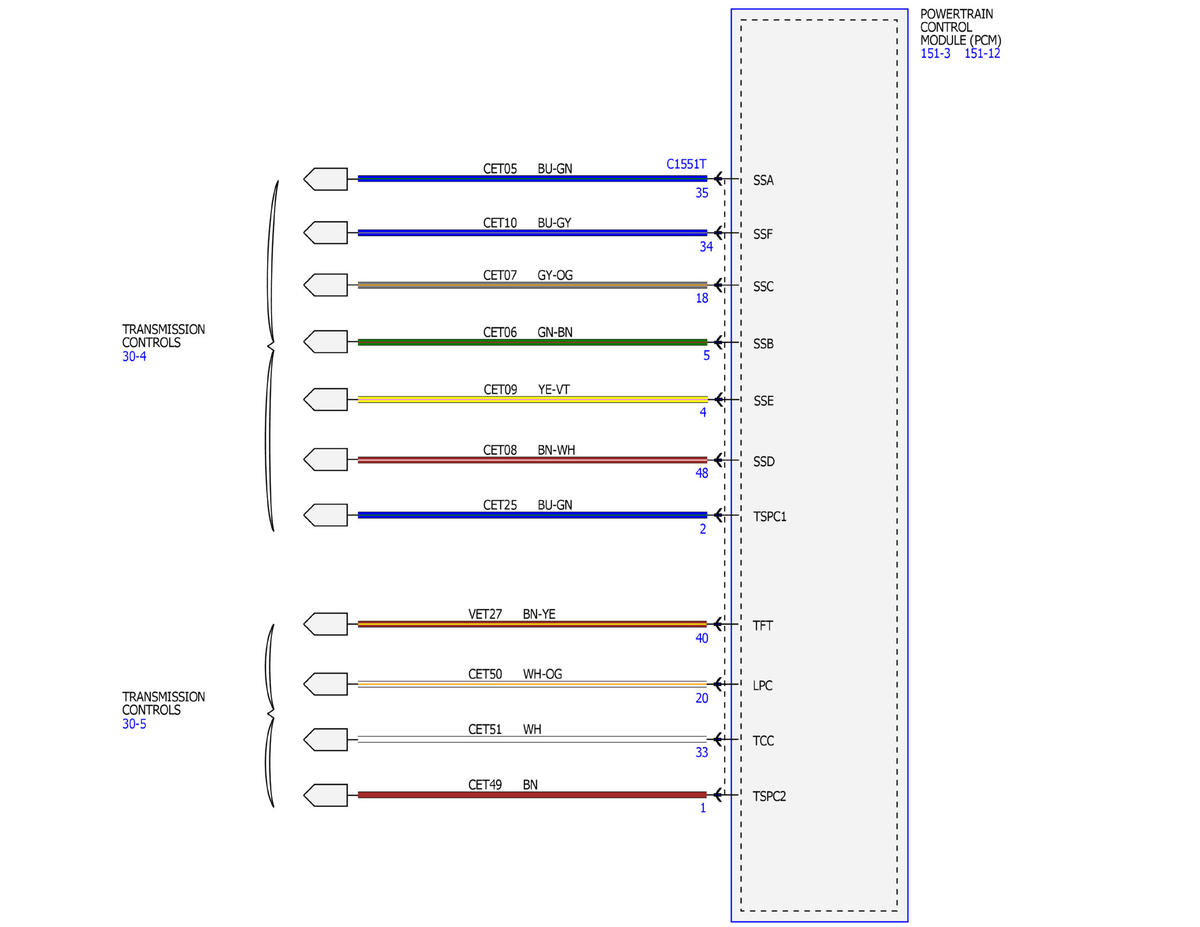

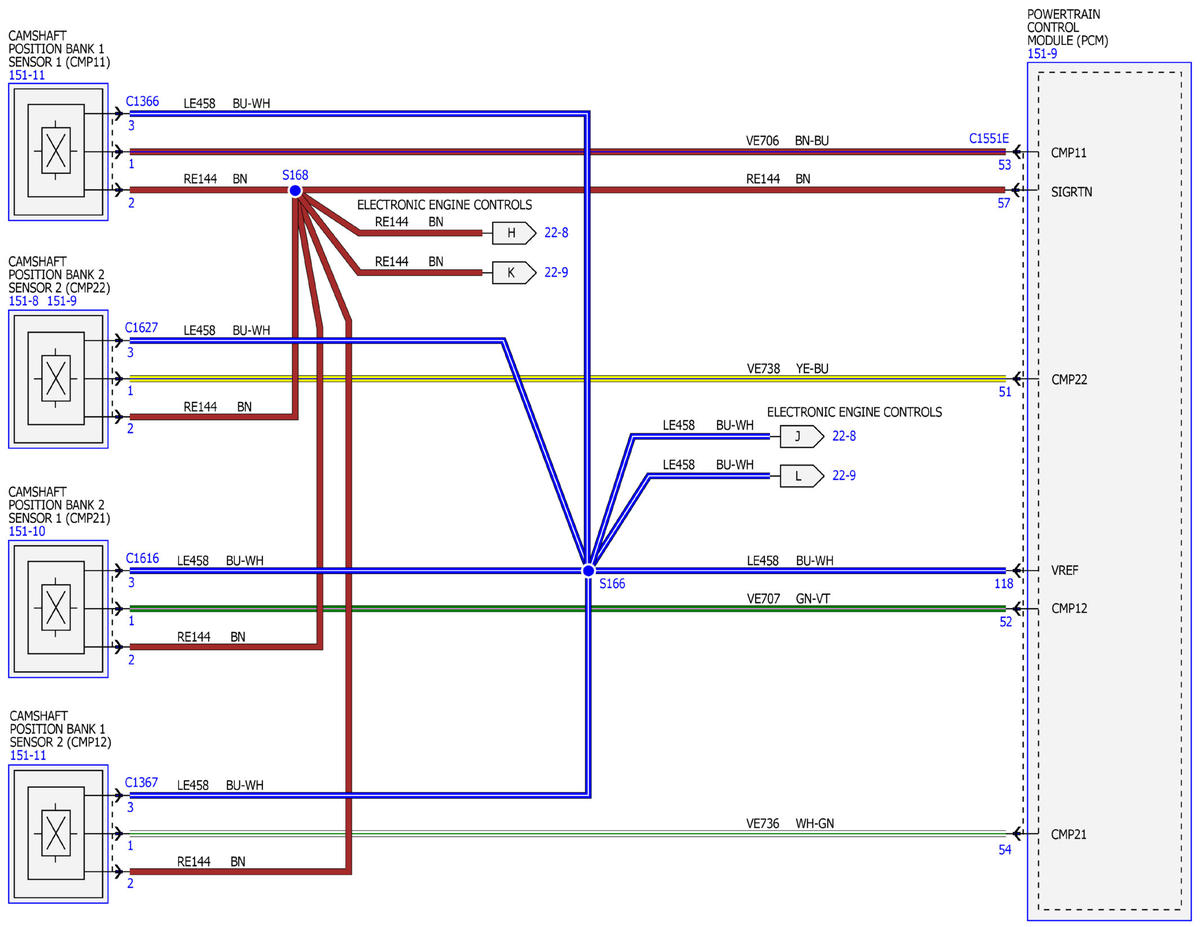

Fig 8: Electronic Engine Controls Wiring Diagrams - 2.7L (8 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls Wiring Diagrams - 2.7L (9 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls Wiring Diagrams - 2.7L (10 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls Wiring Diagrams - 2.7L (11 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls Wiring Diagrams - 2.7L (12 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls Wiring Diagrams - 2.7L (13 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 14: Electronic Engine Controls Wiring Diagrams - 2.7L (14 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 15: Electronic Engine Controls Wiring Diagrams - 2.7L (15 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 16: Electronic Engine Controls Wiring Diagrams - 2.7L (16 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 17: Electronic Engine Controls Wiring Diagrams - 2.7L (17 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 18: Electronic Engine Controls Wiring Diagrams - 2.7L (18 Of 18)

Courtesy of FORD MOTOR COMPANY
