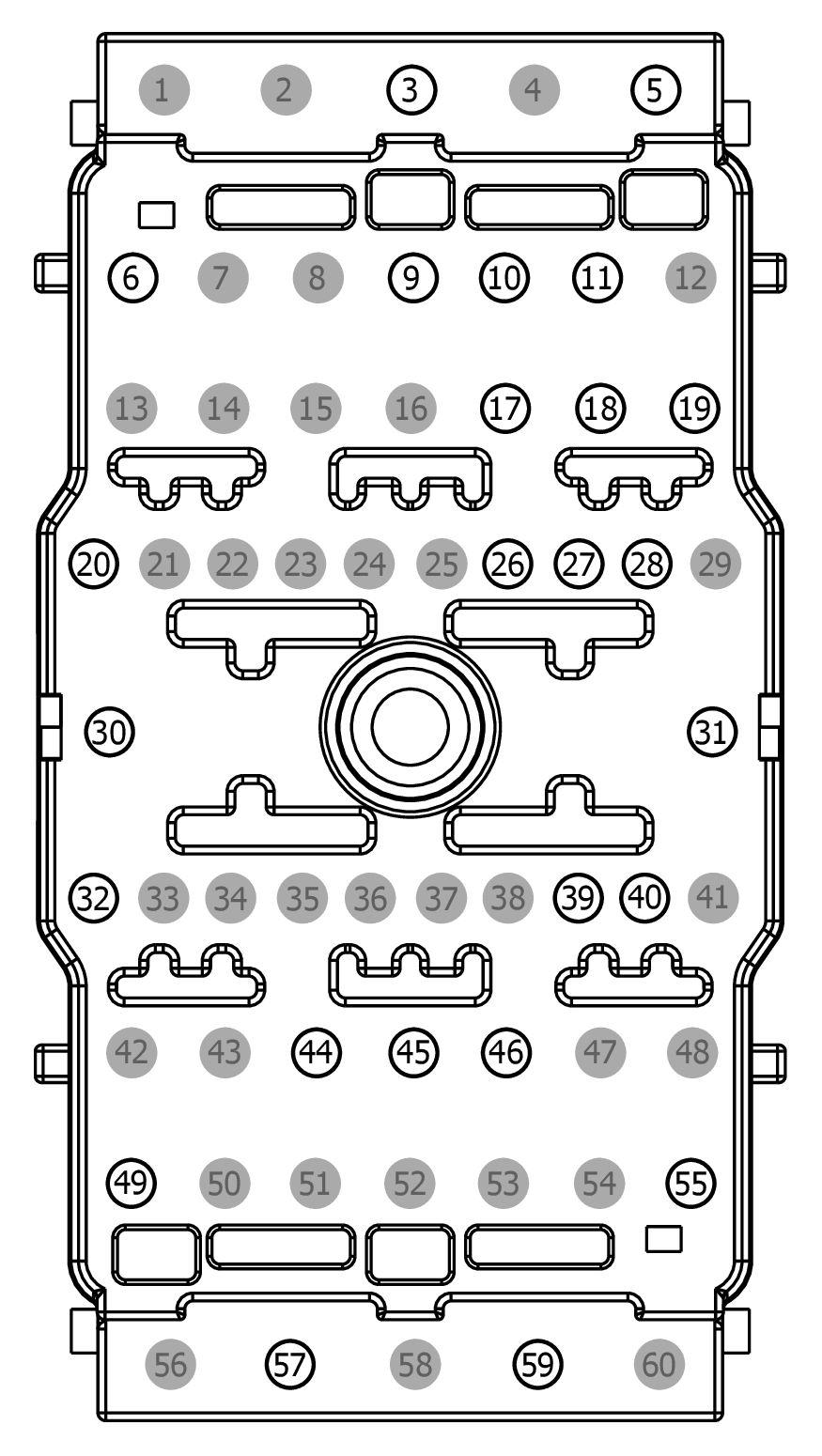

Connector End View C1035A - BATTERY JUNCTION BOX (BJB)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1035A	BATTERY JUNCTION BOX (BJB)	14290			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-BAA	Not Available
BU5T-14474-UA	DU2Z-14474-DA	1.50
CU5T-14474-RA	KU2Z-14474-DA	6.30
DU5T-14474-UBB	KU2Z-14474-DA	6.30
XF2T-14474-BA	EU2Z-14474-AB	2.80
F8VB-14474-AA	EU2Z-14474-AB	2.80
F8VB-14474-BA	EU2Z-14474-AB	2.80
XF2T-14474-CA	EU2Z-14474-AB	2.80

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	CE608 (VT-GN)	12	RELAY - FUEL PUMP	XF2T-14474-BA
4	*	*	Not Used	N/A
5	CDC25 (BN-GN)	12	RELAY - STARTER	F8VB-14474-AA
6	GD120 (BK-GN)	12	GROUND - FENDER FRONT LEFT	F8VB-14474-AA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	CCB08 (VT-WH)	20	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	BU5T-14474-BAA
10	CH401 (VT-WH)	18	RELAY - A/C CLUTCH	BU5T-14474-BAA
11	CBK01 (BU)	18	FUSE - 1 OR CIRCUIT BREAKER (VPWR 1)	BU5T-14474-BAA
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CRH01 (YE-RD)	14	RELAY - HORN	F8VB-14474-AA
18	CRW23 (VT-GN)	16	RELAY - REAR WASHER	F8VB-14474-BA
19	CAC08 (BN)	22	RELAY - UPFITTER #4	XF2T-14474-CA
20	CH302 (WH-BN)	20	CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)	BU5T-14474-UA
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	CE226 (YE-VT)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	BU5T-14474-UA
27	CDC54 (WH-GN)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)	BU5T-14474-UA
28	CDC12 (YE)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)	BU5T-14474-UA
29	*	*	Not Used	N/A
30	CBB69 (WH-VT)	12	FUSE - 69 OR CIRCUIT BREAKER	CU5T-14474-RA
31	CBB13 (GY-BN)	12	FUSE - 13 OR CIRCUIT BREAKER	DU5T-14474-UBB
32	CRW34 (BU-BN)	22	CTRL MOD. - REAR WASHER	BU5T-14474-UA
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	RE226 (GN-VT)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -	BU5T-14474-UA
40	CAC15 (BU-BN)	22	SWITCH - UPFITTER #5	BU5T-14474-UA
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	CBB24 (VT-GN)	20	FUSE - 24 OR CIRCUIT BREAKER	BU5T-14474-BAA
45	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	BU5T-14474-BAA
46	CBB22 (GN-OG)	16	FUSE - 22 OR CIRCUIT BREAKER	F8VB-14474-BA
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	CBB26 (BU-WH)	12	FUSE - 26 OR CIRCUIT BREAKER	XF2T-14474-BA
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	*	*	Not Used	N/A
53	*	*	Not Used	N/A
54	*	*	Not Used	N/A
55	CAC13 (BU-OG)	22	RELAY - UPFITTER #5	XF2T-14474-CA
56	*	*	Not Used	N/A
57	SBB29 (GY-RD)	8	FUSE - 29 OR CIRCUIT BREAKER	DU5T-14474-UBB
58	*	*	Not Used	N/A
59	SBB28 (GN-RD)	8	FUSE - 28 OR CIRCUIT BREAKER	DU5T-14474-UBB
60	*	*	Not Used	N/A
