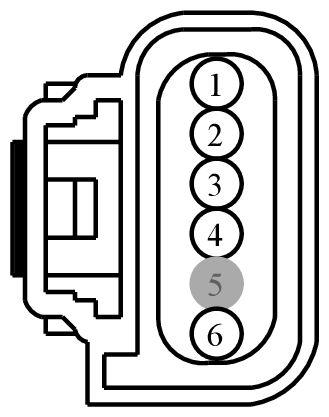

Connector End View C1854 - SELECTED GEAR SENSOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1854 | SELECTED GEAR SENSOR | 7C078 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-RA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LET71 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SENSOR GEAR NEUTRAL + | 3F2T-14474-RA | ||||
| 2 | LETB2 (BN-GN) | 20 | SENSOR - SELECTED GEAR (SGS) SHIFT POSITION 1 | 3F2T-14474-RA | ||||
| 3 | LETB4 (GN-WH) | 20 | SENSOR - SELECTED GEAR (SGS) SHIFT POSITION 3 | 3F2T-14474-RA | ||||
| 4 | LETB3 (VT-GN) | 20 | SENSOR - SELECTED GEAR (SGS) SHIFT POSITION 2 | 3F2T-14474-RA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | RET71 (GY-BN) | 20 | CTRL MOD. - POWERTRAIN # SENSOR GEAR NEUTRAL - | 3F2T-14474-RA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1241
Service Part Number:
3U2Z-14S411-FJAC
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Control - Electronic Throttle
- Sensor - Mass Air Flow
