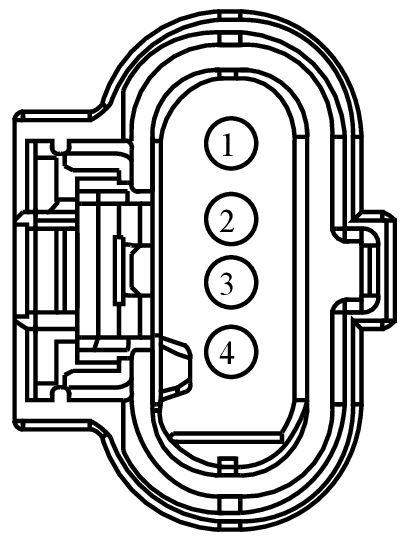

Connector End View C1690 - CLUTCH MASTER CYLINDER PUSH ROD POSITION SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1690	CLUTCH MASTER CYLINDER PUSH ROD POSITION SENSOR	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-DAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE757 (WH)	20	SENSOR - CLUTCH MASTER CYLINDER 2 (CPP2)	EU5T-14474-DAB
2	LE456 (VT-WH)	20	CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER +	EU5T-14474-DAB
3	VE772 (YE-BU)	20	SENSOR - CLUTCH MASTER CYLINDER 1 (CPP1)	EU5T-14474-DAB
4	RE456 (BU-OG)	20	CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER -	EU5T-14474-DAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1537

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ACA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Module - Differential Oil Temperature
• Module - Particulate Matter Bank Sensor
• Module - Reductant Quality
• Noise Generator
• Sensor - Fuel Rail Pressure and Temperature
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Turbo Intake Pressure/Temperature
• Valve - Active Exhaust Solenoid
