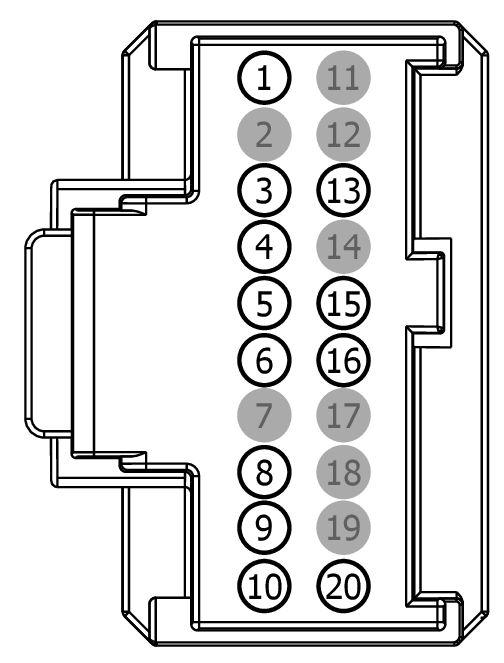

Connector End View C4226A - PARKING AID MODULE (PAM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4226A	PARKING AID MODULE (PAM)	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP37 (WH)	18	FUSE - 37 OR CIRCUIT BREAKER	9U5T-14474-EB
2	*	*	Not Used	N/A
3	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +	9U5T-14474-DB
4	CMP02 (GN-BU)	22	CTRL MOD. - PARKING AID # INDICATOR STATUS	9U5T-14474-DB
5	VMP17 (YE-OG)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	9U5T-14474-DB
6	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	9U5T-14474-DB
7	*	*	Not Used	N/A
8	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-EB
9	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-EB
10	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -	9U5T-14474-DB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CMP18 (GN-BN)	22	SWITCH - PARKING AID	9U5T-14474-DB
14	*	*	Not Used	N/A
15	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)	9U5T-14474-DB
16	VMP15 (YE-GN)	22	SENSOR - PARKING AID # REAR # (LEFT OUTER)	9U5T-14474-DB
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	GD351 (BK-GN)	20	GROUND - PILLAR D RIGHT	BU5T-14474-UA\|9U5T-14474-DB
20	GD351 (BK-GN)	22	GROUND - PILLAR D RIGHT	BU5T-14474-UA\|9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:
