System Diagram
WARNING: This page is about a different car, the 2021 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

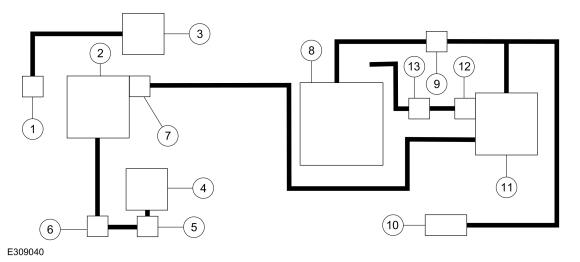

| Item | Description |
|---|---|
| 1 | Air Cleaner (ACL) outlet pipe |
| 2 | Intake manifold |
| 3 | RH valve cover |
| 4 | LH valve cover |
| 5 | PCV valve (part of LH valve cover) |
| 6 | Crankcase Vent Oil Separator |
| 7 | EVAP canister purge valve |
| 8 | Fuel tank |
| 9 | Fuel Tank Pressure (FTP) sensor and tube |
| 10 | Fuel tank filler pipe |
| 11 | EVAP canister |
| 12 | EVAP canister inlet filter |
| 13 | EVAP canister vent solenoid |
