Electric Powertrain Cooling - Component Location
WARNING: This page is about a different car, the 2021 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 50 deg. C (122 deg. F). Red arrows indicate a temperature over 70 deg. C (158 deg. F), Orange arrows indicate a temperature of approximately 70 deg. C (158 deg. F), Blue arrows indicate a temperature below 70 deg. C (158 deg. F).

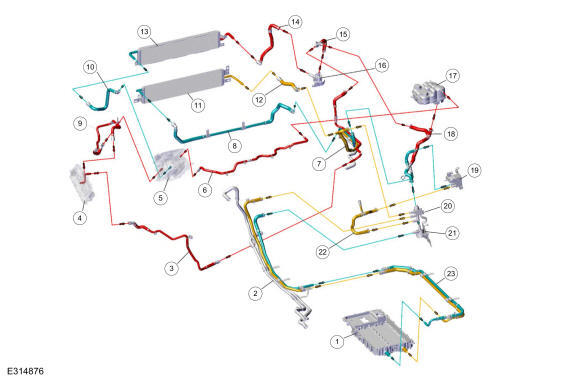

HEV
| Item | Description |
|---|---|
| 1 | High voltage traction battery cooler |
| 2 | Heater hose assembly |
| 3 | High to low voltage converter outlet hose |
| 4 | High to low voltage converter |
| 5 | Transmission inverter control module |
| 6 | Degas bottle hose |
| 7 | Battery cooler hose assembly |
| 8 | High voltage battery radiator outlet hose |
| 9 | High to low voltage converter inlet hose |
| 10 | Electric motor electronics radiator outlet hose |
| 11 | High voltage battery radiator |
| 12 | High voltage battery radiator inlet hose |
| 13 | Electric motor electronics radiator |
| 14 | Electric motor electronics radiator inlet hose |
| 15 | Electric motor electronic coolant pump inlet hose |
| 16 | Electric motor electronics coolant pump |
| 17 | Degas bottle |
| 18 | High voltage battery cooler hose assembly |
| 19 | High voltage battery cooler (if equipped) |
| 20 | High voltage battery coolant diverter valve |
| 21 | High voltage battery coolant pump |
| 22 | High voltage battery coolant diverter valve outlet hose |
| 23 | High voltage cooler hose assembly |

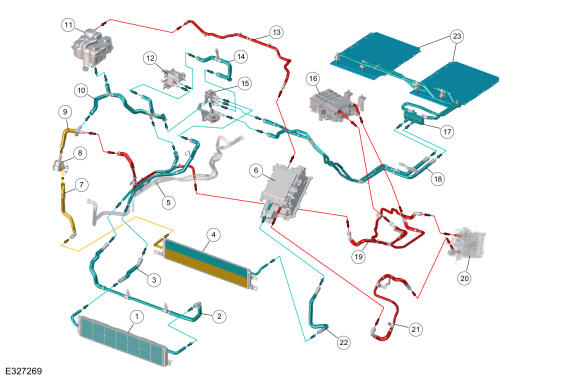

PHEV
| Item | Description |
|---|---|
| 1 | High voltage battery radiator |
| 2 | High voltage battery radiator outlet hose |
| 3 | High voltage battery radiator inlet hose |
| 4 | Electric motor electronics radiator |
| 5 | High voltage battery cooler hose assembly |
| 6 | Transmitter inverter control module |
| 7 | Electric motor electronics radiator inlet hose |
| 8 | Electric motor electronics coolant pump |
| 9 | Electric motor electronics coolant pump inlet hose |
| 10 | Degas bottle hose assembly |
| 11 | Degas bottle |
| 12 | High voltage battery coolant cooler |
| 13 | Degas bottle inlet hose |
| 14 | High voltage battery coolant diverter valve outlet hose |
| 15 | High voltage battery coolant diverter valve |
| 16 | High voltage battery charger |
| 17 | High voltage battery cooler header port |
| 18 | High voltage battery cooler hose assembly |
| 19 | High voltage to low voltage converter outlet hose |
| 20 | High voltage to low voltage converter assembly |
| 21 | High voltage to low voltage converter inlet hose |
| 22 | Electric motor electronics radiator outlet hose |
