Transmission Fluid Cooler Coolant Control Valve: Removal
WARNING: This page is about a different car, the 2021 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: Front Bumper Cover
- WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
Loosen the pressure relief cap.

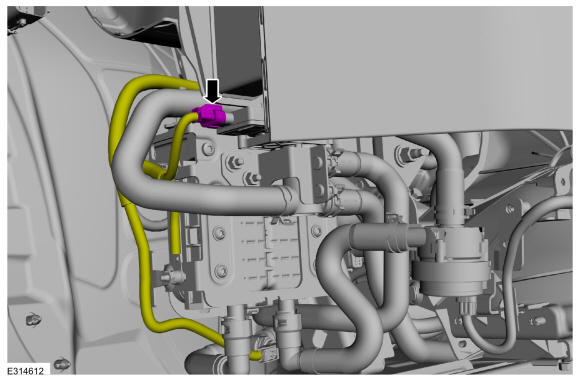

- Disconnect the coolant control valve electrical connector.

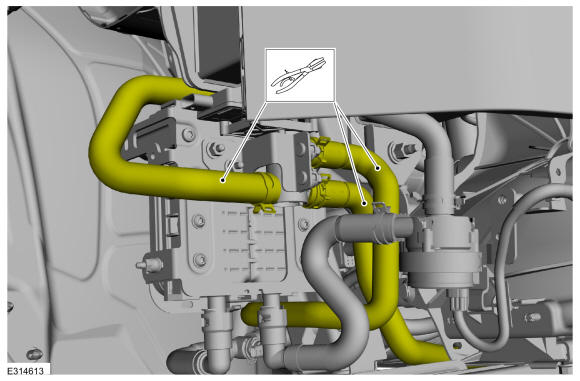

- Clamp off the coolant control valve hoses.

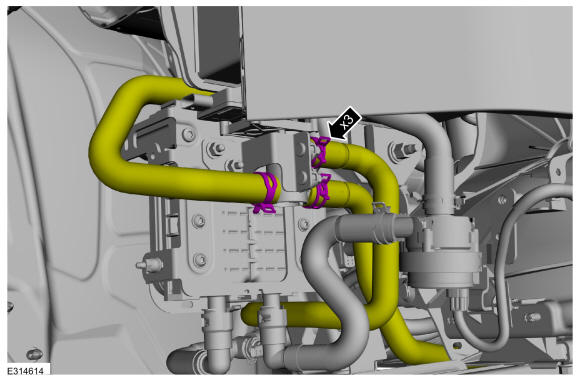

- Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

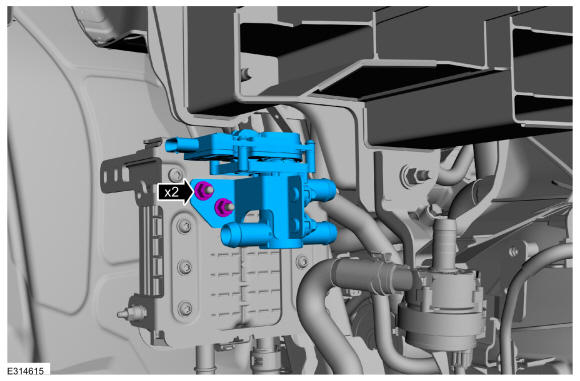

- Remove the nuts and the transmission fluid cooler control valve.
Torque: 93 lb.in (10.5 Nm)
|
