Connector End View (C126) - INLINE

WARNING: This page is about a different car, the 2021 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C126	INLINE	BK	1430014290	Not Available

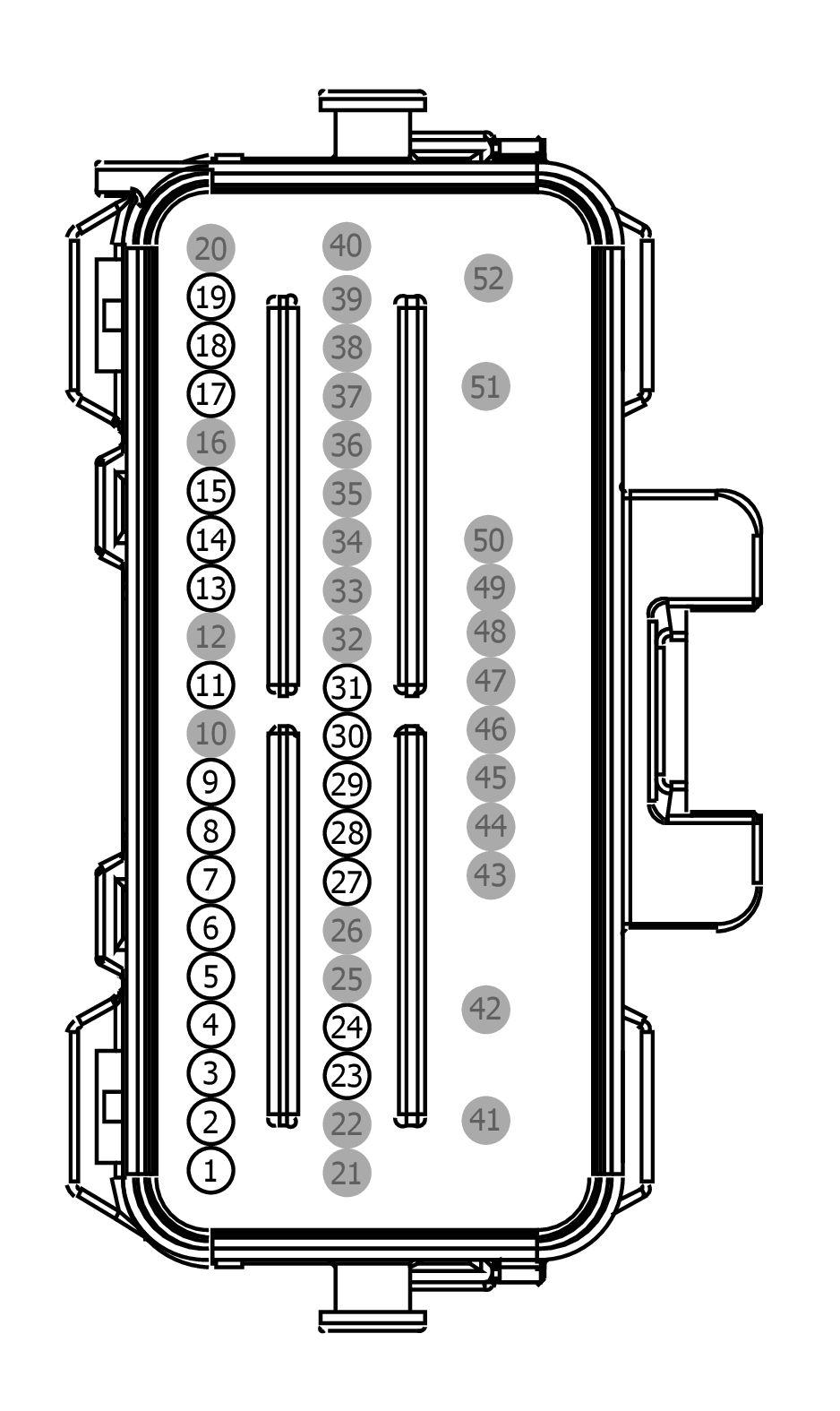

MALE

Harness

14300

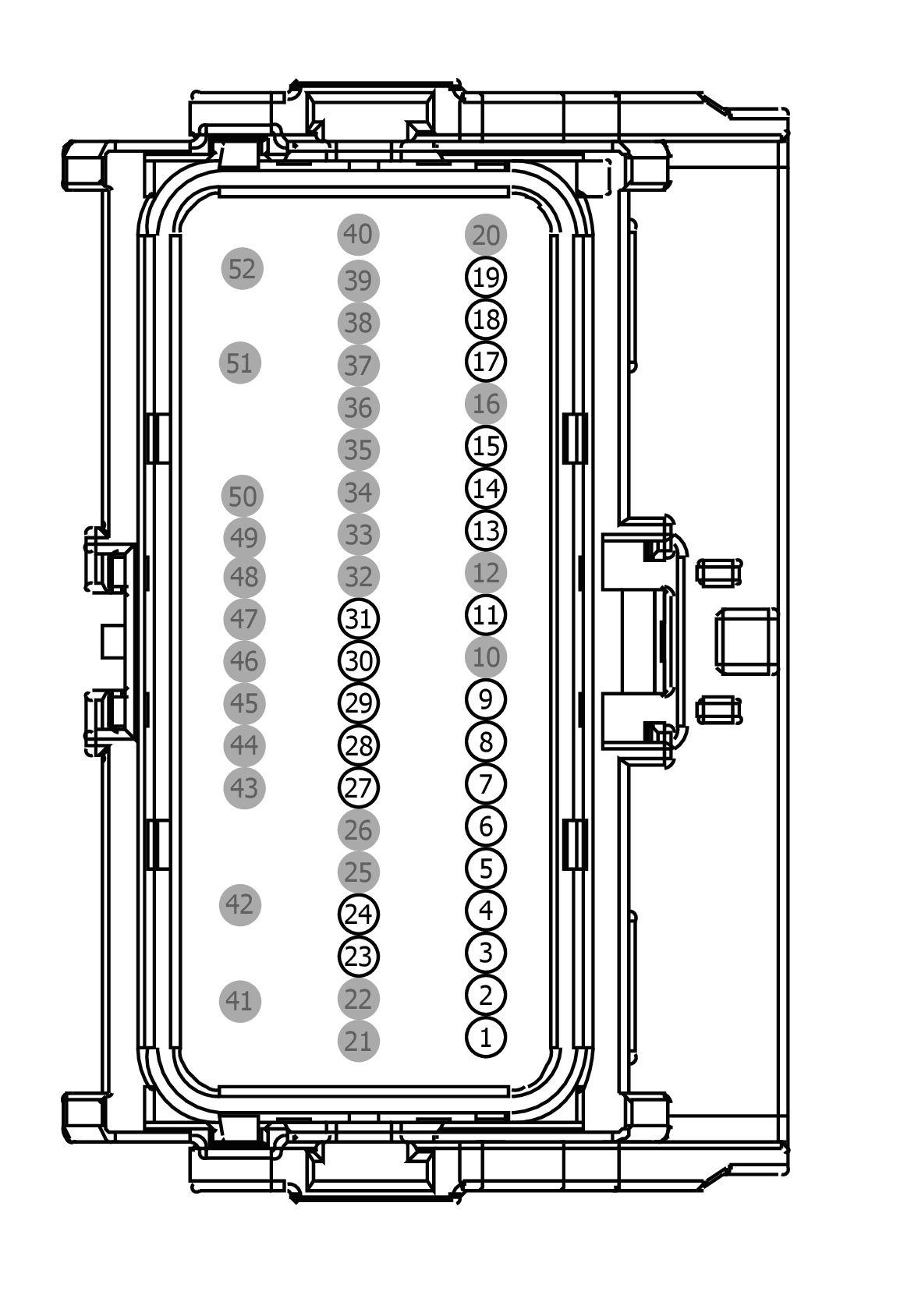

FEMALE

Harness

14290

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14421-CA	EU2Z-14421-BA	0.64
9U5T-14421-BA	EU2Z-14421-BA	0.64
CU5T-14474-DB	DU2Z-14474-CA	0.64
CU5T-14474-EB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB07 (GN-BU)	18	9U5T-14421-CA
2	VE940 (GN-BU)	20	9U5T-14421-BA
3	VE941 (BN)	20	9U5T-14421-BA
4	CR167 (YE-VT)	18	PHEV	9U5T-14421-CA
4	CR167 (YE-VT)	20	FHEV	9U5T-14421-BA
5	CYD14 (GN-BN)	20	FHEV	9U5T-14421-BA
5	CYD14 (GN-BN)	22	PHEV	9U5T-14421-BA
6	SBBE6 (YE-RD)	20	9U5T-14421-BA
7	VE793 (GN)	20	9U5T-14421-BA
8	RE793 (VT-GY)	20	9U5T-14421-BA
9	VE794 (YE)	20	9U5T-14421-BA
10	*	*	N/A
11	CBBG9 (VT-GY)	18	PHEV	9U5T-14421-CA
11	CBBG9 (VT-GY)	20	FHEV	9U5T-14421-BA
12	*	*	N/A
13	VYB30 (YE-GN)	18	PHEV	9U5T-14421-CA
13	VYB30 (YE-GN)	20	FHEV	9U5T-14421-BA
14	CYT14 (VT-OG)	18	PHEV	9U5T-14421-CA
14	CYT14 (VT-OG)	20	FHEV	9U5T-14421-BA
15	VDN04 (VT-WH)	18	9U5T-14421-CA
16	*	*	N/A
17	SBB46 (BN-RD)	20	9U5T-14421-BA
18	CYC03 (BN-GN)	20	9U5T-14421-BA
19	VYC11 (BU-WH)	22	9U5T-14421-BA
20	*	*	N/A
21	*	*	N/A
22	*	*	N/A
23	VYB61 (BU-OG)	22	9U5T-14421-BA
24	VYB62 (GY-BU)	22	9U5T-14421-BA
25	*	*	N/A
26	*	*	N/A
27	VDB04 (BU)	22	9U5T-14421-BA
28	VDB05 (WH)	22	9U5T-14421-BA
29	VDB04 (BU)	22	9U5T-14421-BA
30	VDB05 (WH)	22	9U5T-14421-BA
31	RE794 (BU)	20	9U5T-14421-BA
32	*	*	N/A
33	*	*	N/A
34	*	*	N/A
35	*	*	N/A
36	*	*	N/A
37	*	*	N/A
38	*	*	N/A
39	*	*	N/A
40	*	*	N/A
41	*	*	N/A
42	*	*	N/A
43	*	*	N/A
44	*	*	N/A
45	*	*	N/A
46	*	*	N/A
47	*	*	N/A
48	*	*	N/A
49	*	*	N/A
50	*	*	N/A
51	*	*	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB07 (GN-BU)	18	CU5T-14474-DB
2	VE940 (GN-BU)	22	CU5T-14474-EB
3	VE941 (BN)	22	CU5T-14474-EB
4	CR167 (YE-VT)	22	CU5T-14474-EB
5	CYD14 (GN-BN)	22	CU5T-14474-EB
6	SBBE6 (YE-RD)	22	CU5T-14474-EB
7	VE793 (GN)	22	CU5T-14474-EB
8	RE793 (VT-GY)	22	CU5T-14474-EB
9	VE794 (YE)	22	CU5T-14474-EB
10	*	*	N/A
11	CBBG9 (VT-GY)	20	CU5T-14474-EB
12	*	*	N/A
13	VYB30 (YE-GN)	22	CU5T-14474-EB
14	CYT14 (VT-OG)	22	CU5T-14474-EB
15	VDN04 (VT-WH)	22	CU5T-14474-EB
16	*	*	N/A
17	SBB46 (BN-RD)	22	CU5T-14474-EB
18	CYC03 (BN-GN)	22	CU5T-14474-EB
19	VYC11 (BU-WH)	22	CU5T-14474-EB
20	*	*	N/A
21	*	*	N/A
22	*	*	N/A
23	VYB61 (BU-OG)	20	CU5T-14474-EB
24	VYB62 (GY-BU)	20	CU5T-14474-EB
25	*	*	N/A
26	*	*	N/A
27	VDB04 (BU)	22	CU5T-14474-EB
28	VDB05 (WH)	22	CU5T-14474-EB
29	VDB04 (BU)	22	CU5T-14474-EB
30	VDB05 (WH)	22	CU5T-14474-EB
31	RE794 (BU)	22	CU5T-14474-EB
32	*	*	N/A
33	*	*	N/A
34	*	*	N/A
35	*	*	N/A
36	*	*	N/A
37	*	*	N/A
38	*	*	N/A
39	*	*	N/A
40	*	*	N/A
41	*	*	N/A
42	*	*	N/A
43	*	*	N/A
44	*	*	N/A
45	*	*	N/A
46	*	*	N/A
47	*	*	N/A
48	*	*	N/A
49	*	*	N/A
50	*	*	N/A
51	*	*	N/A
