Power Transfer Unit Draining and Filling

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Materials

Draining

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting - Overview .
2. Remove the underbody shield. Refer to Engine Front Undershield .
3. Remove the PTU drain plug.

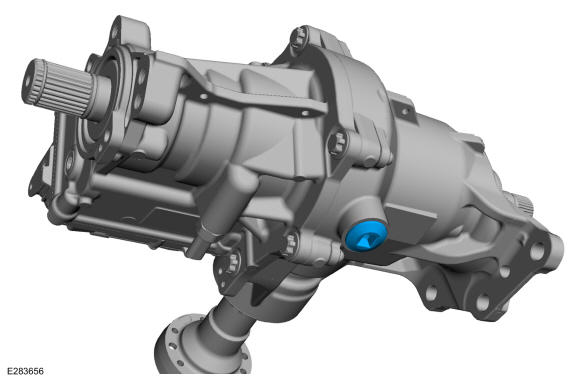

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Ensure drain plug gasket is properly seated and flush inside of drain plug groove. Drain Plug Gasket should not be visible after installation.

   Install the oil drain plug with the new gasket.

   Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

1. Remove the PTU fill plug.

   Courtesy of FORD MOTOR COMPANY

2. Fill the PTU with clean fluid, level with the fill plug opening. Refer to Specifications  .

   Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

   Courtesy of FORD MOTOR COMPANY

3. Install the PTU fill plug.

   Torque: Stage 1: 133 lb.in (15 Nm) | Stage 2: 360°

   Courtesy of FORD MOTOR COMPANY

4. Install the underbody shield. Refer to Engine Front Undershield .
