Fuel Pump Driver Module (FPDM): Removal
WARNING: This page is about a different car, the 2021 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The fuel pump driver module is located beneath the rear seat cushion on the left side.
- Remove the rear seat cushion. Refer to: Rear Seat Cushion

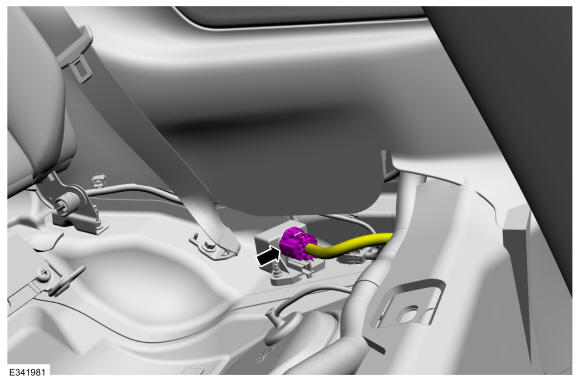

- Disconnect the fuel pump driver module electrical connector.

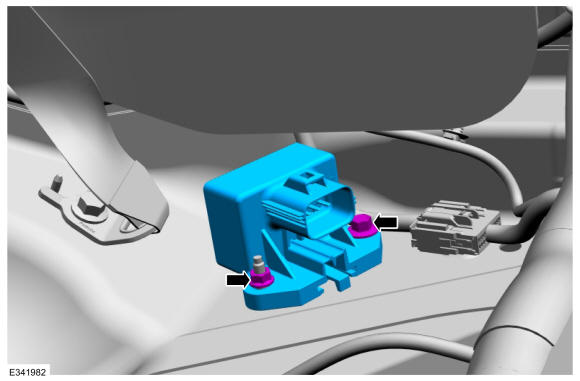

- Remove the fuel pump driver module retainers, then remove the fuel pump driver module.
