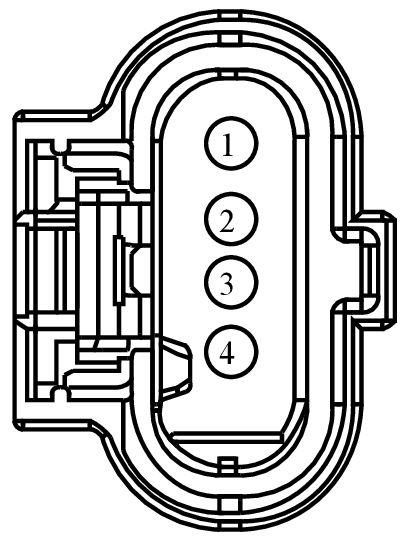

Connector End View (C4474) - EXHAUST TAILPIPE ACTUATOR LH
WARNING: This page is about a different car, the 2021 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4474 | EXHAUST TAILPIPE ACTUATOR LH | 14B599 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-GAB | KU2Z-14474-CA | 1.20 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD348 (*) | 18 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | EU5T-14474-GAB | ||||
| 2 | CE162 (*) | 18 | CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE | EU5T-14474-GAB | ||||
| 3 | CBB34 (*) | 18 | FUSE - 34 OR CIRCUIT BREAKER | EU5T-14474-GAB | ||||
| 4 | VE915 (*) | 18 | VALVE - ACTIVE EXHAUST SOLENOID SINGLE OR LEFT | EU5T-14474-GAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1537
Service Part Number:
JU2Z-14S411-ACA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Module - Differential Oil Temperature
- Module - Particulate Matter Bank Sensor
- Module - Reductant Quality
- Noise Generator
- Sensor - Fuel Rail Pressure and Temperature
- Sensor - Manifold Pressure/Intake Temperature
- Sensor - Turbo Intake Pressure/Temperature
- Valve - Active Exhaust Solenoid
