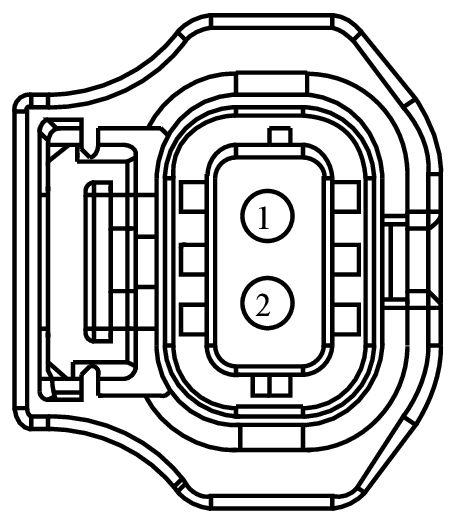

Connector End View (C1924) - OIL PRESSURE CONTROL SOLENOID
WARNING: This page is about a different car, the 2021 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1924 | OIL PRESSURE CONTROL SOLENOID | 12C508 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK03 (GY) | 18 | FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) | N/A | ||||
| 2 | CE358 (GY-YE) | 18 | CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1633
Service Part Number:
LU2Z-14S411-ABA
Gauge:
14
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Solenoid - Variable Oil Pump Control
