Removal And Installation: Turbocharger: Removal

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

NOTE: Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant lines, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the lines to ensure that there are no leaks or repeat repairs.

Drain the cooling system. Refer to Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the air cleaner outlet pipe. Refer to Air Cleaner Outlet Pipe .
Remove the charge air cooler intake pipe. Refer to Charge Air Cooler (CAC) Intake Pipe .
Disconnect the turbocharger control hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

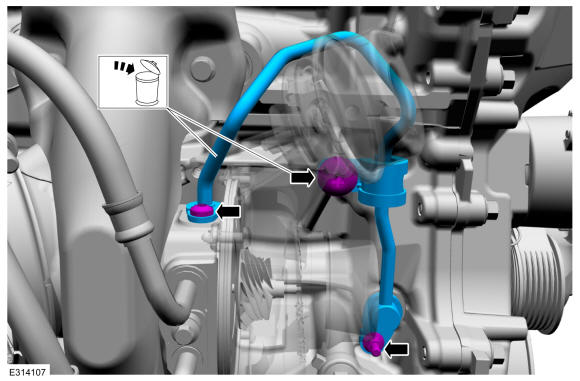

Remove the bolts, then remove and discard turbocharger oil supply tube. Discard the designated bolt.

Courtesy of FORD MOTOR COMPANY
Loosen the turbocharger coolant tube bolt, then disconnect the turbocharger coolant tubes and move them out of the way.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

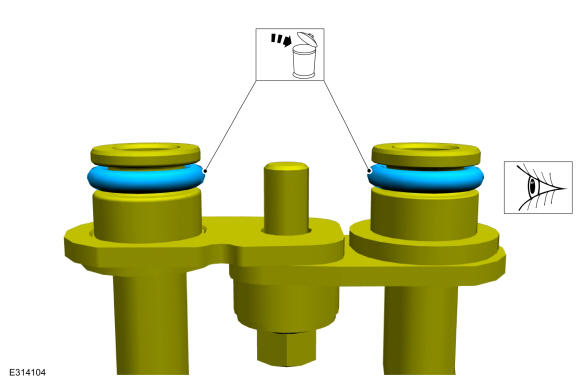

1. Remove and discard the turbocharger coolant tube O-ring seals.
- Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean.
  Material

  : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Courtesy of FORD MOTOR COMPANY

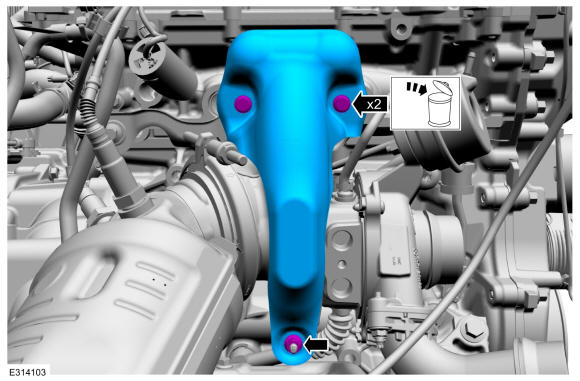

Remove the bolts and the nut, then remove the turbocharger heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the power transfer unit. Refer to Power Transfer Unit .

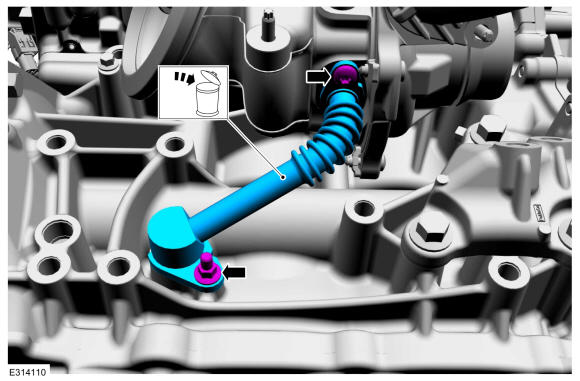

Remove the bolts, then remove and discard the turbocharger oil return tube.

Courtesy of FORD MOTOR COMPANY

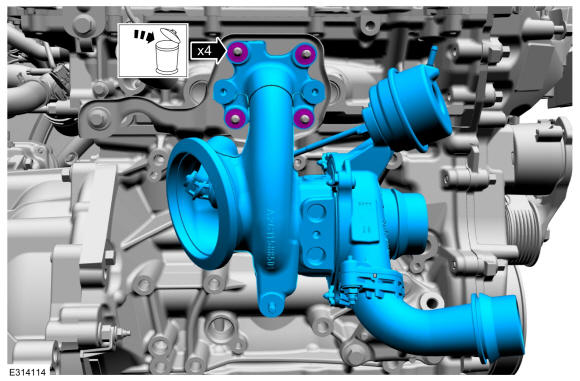

Remove and discard the turbocharger mounting nuts, then remove the turbocharger.

Courtesy of FORD MOTOR COMPANY

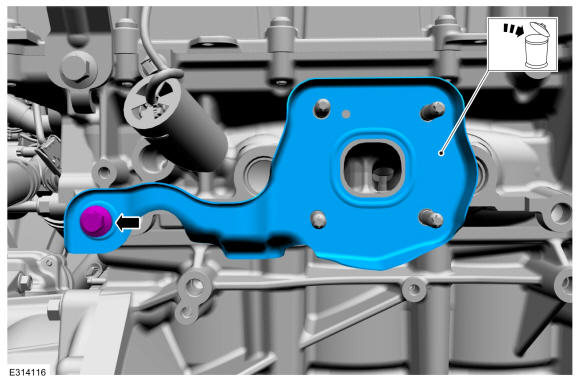

Remove the bolt, then remove and discard the turbocharger gasket.

Courtesy of FORD MOTOR COMPANY

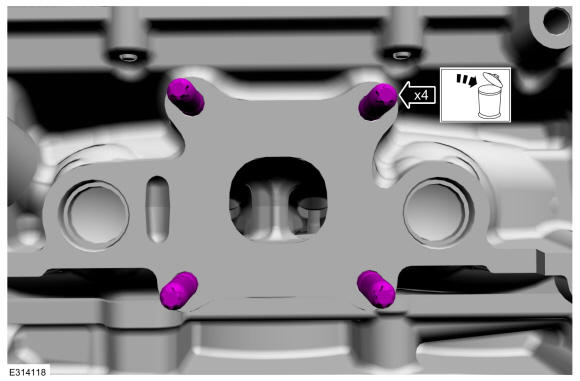

Remove and discard the turbocharger mounting studs.

Courtesy of FORD MOTOR COMPANY
Only if needed, remove the turbocharger elbow adapter nuts, then remove the elbow adapter.

Courtesy of FORD MOTOR COMPANY
Only if needed, remove the turbocharger studs.

Courtesy of FORD MOTOR COMPANY

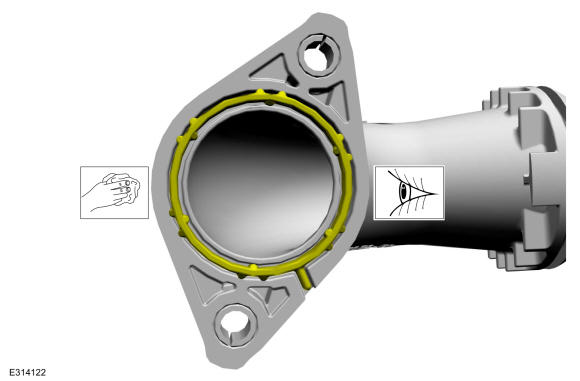

If the turbocharger elbow adapter was removed, then inspect, clean and replace the gasket as needed.

Courtesy of FORD MOTOR COMPANY
