Turbocharger Coolant Supply Tube: Installation

NOTE: Component(s) must be lubricated with clean engine coolant.

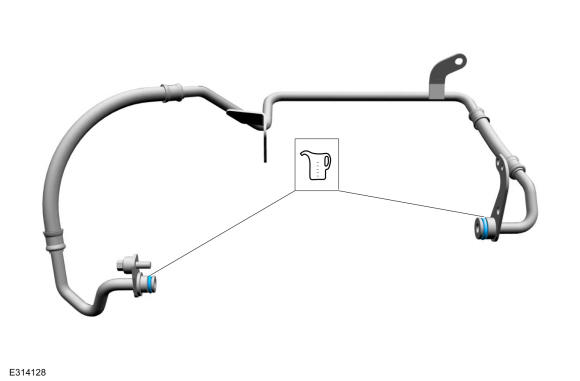

Install the new O-ring seals, then lubricate them with clean engine coolant. Refer to Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore and the engine O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.

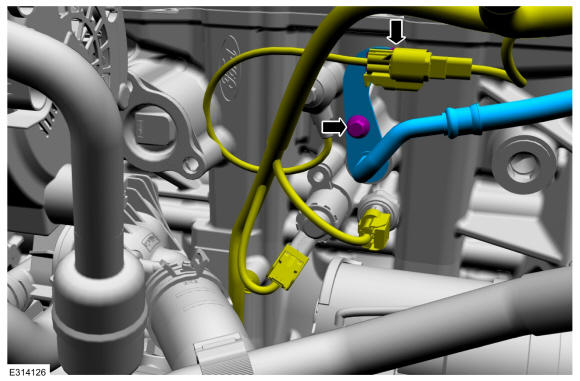

1. Install the turbocharger coolant supply tube, then install and tighten the bolt. Attach the wire connector retainer.
  Material

  : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

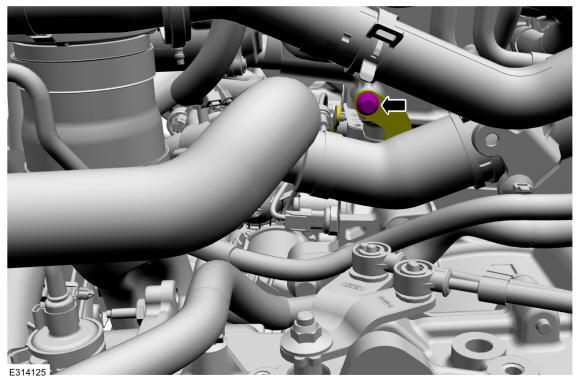

Install and tighten the bracket bolt.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

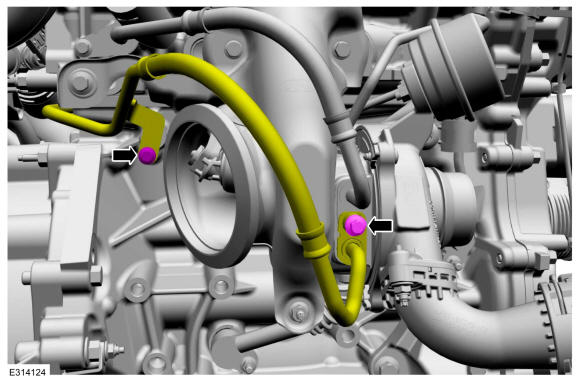

Install the turbocharger coolant supply tube and bolt, then tighten the bolt. Install and tighten the bracket bolt.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the catalytic converter. Refer to Catalytic Converter .
Install the air cleaner. Refer to Air Cleaner .
Install the air cleaner intake pipe. Refer to Air Cleaner Intake Pipe .
Install the air cleaner outlet pipe. Refer to Air Cleaner Outlet Pipe .
Fill and bleed the cooling system. Refer to Engine Cooling System Draining, Vacuum Filling and Bleeding .
