Fuel Charging And Controls - Turbocharger - 1.5L ECOBOOST (132KW/180PS) - I3 (Y1)
>>
Description And Operation
>>
Turbocharger - Component Location
>>

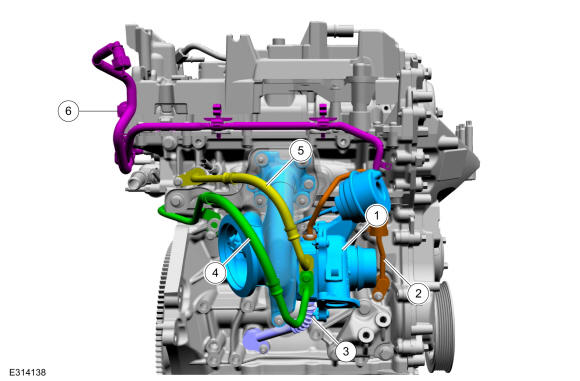

1.5L EcoBoost Turbocharger Components
1.5L EcoBoost Turbocharger Components
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Turbocharger
2
Turbocharger oil supply tube
3
Turbocharger oil return tube
4
Turbocharger coolant supply tube
5
Turbocharger coolant return tube
6
Wastegate control valve solenoid
