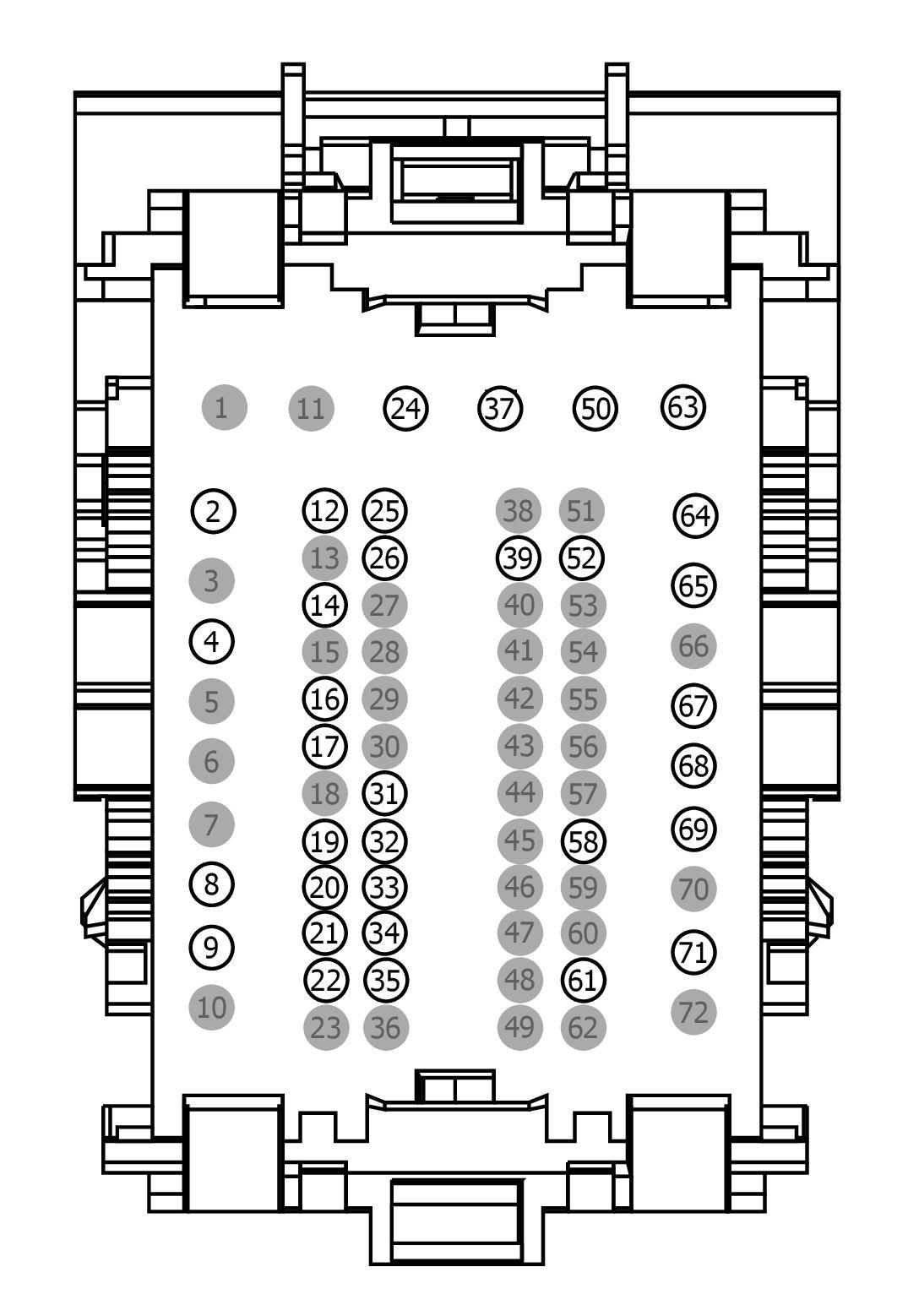

Connector End View C2280D - Body Control Module (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280D	BODY CONTROL MODULE (BCM)		14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6M5T-14474-BAA	Not Available
EU5T-14474-BAA	Not Available
8U5T-14474-BB	DU2Z-14474-CA	0.64
97BG-14474-AAB	DU2Z-14474-DA	1.50
EU5T-14474-FA	EU2Z-14474-AB	2.80

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used		N/A
2	SBP11 (BU-RD)	22	FUSE - 11		97BG-14474-AAB
3	*	*	Not Used		N/A
4	CDC35 (BU-WH)	22	SWITCH - IGNITION # START		6M5T-14474-BAA
5	*	*	Not Used		N/A
6	*	*	Not Used		N/A
7	*	*	Not Used		N/A
8	CCB08 (VT-WH)	22	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN		6M5T-14474-BAA
9	VDN01 (BU-WH)	22	CTRL MOD. - LIN BUS # BCM 1		6M5T-14474-BAA
10	*	*	Not Used		N/A
11	*	*	Not Used		N/A
12	CLS32 (BN-YE)	22	SWITCH - HAZARD		8U5T-14474-BB
13	*	*	Not Used		N/A
14	VLN04 (VT-GY)	20	CTRL MOD. - IP/SWITCH ILLUMINATION		8U5T-14474-BB
15	*	*	Not Used		N/A
16	CE436 (VT-OG)	22	CTRL MOD. -WAKE UP PCM		8U5T-14474-BB
17	CDC74 (BU-GN)	22	CTRL MOD. - KEY INHIBIT		8U5T-14474-BB
18	*	*	Not Used		N/A
19	CRT36 (BU-GY)	22	CTRL MOD. - WIRELESS CHARGING		8U5T-14474-BB
20	CPK36 (VT-BN)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED		8U5T-14474-BB
21	CPK34 (GN-WH)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 +		8U5T-14474-BB
22	CDC30 (BU-GY)	22	SWITCH - IGNITION # KEY IN		8U5T-14474-BB
23	*	*	Not Used		N/A
24	SBP04 (GN-RD)	22	FUSE - 4		EU5T-14474-BAA
25	CPL45 (BN)	22	SWITCH - LIFTGATE/DECKLID RELEASE		8U5T-14474-BB
26	RRH02 (GN-WH)	22	CTRL MOD. - SWITCH HORN		8U5T-14474-BB
27	*	*	Not Used		N/A
28	*	*	Not Used		N/A
29	*	*	Not Used		N/A
30	*	*	Not Used		N/A
31	VDN19 (YE-BU)	22	CTRL MOD. - LIN BUS # BCM 11		8U5T-14474-BB
32	VDN15 (BU-GY)	22	CTRL MOD. - LIN BUS # BCM 7		8U5T-14474-BB
33	VPL56 (BU-GY)	22	RECEIVER - REMOTE RF		8U5T-14474-BB
34	CDC34 (WH-OG)	22	SWITCH - IGNITION # RUN START		8U5T-14474-BB
35	CDC33 (VT-GN)	22	SWITCH - IGNITION # RUN ACCESSORY		8U5T-14474-BB
36	*	*	Not Used		N/A
37	SBP23 (WH-RD)	12	FUSE - 23		EU5T-14474-FA
38	*	*	Not Used		N/A
39	RLF14 (GY-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) -		8U5T-14474-BB
40	*	*	Not Used		N/A
41	*	*	Not Used		N/A
42	*	*	Not Used		N/A
43	*	*	Not Used		N/A
44	*	*	Not Used		N/A
45	*	*	Not Used		N/A
46	*	*	Not Used		N/A
47	*	*	Not Used		N/A
48	*	*	Not Used		N/A
49	*	*	Not Used		N/A
50	SBP17 (RD)	22	FUSE - 17		EU5T-14474-BAA
51	*	*	Not Used		N/A
52	VLF14 (BU-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +		8U5T-14474-BB
53	*	*	Not Used		N/A
54	*	*	Not Used		N/A
55	*	*	Not Used		N/A
56	*	*	Not Used		N/A
57	*	*	Not Used		N/A
58	CLS80 (GY-BU)	22	LAMP - FLOOD # SIGNAL OUT		8U5T-14474-BB
59	*	*	Not Used		N/A
60	*	*	Not Used		N/A
61	CPK35 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +		8U5T-14474-BB
62	*	*	Not Used		N/A
63	SBP10 (YE-RD)	14	FUSE - 10		EU5T-14474-FA
64	SBP21 (GY-RD)	22	FUSE - 21		6M5T-14474-BAA
65	SBP22 (BN-RD)	20	FUSE - 22		6M5T-14474-BAA
66	*	*	Not Used		N/A
67	CBP15 (BN-BU)	22	FUSE - 15 OR CIRCUIT BREAKER		6M5T-14474-BAA
68	CBP09 (VT-GY)	22	FUSE - 9 OR CIRCUIT BREAKER		6M5T-14474-BAA
69	CBP08 (GY-YE)	20	FUSE - 8 OR CIRCUIT BREAKER		6M5T-14474-BAA
70	*	*	Not Used		N/A
71	CBP01 (BU)	22	FUSE - 1 OR CIRCUIT BREAKER		6M5T-14474-BAA
72	*	*	Not Used		N/A
