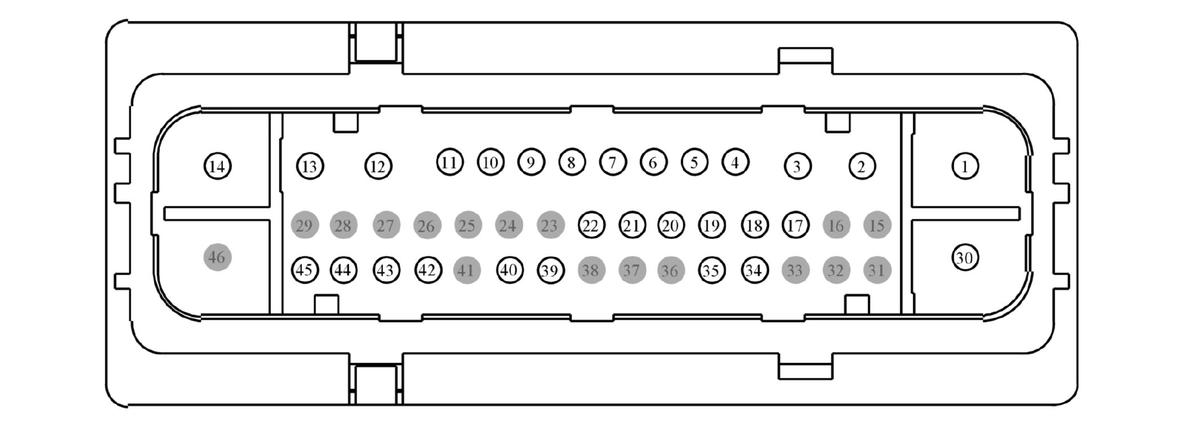

Connector End View C135A - Anti-Lock Brake System (ABS) Module
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C135A | ANTI-LOCK BRAKE SYSTEM (ABS) MODULE | 14290 | part# N/A | See Below |
Pin: 22 - CCB25(BN)-CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 6, Gauge 22
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| CU5T-14474-EB | DU2Z-14474-CA | 0.64 |
| DU5T-14474-TAB | DU2Z-14474-CA | 0.64 |
| 1C1T-14474-AA | KU2Z-14474-AA | 6.30 |
| 97BG-14474-CFA | KU2Z-14474-AA | 6.30 |
| DU5T-14474-LBB | EU2Z-14474-AB | 2.80 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number |
|---|---|---|---|---|---|
| 1 | SBB29 (GY-RD) | 10 | FUSE - 29 OR CIRCUIT BREAKER | 1C1T-14474-AA | |
| 2 | CCB18 (YE-GY) | 12 | CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR RIGHT LOCK (+) | DU5T-14474-LBB | |
| 3 | CCB19 (GN-BN) | 12 | CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-) | DU5T-14474-LBB | |
| 4 | RCA19 (GN-WH) | 20 | CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT | CU5T-14474-EB | |
| 5 | VCA05 (GY-VT) | 20 | SENSOR - WHEEL SPEED RIGHT FRONT | CU5T-14474-EB | |
| 6 | RCA18 (BN-GN) | 22 | CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR | CU5T-14474-EB | |
| 7 | VCA04 (BU-OG) | 22 | SENSOR - WHEEL SPEED LEFT REAR | CU5T-14474-EB | |
| 8 | RCA17 (YE) | 20 | CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT | CU5T-14474-EB | |
| 9 | VCA03 (VT-WH) | 20 | SENSOR - WHEEL SPEED LEFT FRONT | CU5T-14474-EB | |
| 10 | RCA20 (BN) | 22 | CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR | CU5T-14474-EB | |
| 11 | VCA06 (WH-OG) | 22 | SENSOR - WHEEL SPEED RIGHT REAR | CU5T-14474-EB | |
| 12 | CCB17 (BU-GN) | 12 | CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT UNLOCK (-) | DU5T-14474-LBB | |
| 13 | CCB16 (WH-VT) | 12 | CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT LOCK (+) | DU5T-14474-LBB | |
| 14 | GD121 (BK-YE) | 10 | GROUND - FENDER FRONT LEFT # 2ND POINT | 1C1T-14474-AA | |
| 15 | * | * | Not Used | N/A | |
| 16 | * | * | Not Used | N/A | |
| 17 | CCB20 (BU-WH) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 1 | CU5T-14474-EB | |
| 18 | CCB21 (GN-VT) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 2 | CU5T-14474-EB | |
| 19 | CCB22 (WH-BN) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 3 | CU5T-14474-EB | |
| 20 | CCB23 (VT-GN) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 4 | CU5T-14474-EB | |
| 21 | CCB24 (WH-OG) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 5 | CU5T-14474-EB | |
| 22 | CCB25 (BN) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 6 | CU5T-14474-EB | |
| 23 | * | * | Not Used | N/A | |
| 24 | * | * | Not Used | N/A | |
| 25 | * | * | Not Used | N/A | |
| 26 | * | * | Not Used | N/A | |
| 27 | * | * | Not Used | N/A | |
| 28 | * | * | Not Used | N/A | |
| 29 | * | * | Not Used | N/A | |
| 30 | SBB28 (GN-RD) | 10 | FUSE - 28 OR CIRCUIT BREAKER | 97BG-14474-CFA | |
| 31 | * | * | Not Used | N/A | |
| 32 | * | * | Not Used | N/A | |
| 33 | * | * | Not Used | N/A | |
| 34 | VCA38 (BN) | 22 | SENSOR - BRAKE VACUUM SIGNAL 1 | CU5T-14474-EB | |
| 35 | CBB23 (BN-YE) | 20 | FUSE - 23 OR CIRCUIT BREAKER | CU5T-14474-EB | |
| 36 | * | * | Not Used | N/A | |
| 37 | * | * | Not Used | N/A | |
| 38 | * | * | Not Used | N/A | |
| 39 | CMC19 (GY-VT) | 20 | SWITCH - LOW LEVEL BRAKE FLUID | CU5T-14474-EB | |
| 40 | LCA37 (YE-OG) | 22 | CTRL MOD. - SENSOR BRAKE VACUUM + | CU5T-14474-EB | |
| 41 | * | * | Not Used | N/A | |
| 42 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | DU5T-14474-TAB | |
| 43 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | DU5T-14474-TAB | |
| 44 | RMC19 (YE-GY) | 20 | SWITCH - LOW LEVEL BRAKE FLUID | CU5T-14474-EB | |
| 45 | RCA37 (WH-BU) | 22 | CTRL MOD. - SENSOR BRAKE VACUUM - | CU5T-14474-EB | |
| 46 | * | * | Not Used | N/A |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1603
Service Part Number:
KU2Z-14S411-NA
Gauge:
12 14 20
Pin material:
Tin
Cavities:
46
Vehicle Uses:
- Module - Anti-Lock Brake System
