Brake Master Cylinder - Vehicles With: Vacuum Brake Booster: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Remove the battery. Refer to Battery .

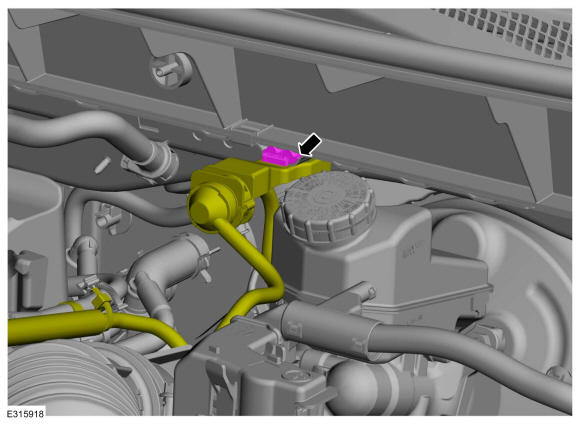

Detach the brake booster tube from dash panel and position aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

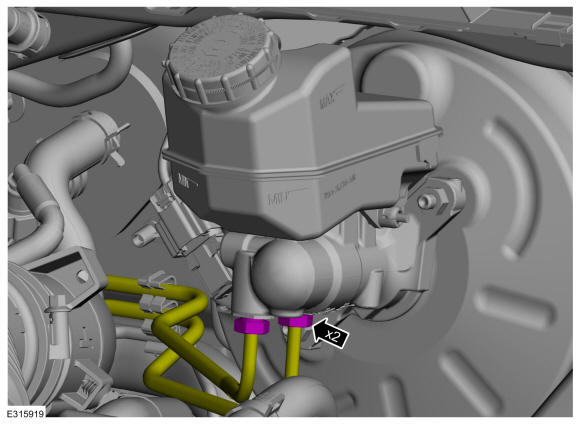

If equipped. Disconnect the brake tube fittings.

Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

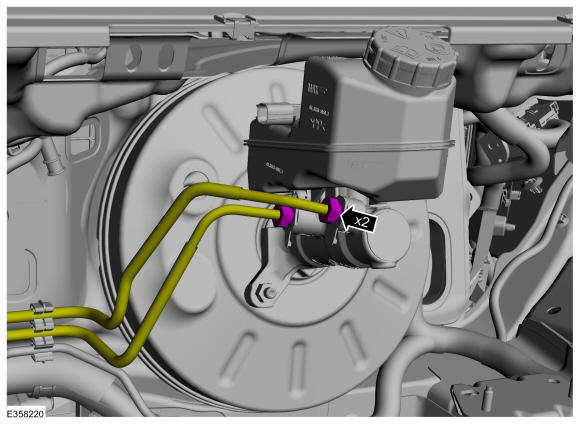

If equipped. Disconnect the brake tube fittings.

Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

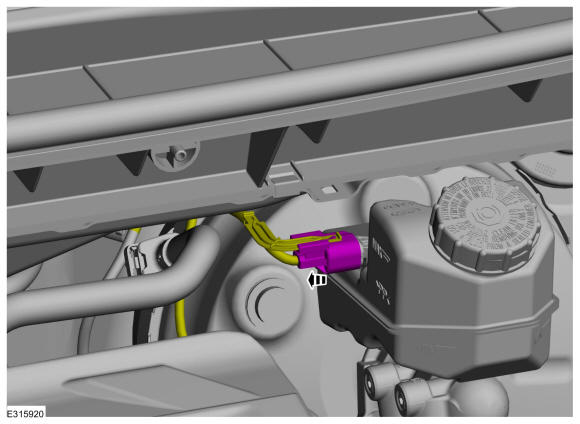

Disconnect the brake fluid level sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

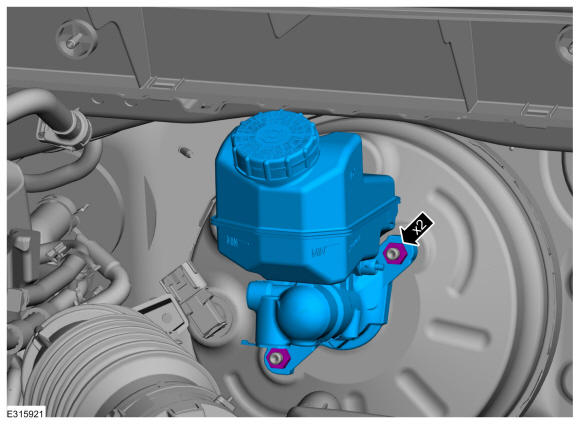

Remove the nuts and the brake master cylinder.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
