Brake Fluid Reservoir - Vehicles With: Vacuum Brake Booster: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake master cylinder. Refer to Brake Master Cylinder - Vehicles With: Vacuum Brake Booster .

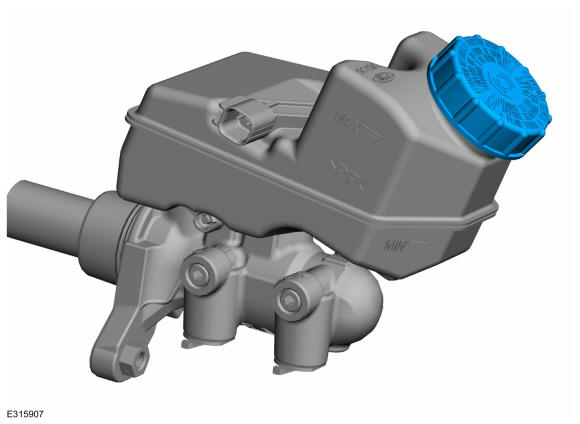

Remove the brake fluid reservoir cap and siphon the brake fluid.

Courtesy of FORD MOTOR COMPANY

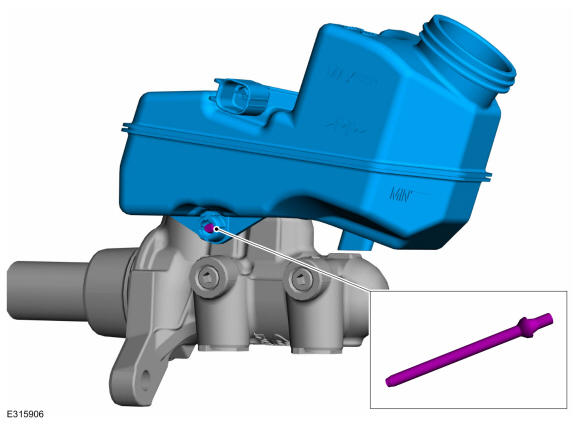

Remove the pin and the brake fluid reservoir.

Courtesy of FORD MOTOR COMPANY

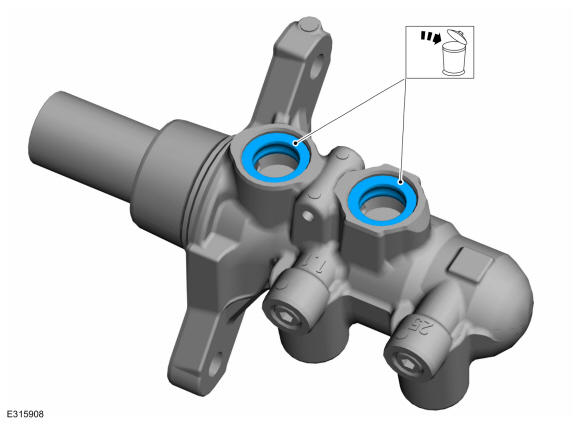

Remove and discard the brake fluid reservoir seals.

Courtesy of FORD MOTOR COMPANY
