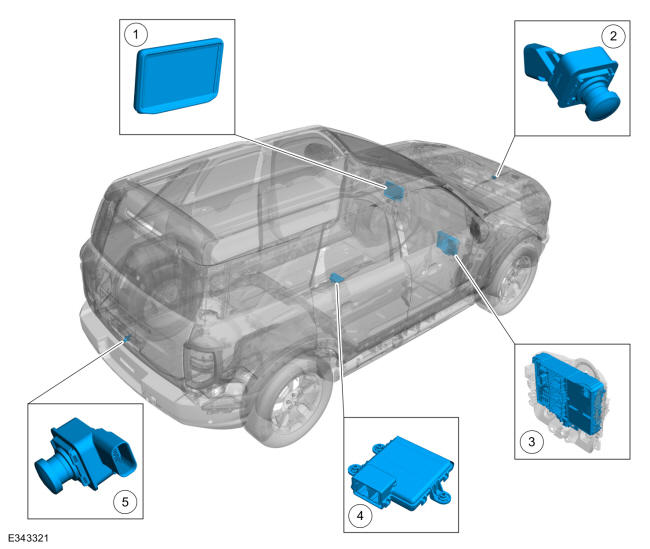

Parking Aid - Component Location
Parking Aid - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Audio system display
2
Front parking aid camera
3
BCM
4
IPMB
5
Rear parking aid camera
Camera selection switch (not shown it is integrated into the audio system display)
