Connector End View C124 - LOW BRAKE FLUID WARNING INDICATOR SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C124	LOW BRAKE FLUID WARNING INDICATOR SWITCH	14290			part# N/A	See Below

Pin: 1 - CMC19(GY-VT)-SWITCH - LOW LEVEL BRAKE FLUID, Gauge 20

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8V5T-14474-RA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID	8V5T-14474-RA
2	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT	8V5T-14474-RA

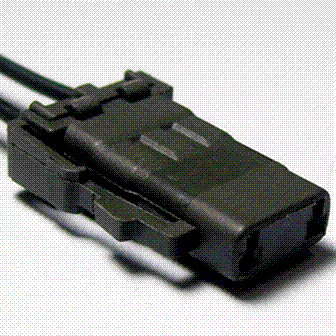

Available Pigtail Kits

Pigtail Kit Part Number WPT-1385

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-APA

Gauge:

20

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Sensor - Brake Fluid Level
