Brake Master Cylinder - Vehicles With: Vacuum Brake Booster: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

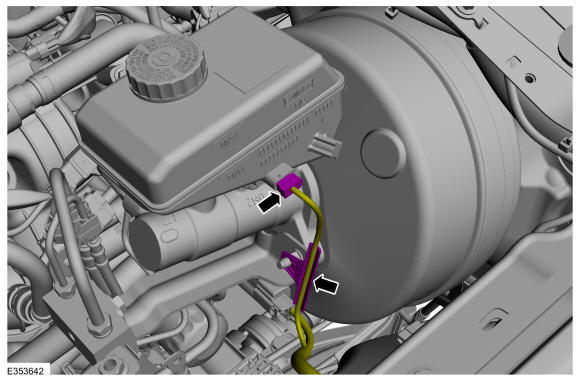

Disconnect the brake fluid level sensor electrical connector and detach the wiring harness from the brake master cylinder.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

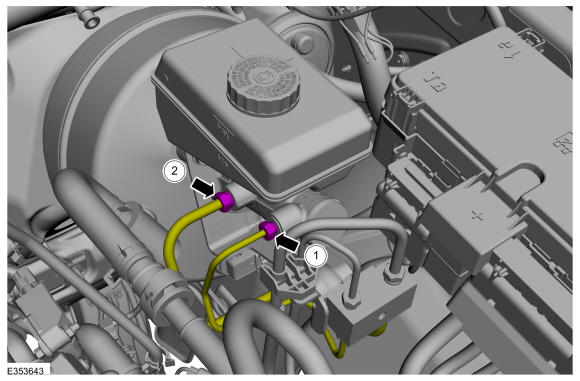

Disconnect the brake tube fittings.

Torque:

Torque 1: 159 lb.in (18 Nm)

Torque 2: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

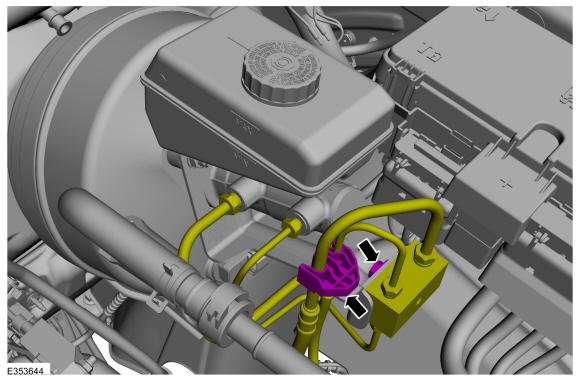

Remove the nut, retainer and position aside the brake tubes.
Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

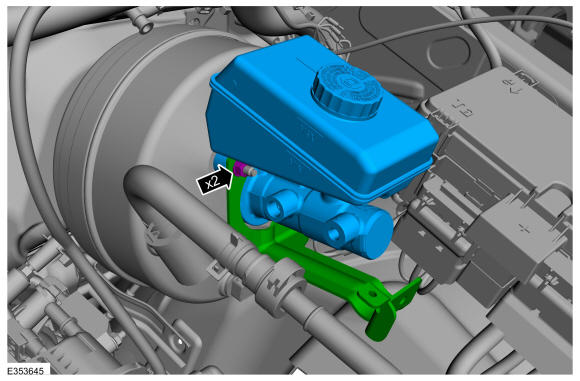

Remove the nuts, brake hose bracket and brake master cylinder.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
