Brake Fluid Reservoir - Vehicles With: Vacuum Brake Booster: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake master cylinder. Refer to: Brake Master Cylinder - Vehicles With: Vacuum Brake Booster .

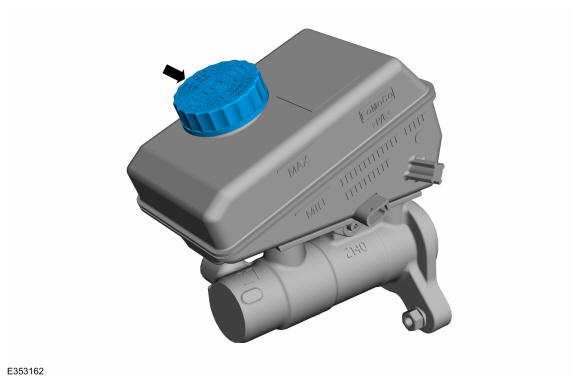

2. Remove the brake fluid reservoir cap and siphon the brake fluid.

   Courtesy of FORD MOTOR COMPANY

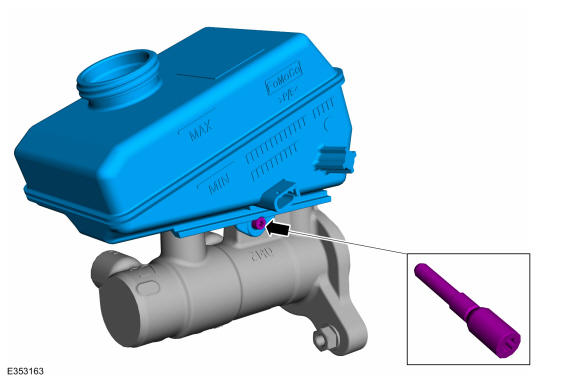

3. Remove the screw and the brake fluid reservoir.

   Torque

   : 62 lb.in (7 Nm)

   Courtesy of FORD MOTOR COMPANY

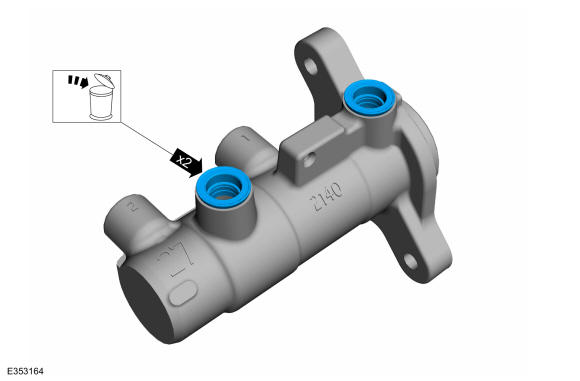

4. Remove and discard the brake fluid reservoir seals.

Courtesy of FORD MOTOR COMPANY
