Brake System Pressure Bleeding - Vehicles With: Vacuum Brake Booster

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Brake/Clutch System Pressure Bleeder/Filler
Fluid Container

Bleeding

All vehicles

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

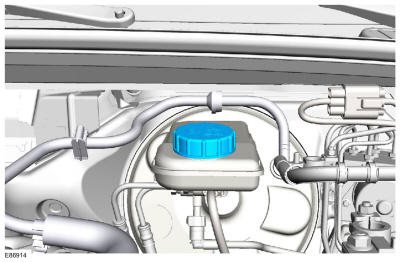

Remove the brake fluid reservoir cap.

Courtesy of FORD MOTOR COMPANY

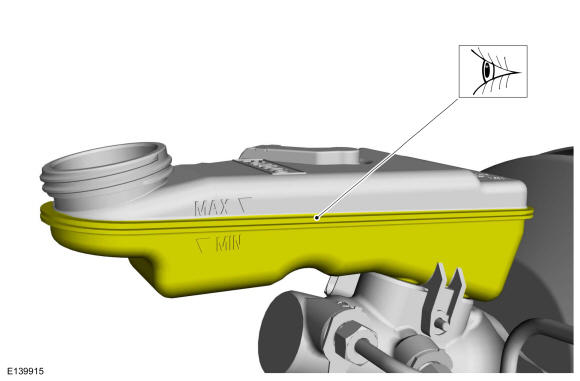

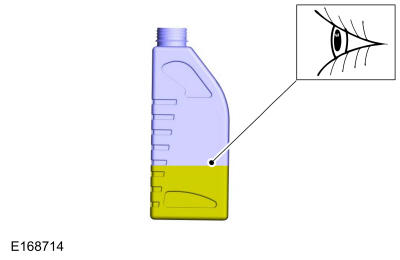

Make sure the fluid reservoir is filled with clean specified brake fluid. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
1. NOTE: Master cylinder pressure bleeder adapter tools are available from various manufacturers of pressure bleeding equipment. Follow the instructions of the manufacturer when installing the adapter.

  Install the bleeder adapter to the brake master cylinder reservoir and attach the bleeder tank hose to the fitting on the adapter. Use the General Equipment: Brake/Clutch System Pressure Bleeder/Filler
2. NOTE: Make sure the bleeder tank contains enough clean, specified brake fluid to complete the bleeding operation.

  Open the valve on the bleeder tank and apply 207-345 kPa (30-50 psi) to the brake system.
Refer to: Jacking and Lifting .
Bleeding steps must be followed in the order indicated in the graphic.

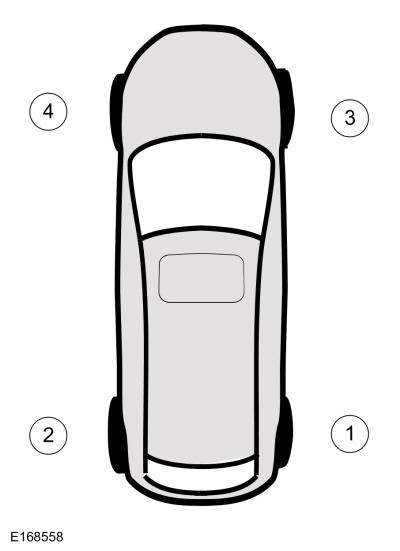

Fig 1: Bleeding Sequence
Courtesy of FORD MOTOR COMPANY

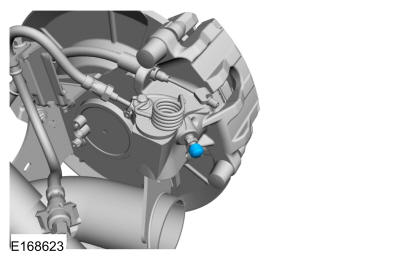

If equipped, Remove the bleeder screw cap.

Courtesy of FORD MOTOR COMPANY
Partially fill a clean brake fluid container with clean specified brake fluid. Refer to: Specifications . Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY

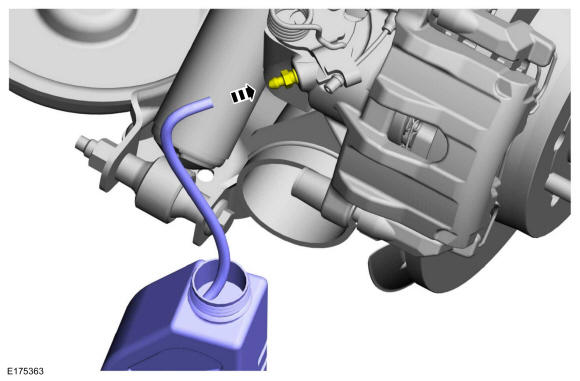

Submerge a hose into the brake fluid in the container and connect the hose to bleeder screw.

Courtesy of FORD MOTOR COMPANY

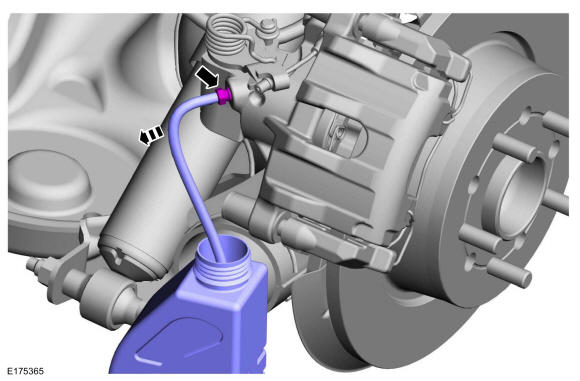

1. Loosen the bleeder screw.
  Loosen:180°

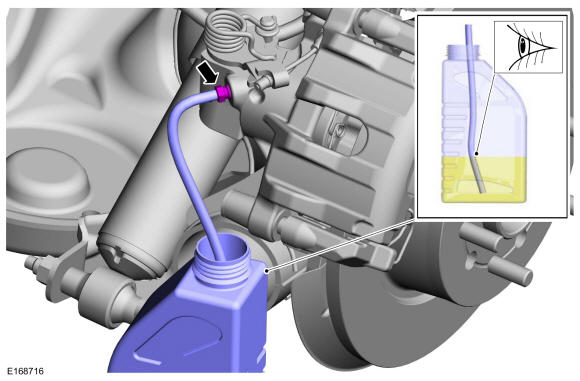

2. Leave open until clear, bubble-free brake fluid flows, then tighten the bleeder screw.
Courtesy of FORD MOTOR COMPANY

Vehicles with rear integral parking brake calipers

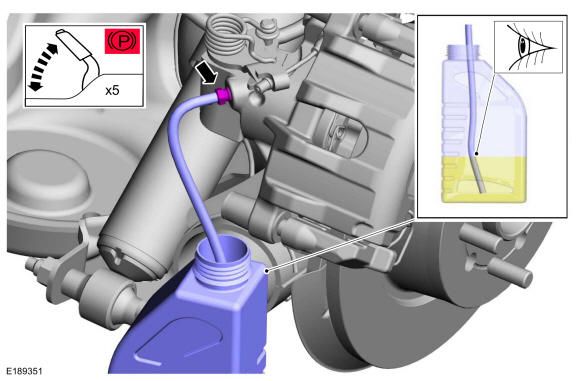

NOTE: Due to the complexity of the fluid path within the rear integral parking brake calipers, it is necessary to apply and release the parking brake during the bleed procedure.
1. Apply and release the parking brake 5 times.
2. Loosen: 180°
3. Leave open until clear, bubble-free fluid flows and then tighten the bleeder screw.
4. Repeat as necessary.
Courtesy of FORD MOTOR COMPANY

All vehicles
Courtesy of FORD MOTOR COMPANY
1. Tighten the bleeder screw to specification. Refer to: Specifications .
If equipped, Install the bleeder screw cap.

Courtesy of FORD MOTOR COMPANY
Go to step 7 and repeat the bleeding steps at the remaining wheel ends.
Lower the vehicle.
Close the bleeder tank valve and release the pressure. Remove the General Equipment: Brake/Clutch System Pressure Bleeder/Filler
Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Install the brake fluid reservoir cap.

Courtesy of FORD MOTOR COMPANY
Apply the brake pedal several times to verify correct brake system operation.
