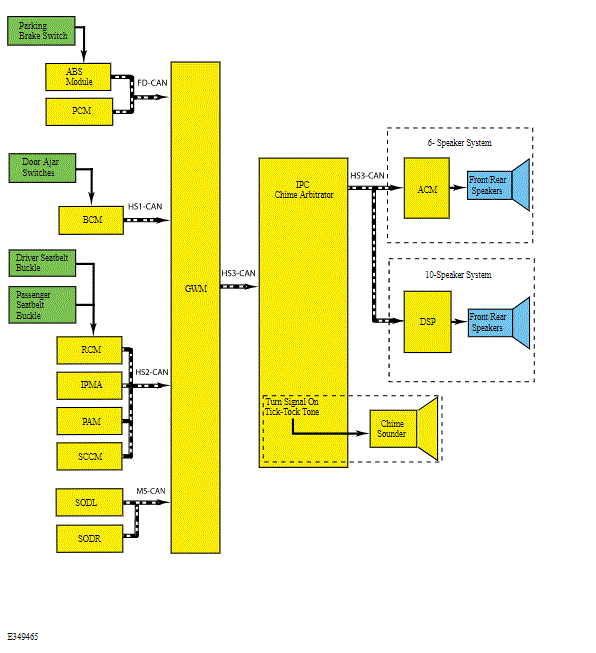

System Diagram

Courtesy of FORD MOTOR COMPANY

Network Message Chart - Warning Chimes

The IPC uses multiple network messages to control the overall warning chime arbitrator. The IPC arbitrates and controls all chimes regardless if they are sounded through the audio system or the IPC. The warning chimes all sound through the audio system except for the turn signal tick-tock chime which is sounded through the IPC. In the event of an audio system fault, the IPC sounds all chimes. The audio system has the ability to sound up to 2 chimes at a time while the IPC can only sound a single chime at a time.

The warning chimes use volume, chime frequency, length of time the chime sounds, length of off time between chime tones, decay of the chime tone and the number of chime tones to identify which chime is sounding. Most warning chimes have unique characteristics, however, there are chimes that do sound the same. The chime characteristics are defined by the different chime types:

• Information
• Soft-warning
• Hard-warning
• Tick-tock (on-off)

The IPC receives messaged inputs from other modules on the CAN, unless the chime is controlled exclusively by the IPC. The IPC communicates on the HS-CAN3. If the originating module communicates on a network other than the HS-CAN3, the messaged signals are sent to the GWM first, then to the IPC.
