Turbocharger RH: Removal

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
NOTE: Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant lines, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the lines to ensure that there are no leaks or repeat repairs.
  1. If equipped, remove the engine rear undershield. Refer to: Engine Rear Undershield .
  2. If equipped, remove the engine front undershield. Refer to: Engine Front Undershield .
  3. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  4. Remove the left and the right front fender splash shields. Refer to: Fender Splash Shield .
  5. Remove the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .
  6. Remove the air cleaner. Refer to: Air Cleaner .
  7. Remove the turbocharger outlet pipe RH. Refer to: Turbocharger Outlet Pipe RH .
  8. Detach the hose retainer and move the hose out of the way.
    GFD625517Courtesy of FORD MOTOR COMPANY

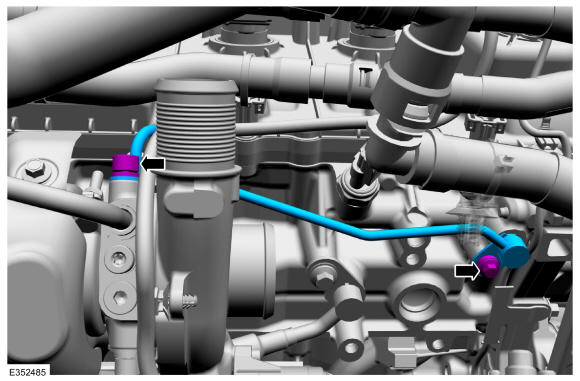

  9. Remove the turbocharger oil supply tube bolts, then remove the turbocharger oil supply tube.
    GFD625520Courtesy of FORD MOTOR COMPANY
    1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. Remove and discard the O-ring seals and the turbocharger oil supply tube oil filter.
    GFD625494Courtesy of FORD MOTOR COMPANY
  11. Remove and discard the LH turbocharger exhaust flange nuts.
    GFD625485Courtesy of FORD MOTOR COMPANY
  12. Remove and discard the RH turbocharger exhaust flange nuts.
    GFD625486Courtesy of FORD MOTOR COMPANY
  13. Remove and discard the LH turbocharger exhaust flange gasket.
    GFD625487Courtesy of FORD MOTOR COMPANY
  14. Remove and discard the RH turbocharger exhaust flange gasket.
    GFD625488Courtesy of FORD MOTOR COMPANY
  15. Remove the turbocharger coolant return tube bolt, then disconnect the turbocharger coolant return tube from the turbocharger and position it out of the way.
    GFD625521Courtesy of FORD MOTOR COMPANY
    1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. Remove and discard the O-ring seal.
    GFD625473Courtesy of FORD MOTOR COMPANY
  17. Detach the wire harness retainers, then disconnect the electrical connector.
    GFD625522Courtesy of FORD MOTOR COMPANY
  18. Remove the starter motor. Refer to: Starter Motor .
  19. Remove the turbocharger oil return tube bolts, then remove the tube.
    GFD625514Courtesy of FORD MOTOR COMPANY
    1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    3. Remove and discard the O-ring seal.
    GFD624948Courtesy of FORD MOTOR COMPANY
  21. Remove and discard the turbocharger oil return tube gasket.
    GFD624946Courtesy of FORD MOTOR COMPANY
  22. Remove the turbocharger coolant supply tube bolt.
    GFD625523Courtesy of FORD MOTOR COMPANY
    1. Remove the turbocharger coolant supply tube from the engine block while removing the turbocharger.

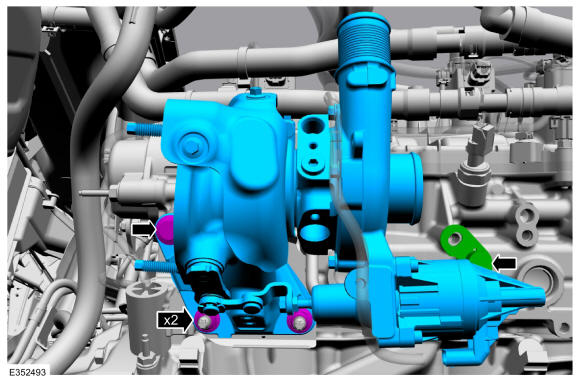

    2. Remove the turbocharger retainers, then remove the turbocharger.
    GFD625524Courtesy of FORD MOTOR COMPANY
    1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. Remove and discard the O-ring seal.
    GFD625473Courtesy of FORD MOTOR COMPANY

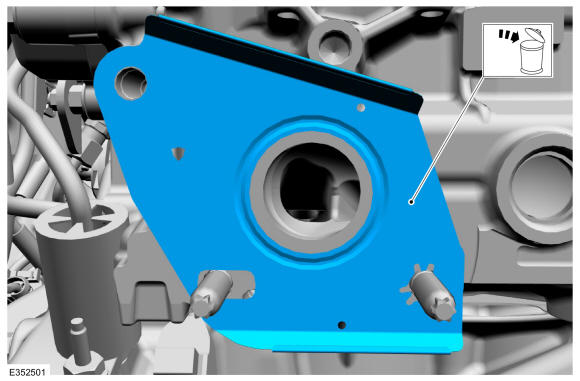

  25. Remove and discard the turbocharger gasket.
    GFD625525Courtesy of FORD MOTOR COMPANY
  26. Only if needed, remove the turbocharger mounting studs.
    GFD625526Courtesy of FORD MOTOR COMPANY
  27. Only if needed, remove the turbocharger exhaust flange studs.
    GFD625527Courtesy of FORD MOTOR COMPANY
  28. Only if needed, remove the bolt, then remove the turbocharger coolant supply tube.
    GFD625481Courtesy of FORD MOTOR COMPANY
    1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      If Removed, inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. If the turbocharger coolant supply tube was removed from the turbocharger, then remove and discard the O-ring seal.
    GFD625473Courtesy of FORD MOTOR COMPANY
  30. NOTE: If the 2 piece turbocharger cooling tubes are separated or the rubber gasket is leaking, then the rubber gasket must be replaced.

    If needed, then remove and discard the rubber gasket.

    GFD625478Courtesy of FORD MOTOR COMPANY
  31. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

    If needed, inspect and clean the turbocharger cooling tube sealing surfaces, using brake cleaner and a nylon brush to clean. Install new components as needed.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

GFD625479Courtesy of FORD MOTOR COMPANY
