Turbocharger Oil Supply Tube RH: Installation
-
NOTE: A new turbocharger oil supply tube filter must be installed. Failure to install a new filter will cause turbocharger failure.
Install the new O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the new O-ring seals with clean engine oil. Refer to: Specifications .
-
NOTE: When installing the turbocharger oil supply tube into the engine block, use care not to damage the new turbocharger oil supply tube oil filter.
-
NOTE: Do not use a metal brush; damage to sealing area will result in leaks.
Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Install new components as needed.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

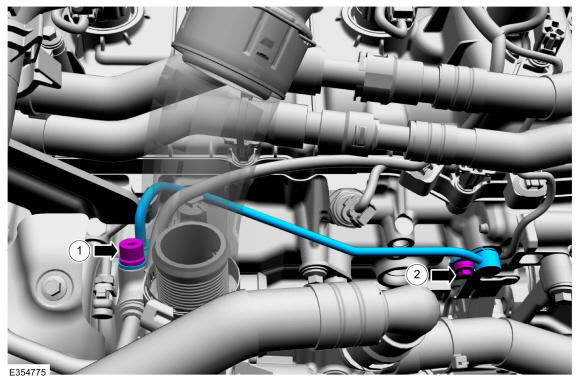

- Install the turbocharger oil supply tube, then install and tighten the turbocharger oil supply tube bolts.
Torque: Tighten 1 to: : 89 lb.in (10 Nm) Tighten 2 to: : 18 lb.ft (24 Nm)
-
- Attach the hose retainer.
- Install the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .
- Install the right front fender splash shield. Refer to: Fender Splash Shield .
- Check and top off the engine oil level as needed. Refer to: Specifications .
