Turbocharger Oil Supply Tube LH: Installation

NOTE: A new turbocharger oil supply tube filter must be installed. Failure to install a new filter will cause turbocharger failure.

Install the new O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the new O-ring seals with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
1. NOTE: Do not use a metal brush; damage to sealing area will result in leaks.

  Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Install new components as needed.

  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
2. Install the turbocharger oil supply tube, then loosely install the bolt.
Courtesy of FORD MOTOR COMPANY
Connect the turbocharger oil supply tube to the turbocharger, then install and tighten the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the turbocharger oil supply tube bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new EGR tube gaskets.

Courtesy of FORD MOTOR COMPANY

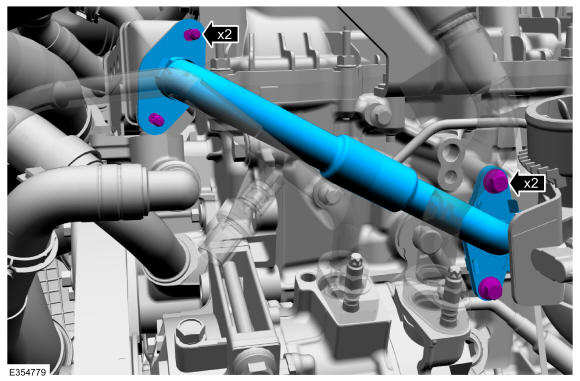

- Install the EGR tube, then install the studs and the bolts finger tight.
- Tighten the EGR tube bolts.
  Torque: 89 lb.in (10 Nm)
- Tighten the EGR tube studs.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

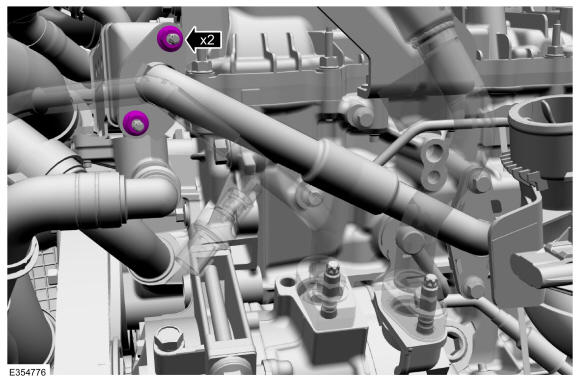

Install and tighten the EGR tube nuts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
Install the left front fender splash shield. Refer to: Fender Splash Shield .
Check and top off the engine oil level as needed. Refer to: Specifications .
